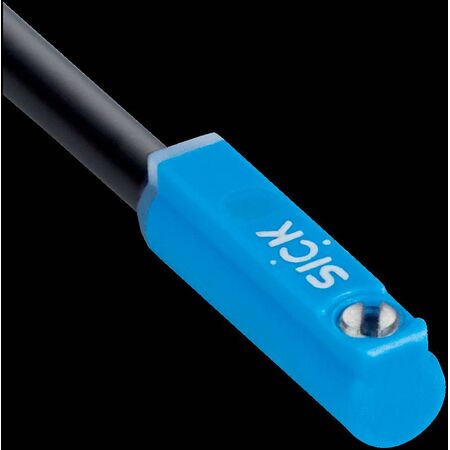

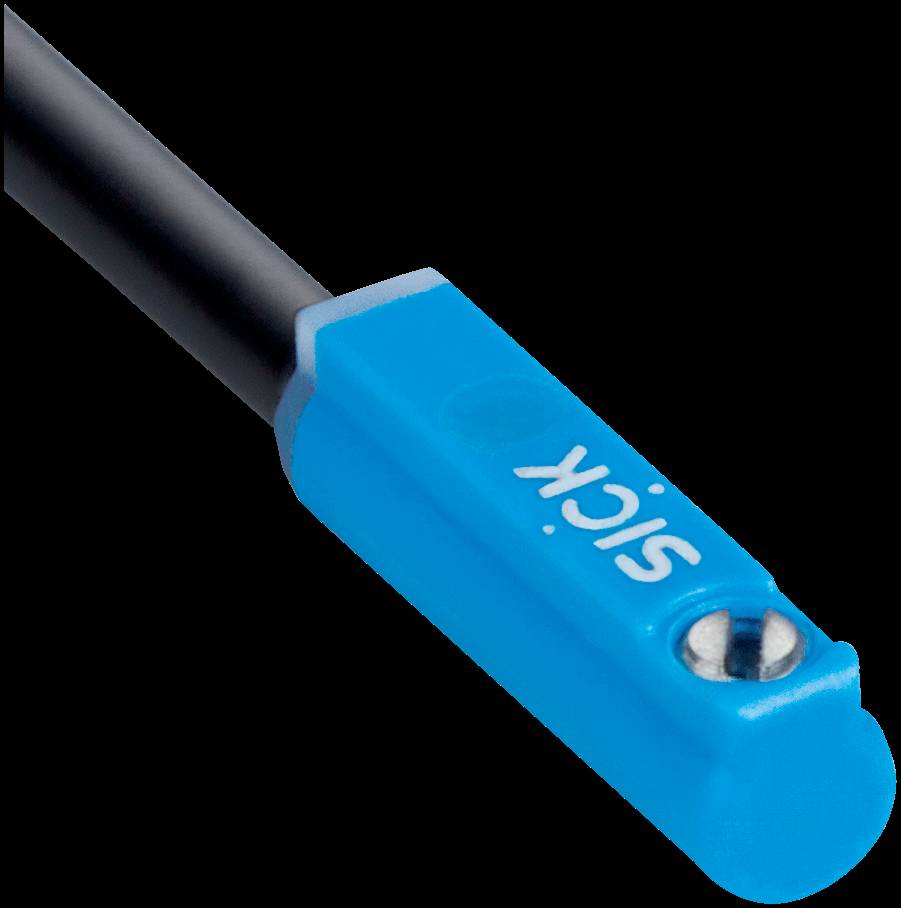

Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | PNP Output | by SICK
The Magnetic Cylinder Sensor MZCS is designed for precise position detection in pneumatic cylinders and compact actuators. With a very short housing of just 15 mm and an IP67 enclosure rating, it’s perfect for applications in automotive, machine building, and consumer electronics. The slide-in mounting allows for easy installation, making it ideal for professionals seeking reliable performance in miniature cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | PNP Output | by SICK
Brand: SICK
SKU: 1142922
Alternatively Known As: Magnetic Cylinder Sensor, Pneumatic Cylinder Position Sensor, Compact Cylinder Sensor, C-slot Cylinder Sensor
Technical Specifications
- Switching output: PNP
- Connection type: Cable, 3-wire, stripped
- Cable length: 0.5 m
- Housing length: 15 mm
- Enclosure rating: IP67
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) for use in miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct sensor positioning and reliable operation.
Applications
- Automotive industry
- Machine building
- Materials industry
- Consumer goods and electronics sectors
- Position detection in pneumatic cylinders and compact actuators
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 housing extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for use in pneumatic cylinders and compact actuators requiring precise position detection.
