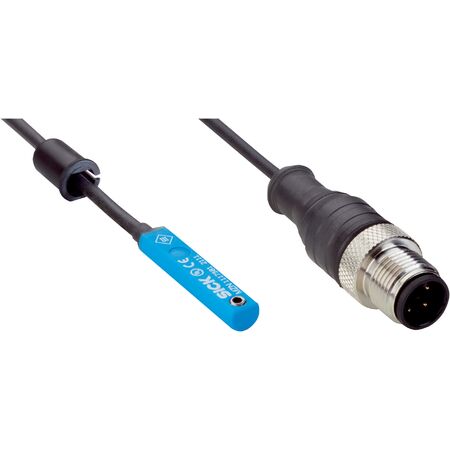

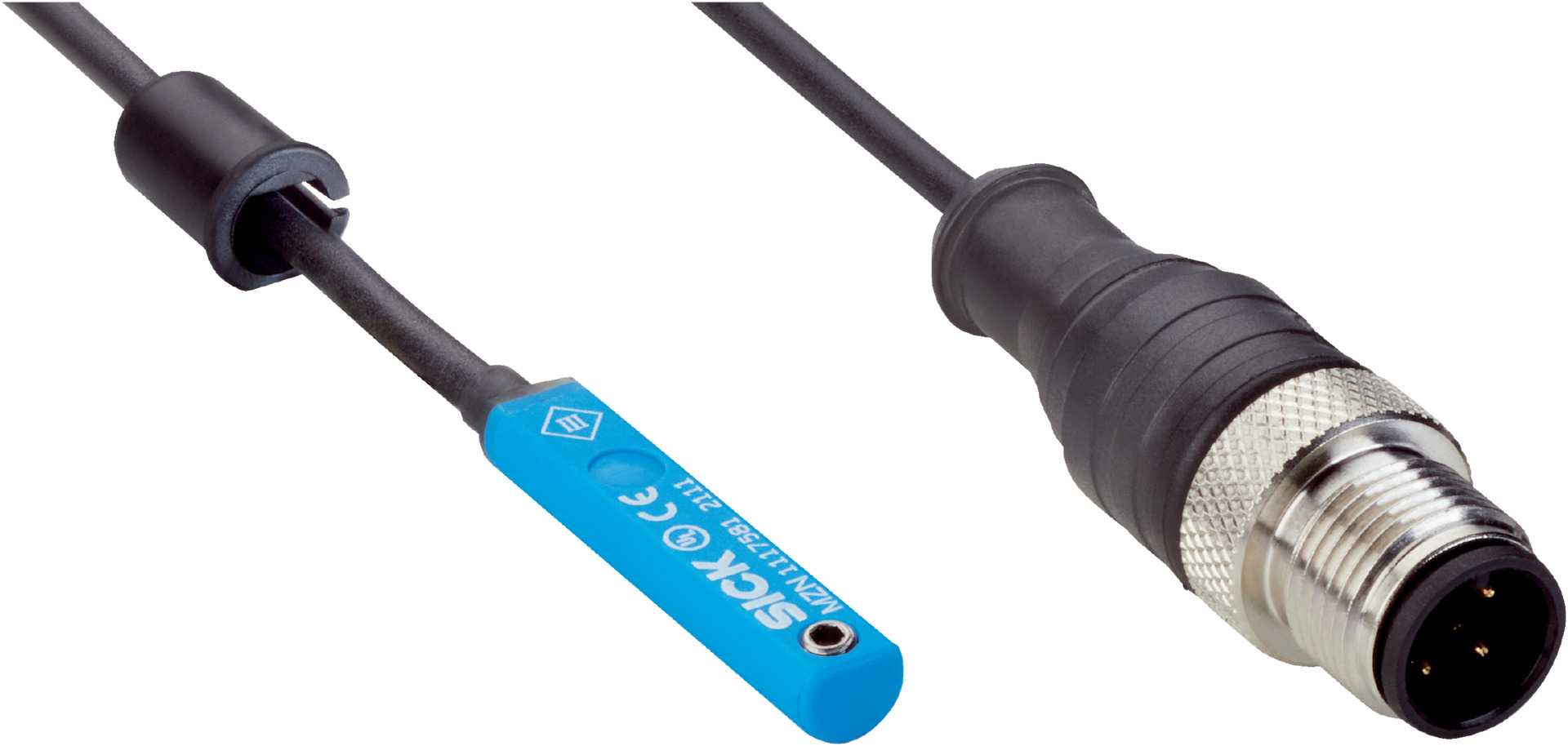

Magnetic Cylinder Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in industrial automation, featuring a PNP switching output and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for factory automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: IMI Norgren slot
- Compatible with round body cylinders using adapter
- Housing length: 29.5 mm
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Ambient operating temperature: -40 °C to +80 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- EMC compliant with EN 60947-5-2
- Connection: Cable with M12 3-pin connector, axial outlet
- Cable diameter: 2.9 mm
- Cable material: PUR
- Housing material: Plastic
- Mounting clip included
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- IP67 rated enclosure for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Robust mechanical design with shock and vibration resistance
- Cable with M12 3-pin connector and axial outlet
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on pneumatic cylinders
- Factory automation systems requiring reliable magnetic sensing
- Robotics and machinery with round body cylinders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 10 mA minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZN-03VPS-KQ0 Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and machinery requiring precise position sensing.
