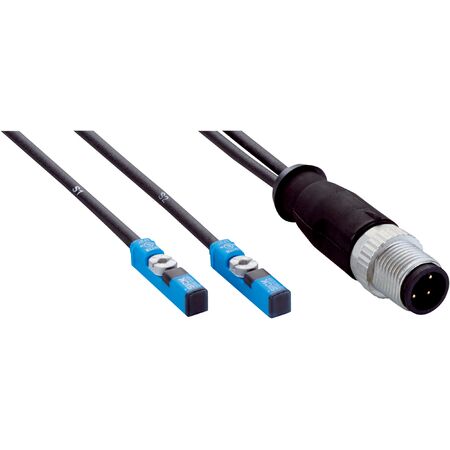

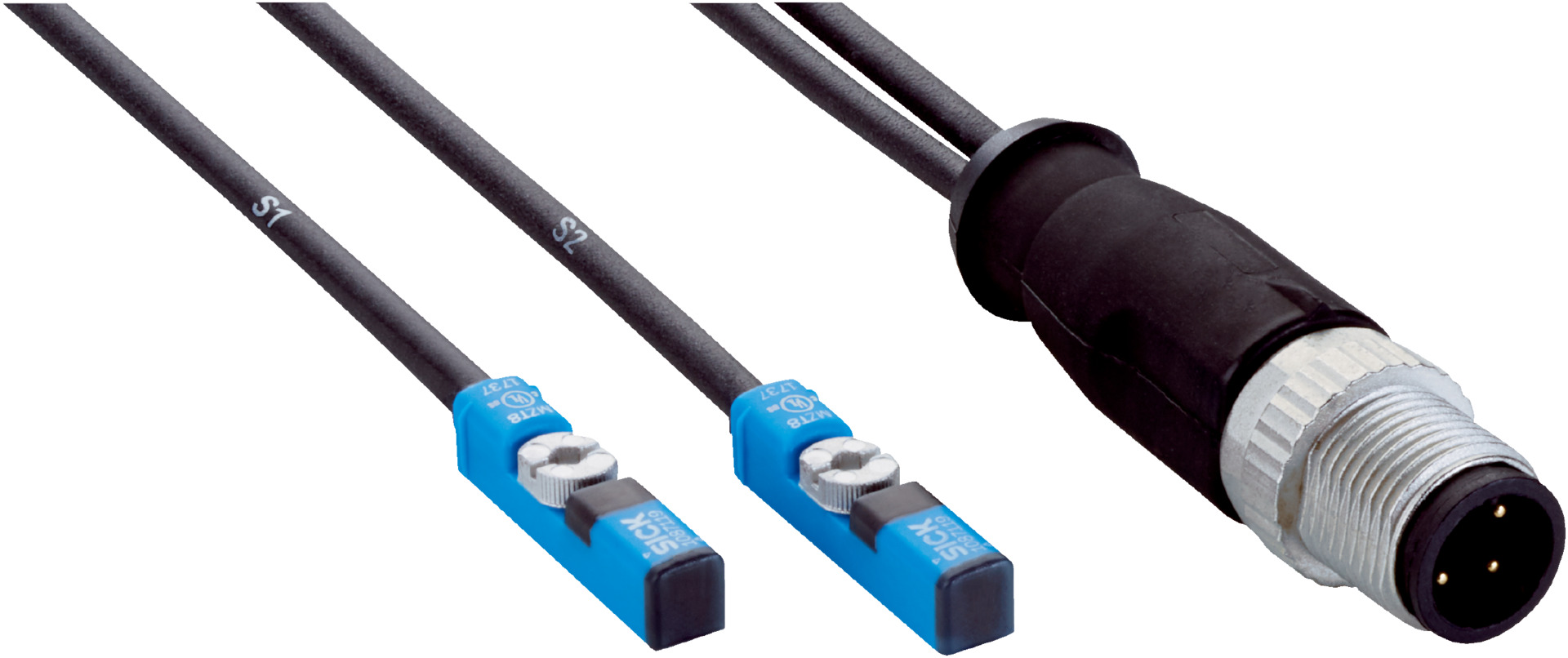

Magnetic Cylinder Sensor | T-slot Compatible | IP68 Enclosure | PNP Outputs | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in industrial automation, featuring T-slot compatibility and high IP68 enclosure rating for harsh environments. With PNP switching outputs and robust protection against magnetic interference, it's perfect for manufacturing equipment and robotics, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Switching frequency: < 10 Hz
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.7 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Time delay before availability: 25 ms
- Operating temperature range: –30 °C to +80 °C
- Connection: Cable with male M12 4-pin connector, 0.5 m length
- Material: Plastic housing (PA12), PUR cable
- Enclosure rating: IP68
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 10mm x 50mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible
- 2 x PNP switching outputs with 2 x N/O contacts
- High enclosure rating of IP68 for harsh environments
- Magnetic and welding field interference resistance
- Short-circuit, reverse polarity, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with male M12 4-pin connector and PTFE hose
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing in pneumatic cylinders
- Manufacturing equipment requiring magnetic field resistant sensors
- Robotics and assembly lines needing precise cylinder position feedback
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 10 mA without load
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK MZT8-2V8PSWKQT Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
