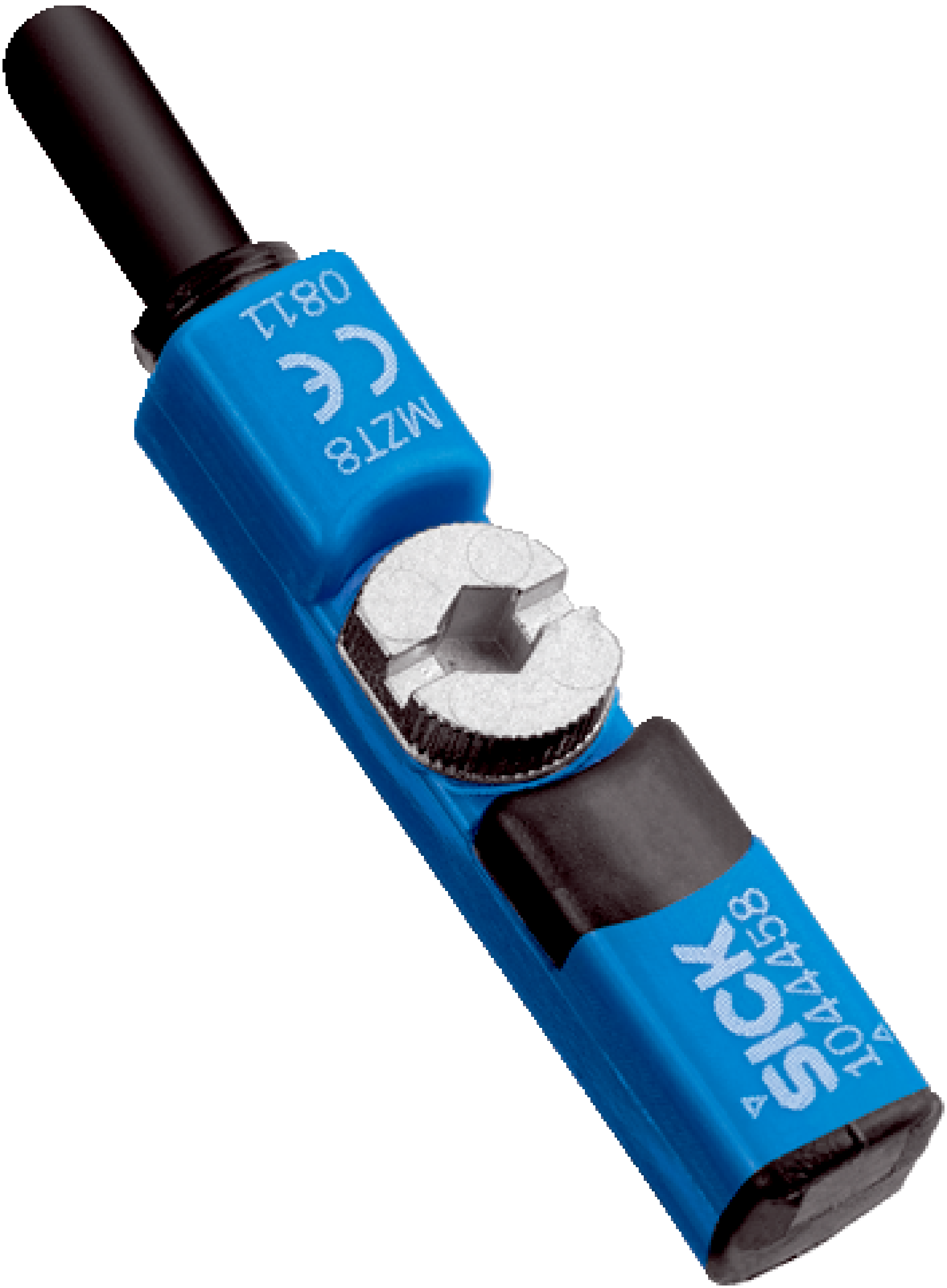

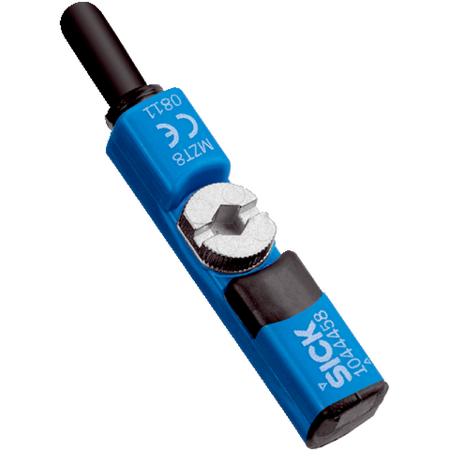

Magnetic Cylinder Sensor | T-slot Type | PNP Output | IP68/IP69K Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in industrial automation, featuring a T-slot design and PNP normally open output. With a high switching frequency of 1,000 Hz and robust IP68/IP69K enclosure rating, it’s perfect for harsh environments, ensuring reliable performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Cylinder Position Sensor, T-slot Cylinder Sensor, Proximity Sensor for Cylinders
Technical Specifications
- Cylinder type: T-slot
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Response sensitivity: 2.8 mT
- Overrun distance: 9 mm
- Hysteresis: 0.7 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: 3-wire cable, 2 m PUR, axial outlet
- Drag chain cycles: > 2,000,000
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder types
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 and IP69K for water and dust resistance
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 10 mA without load
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 2 m PUR cable suitable for drag chain use
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP68/IP69K protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZT8-28VPS-KU0 Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and position sensing applications.
