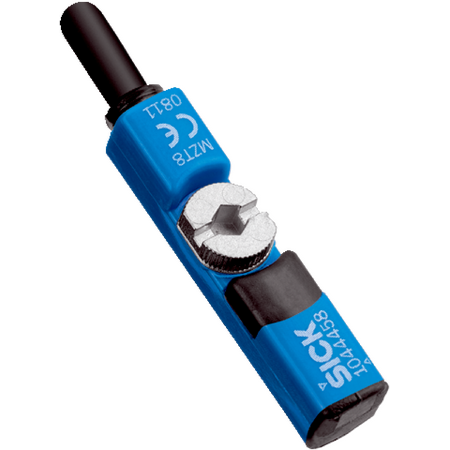

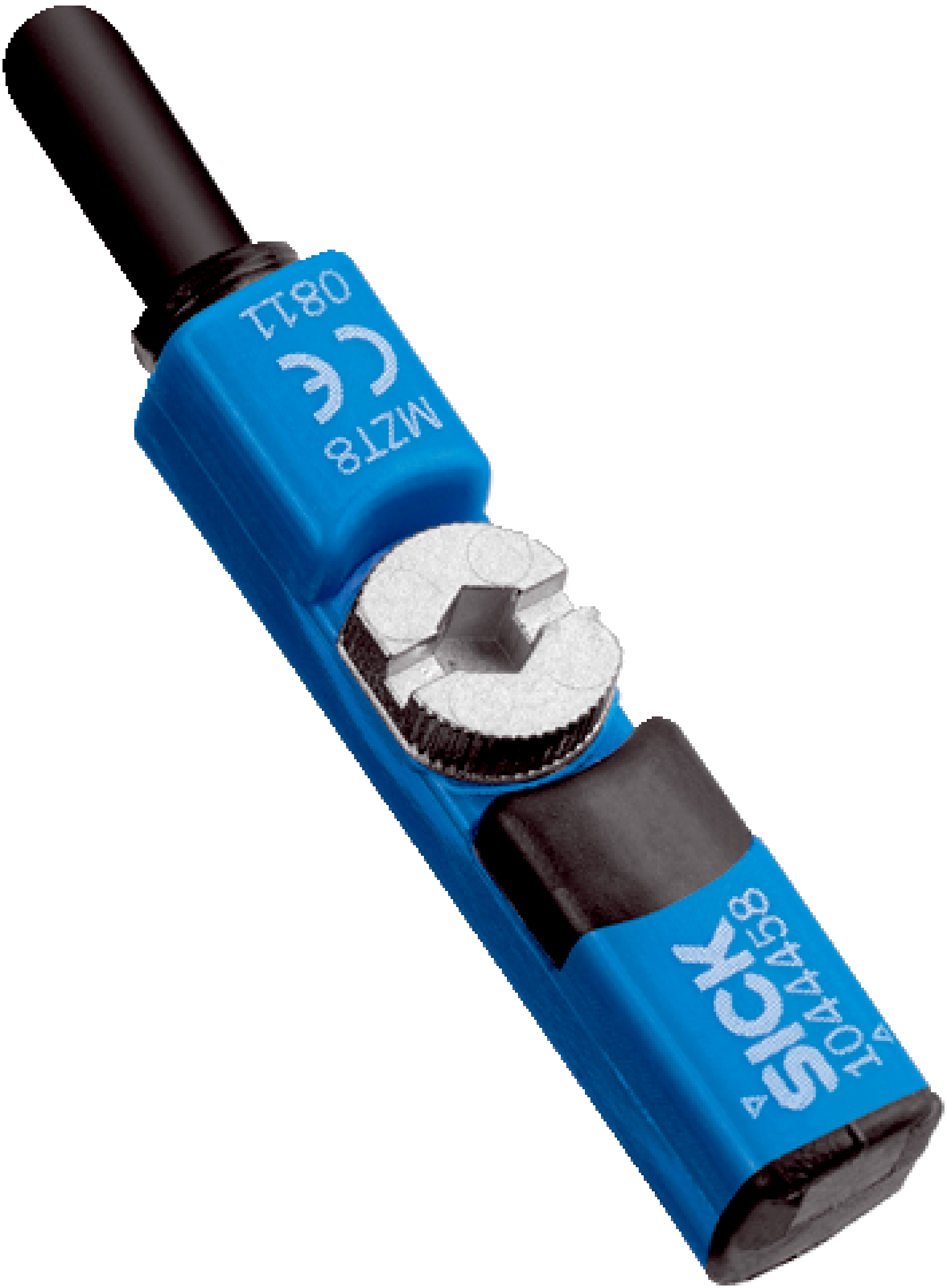

Magnetic Cylinder Sensor | T-Slot Type | PNP Output | IP68 & IP69K Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in industrial automation, featuring a T-slot design and PNP normally open output. With a high switching frequency of 1,000 Hz and robust IP68/IP69K enclosure ratings, it’s perfect for harsh environments, ensuring reliable performance in pneumatic and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Cylinder Position Sensor, Magnetic Proximity Sensor, T-slot Cylinder Sensor
Technical Specifications
- Cylinder type: T-slot
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Response sensitivity: 2.6 mT typical
- Overrun distance: 3 mm typical
- Hysteresis: 0.7 mT typical
- Reproducibility: ≤ 0.1 mT
- Enclosure rating: IP68, IP69K
- Connection type: 3-wire cable, 10 m length, axial outlet
- Material: Housing plastic PA12, cable PUR
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -30 °C to +80 °C
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- Enclosure rating IP68 and IP69K for harsh environments
- Supply voltage range from 10 V DC to 30 V DC
- Short-circuit, reverse polarity, and power-up pulse protection
- Status indicator LED for operational feedback
- Cable connection with 3-wire, 10 m length, suitable for drag chain use
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on cylinders
- Pneumatic and hydraulic cylinder monitoring
- Factory automation and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 10 mA without load
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZT8-03VPS-KUD Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
