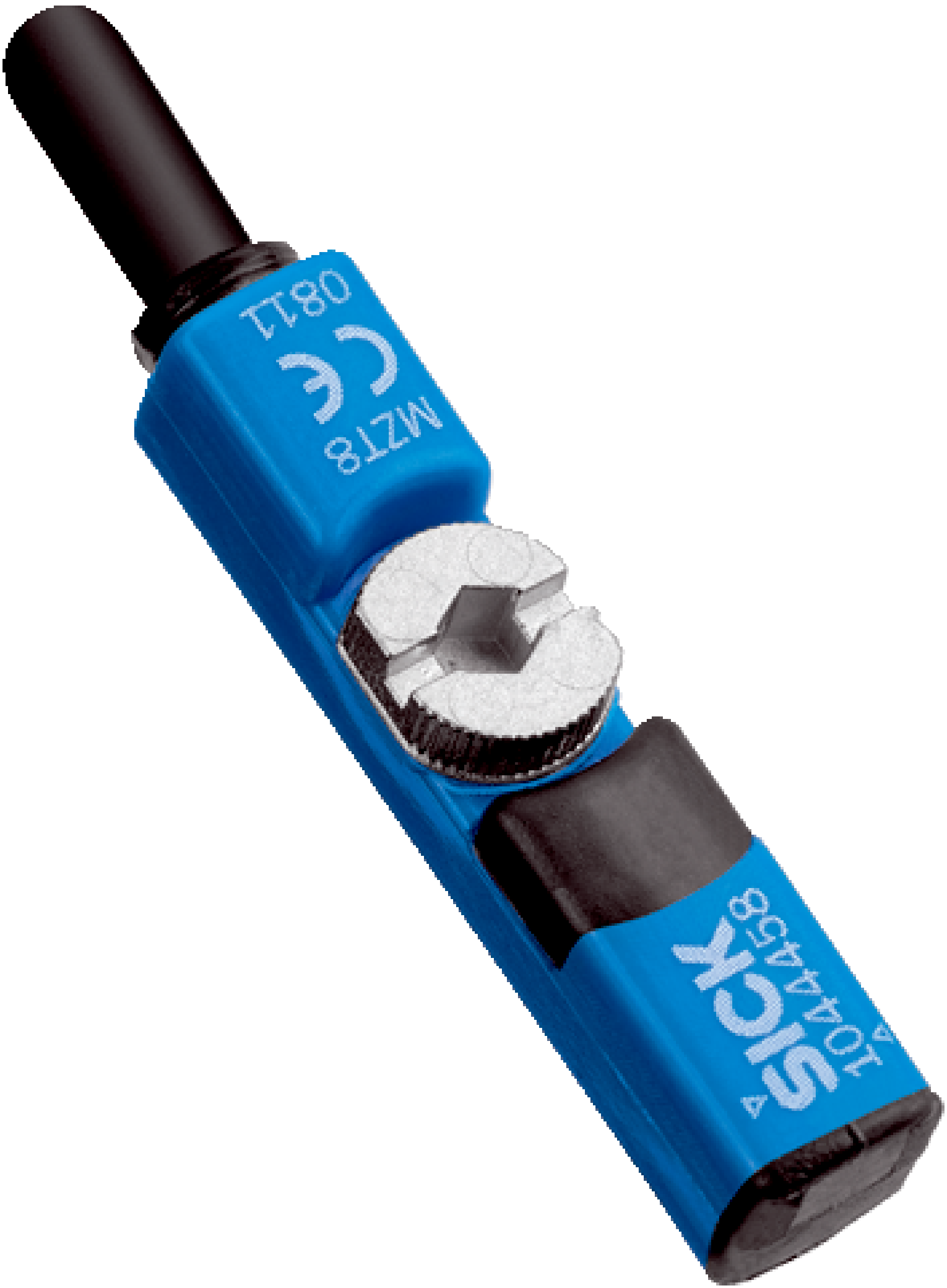

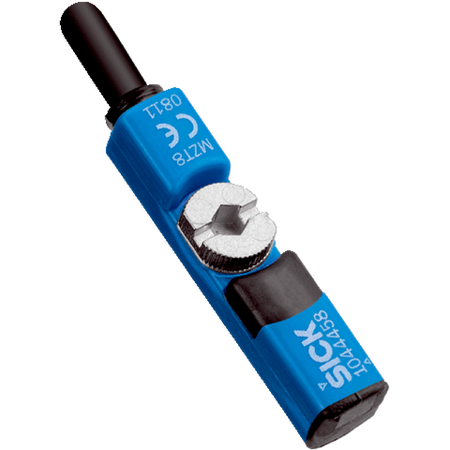

Magnetic Cylinder Sensor | T-Slot Compatibility | PNP Output | IP68 Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing on T-slot cylinders, compatible with various cylinder types including profile and tie rod. With a PNP switching output and an impressive switching frequency of 1,000 Hz, this sensor is perfect for industrial automation applications, ensuring reliable performance even in harsh environments with its IP68 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Cylinder Position Sensor, T-slot Cylinder Sensor, PNP Magnetic Sensor
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 24 mm
- Switching output: PNP
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Time delay before availability: 25 ms
- Response sensitivity (typical): 2.6 mT
- Overrun distance (typical): 3 mm
- Hysteresis (typical): 0.7 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.3 m length, suitable for drag chain use
- Cable specifications: Conductor cross section 0.14 mm², Cable diameter Ø 2.9 mm, Bending radius > 3x cable diameter fixed, > 10x flexible
- Torsion force: ± 270° / 10 cm
- Torsion cycles: > 2,000,000
- Drag chain cycles: > 2,000,000
- Drag chain parameters: Max traversing speed 3.3 m/s at 5 m horizontal length, max acceleration 5 m/s²
- Cable outlet: Axial
- Housing material: Plastic, PA12
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with multiple cylinder types
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range 10 V DC to 30 V DC
- Low power consumption of 10 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin connector, suitable for drag chain use
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZT8-03VPS-KP0 Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
