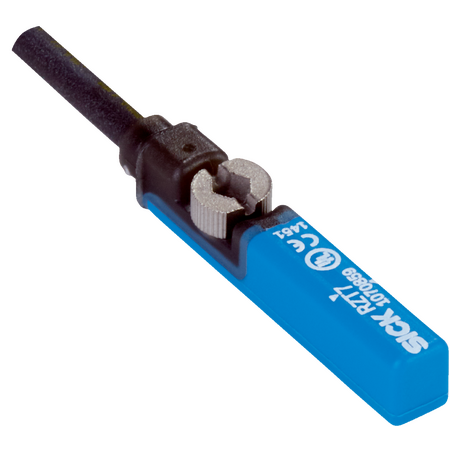

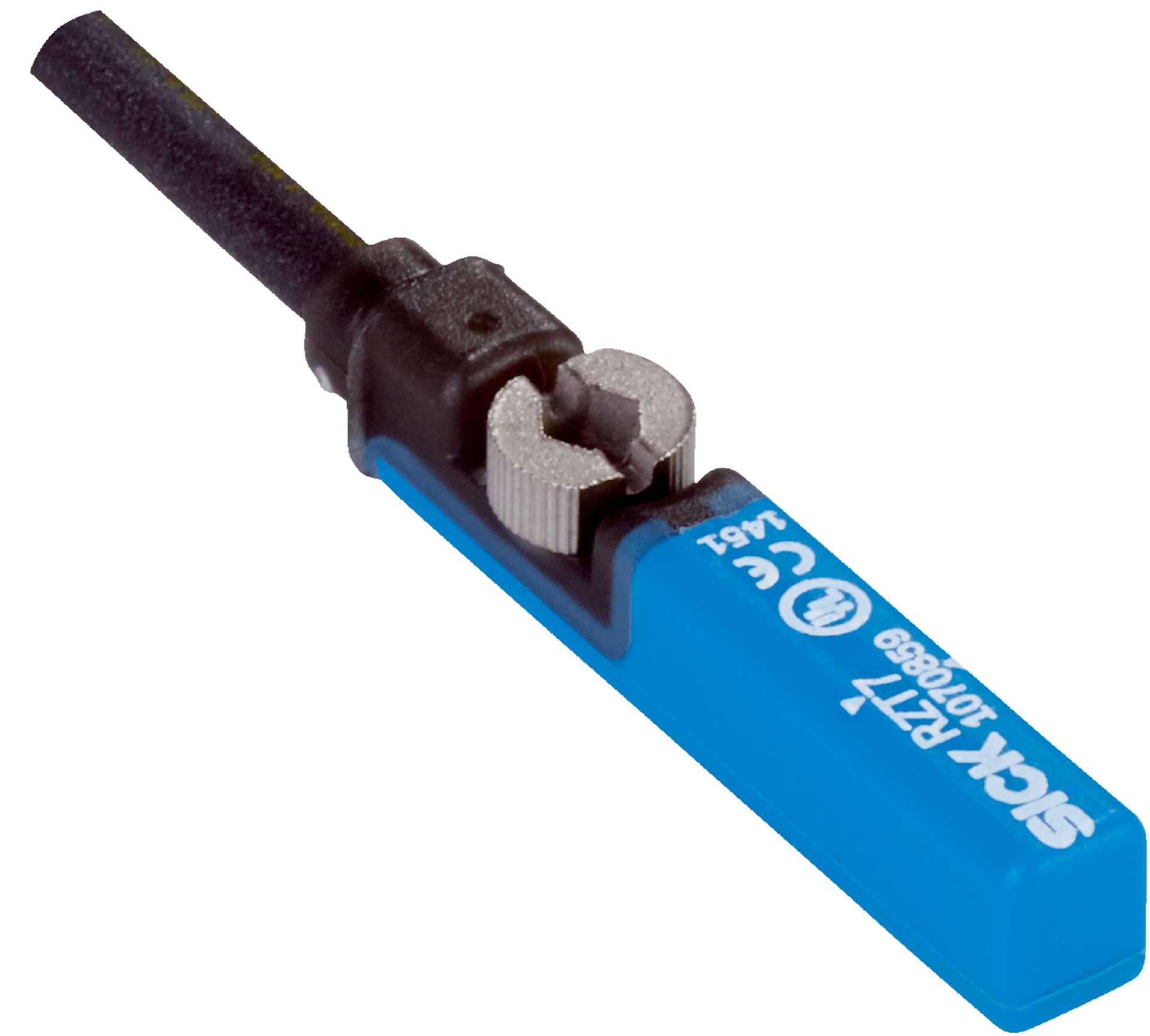

Magnetic Cylinder Sensor | T-slot Compatibility | Reed Switch Output | IP65/IP67 Rated | by SICK
The Magnetic Cylinder Sensor is designed for T-slot cylinders, offering reliable position sensing with a reed switch output and a high switching frequency of up to 400 Hz. Ideal for industrial automation, this sensor is built to withstand harsh environments with an IP65/IP67 rating, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Reed Switch Cylinder Sensor, T-slot Cylinder Sensor, Position Sensor for Pneumatic Cylinders
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V to 30 V AC/DC
- Voltage drop: ≤ 0.1 V
- Continuous current Ia: ≤ 500 mA (typical), ≤ 300 mA (max)
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity: 3 mT
- Overrun distance: 10 mm
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.3 m length
- Cable specifications: Conductor cross section 0.14 mm², Cable diameter Ø 2.9 mm, PUR material
- Bending radius: Fixed installation > 8x cable diameter, Flexible use > 12x cable diameter
- Housing material: Plastic, Grilamid LVX-65H SST
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot magnetic cylinder sensor compatible with multiple cylinder types
- Reed switching output with normally open (NO) function
- High switching frequency up to 400 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP65 and IP67 for dust and water protection
- Supply voltage range from 5 V to 30 V AC/DC
- Reverse polarity protection and status indicator LED
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 3-pin connector, 0.3 m length, suitable for drag chain use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for position sensing on T-slot cylinders
- Use with profile cylinders, tie rod cylinders, round body cylinders, dovetail groove cylinders
- Suitable for harsh environments requiring IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with efficient switching technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RZT7-03ZRS-KP0 Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
