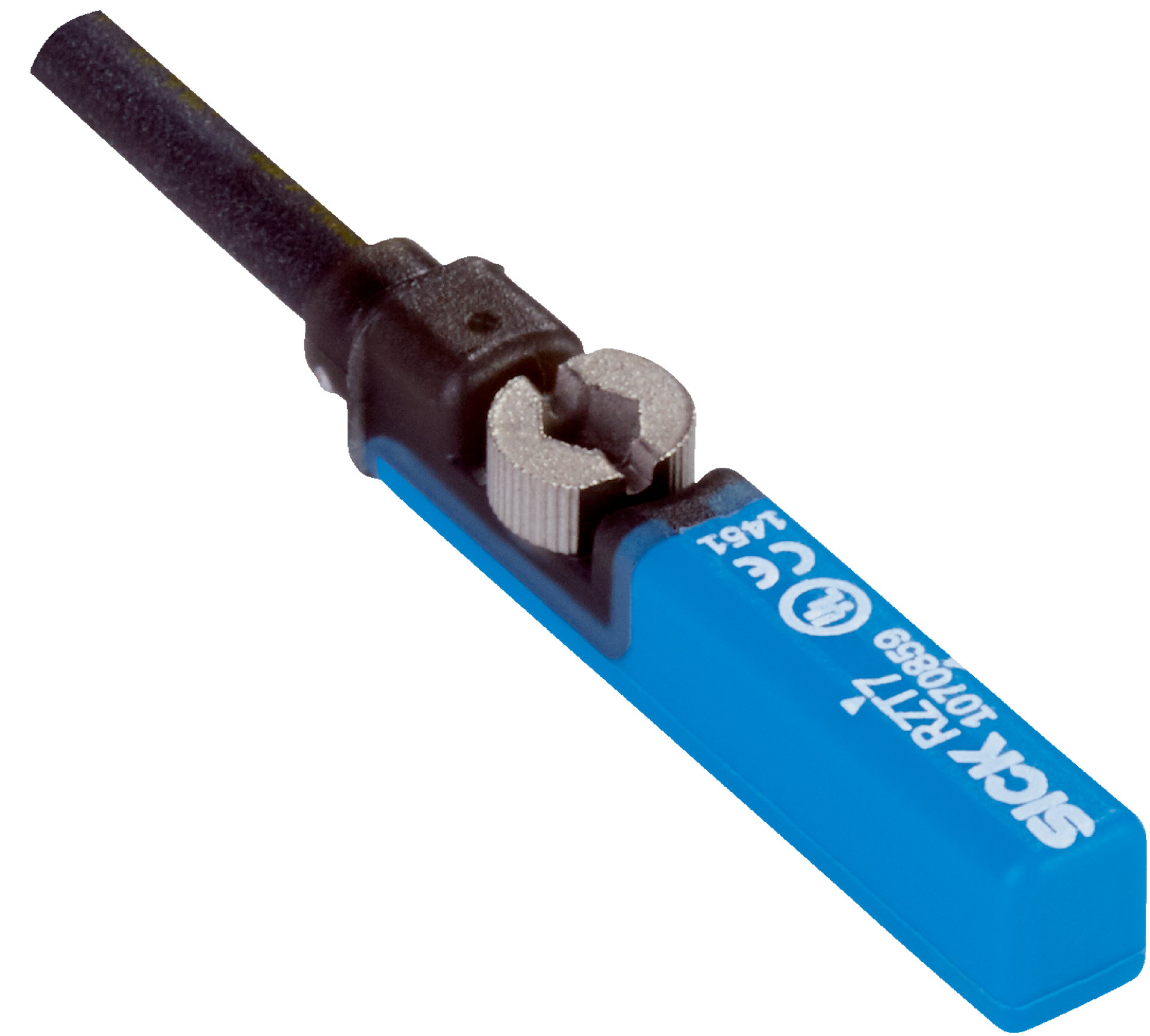

Magnetic Cylinder Sensor | T-Slot Compatibility | Reed Switch Output | IP65 & IP67 Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in pneumatic cylinders, featuring T-slot compatibility and a reliable reed switch output. With an IP65 and IP67 enclosure rating, it ensures durability in industrial automation applications, providing high switching frequency and reverse polarity protection for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Reed Switch Cylinder Sensor, Pneumatic Cylinder Position Sensor, T-slot Cylinder Sensor
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V to 30 V AC/DC
- Voltage drop: ≤ 0.1 V
- Continuous current Ia: ≤ 500 mA or ≤ 300 mA depending on conditions
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin plug, 0.3 m length, axial outlet
- Material: Housing - Plastic Grilamid LVX-65H and stainless steel; Cable - PUR
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 400 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP65 and IP67 for dust and water protection
- Supply voltage range from 5 V to 30 V AC/DC
- Reverse polarity protection and status indicator LED
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M12 3-pin plug, 0.3 m length, axial outlet
- Housing made of durable plastic Grilamid LVX-65H and stainless steel
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper function and safety.
Applications
- Industrial automation for position sensing in pneumatic cylinders
- Factory automation systems requiring reliable cylinder position feedback
- Use in manufacturing equipment with T-slot, profile, tie rod, round body, and dovetail groove cylinders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with efficient switching technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

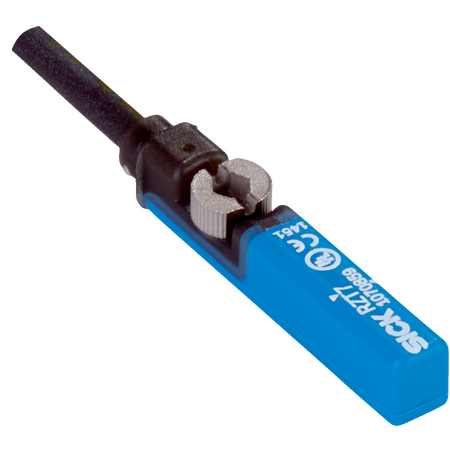

The SICK RZT7-03ZRS-KQ0 Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
