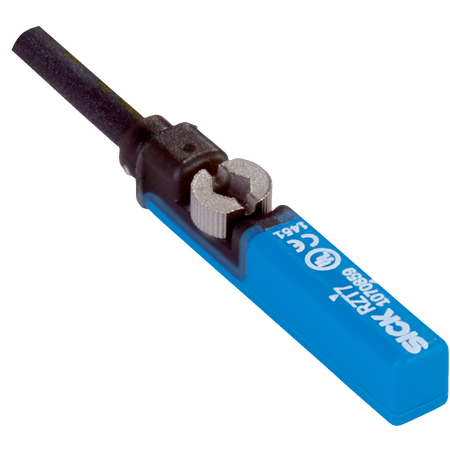

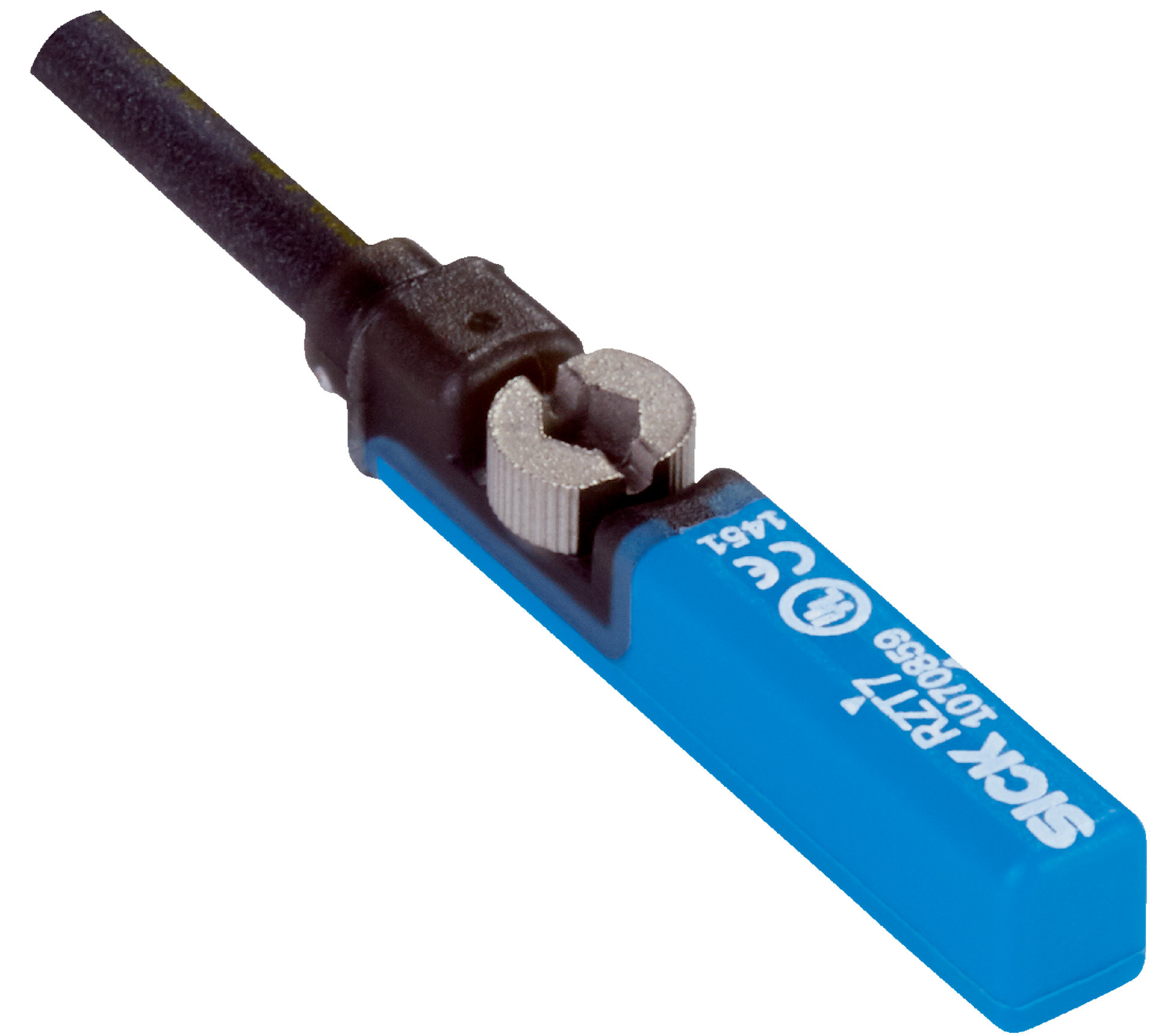

Magnetic Cylinder Sensor | T-Slot Compatible | Reed Switch Output | IP65 & IP67 Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With T-slot compatibility and a high switching frequency of 400 Hz, it’s perfect for pneumatic and hydraulic cylinder monitoring. Built for durability with IP65 and IP67 ratings, this sensor ensures reliable performance in demanding environments, making it an essential tool for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Cylinder Position Sensor, Reed Switch Cylinder Sensor, T-slot Cylinder Sensor
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 400 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V to 30 V AC/DC
- Voltage drop: ≤ 0.1 V
- Continuous current Ia: ≤ 500 mA
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity: 3 mT
- Overrun distance: 10 mm
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin plug, 4 m length
- Cable specifications: Conductor cross section 0.14 mm², Cable diameter Ø 2.9 mm, PUR material
- Torsion force: ± 270° / 10 cm
- Torsion cycles: > 2,000,000
- Dimensions (H x L x W): 15mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile, tie rod, round body, dovetail groove cylinders and SMC rails
- Reed switching output with normally open (NO) function
- High switching frequency of 400 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP65 and IP67 for dust and water protection
- Supply voltage range from 5 V to 30 V AC/DC
- Low voltage drop ≤ 0.1 V
- Continuous current up to 500 mA
- Reverse polarity protection and status indicator LED
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 3-pin plug, 4 m length, suitable for drag chain use
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise cylinder position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK RZT7-03ZRS-KRD Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
