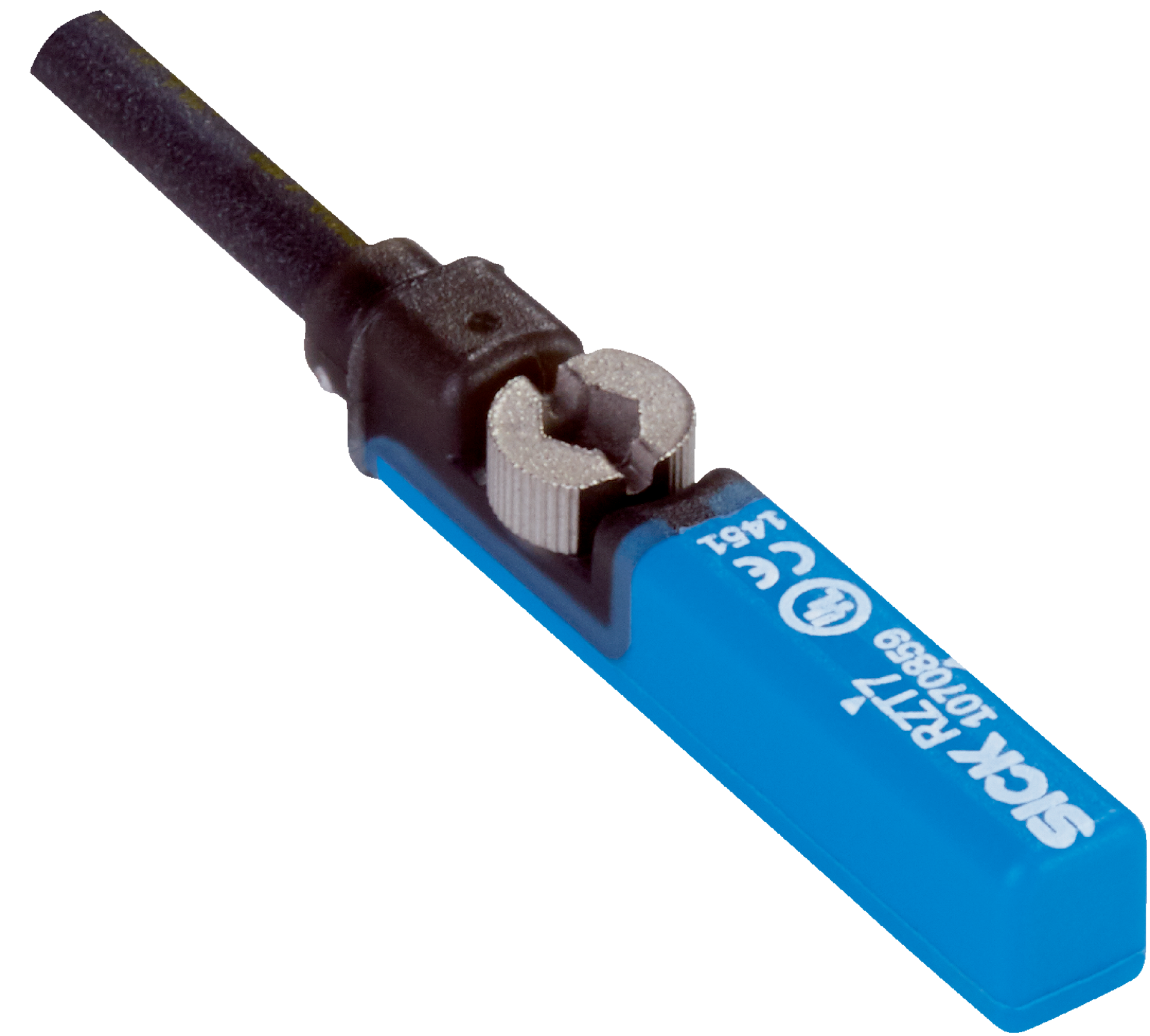

Magnetic Cylinder Sensor | T-Slot Compatible | Reed Switching Output | IP65 & IP67 Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in industrial automation, featuring T-slot compatibility with various cylinder types and a reliable reed switching output. With an IP65 and IP67 enclosure rating, it ensures durability in harsh environments, making it ideal for pneumatic cylinder monitoring and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Cylinder Sensor, Reed Switch Cylinder Sensor, Pneumatic Cylinder Sensor, Position Sensor for Cylinders
Technical Specifications
- Cylinder type: T-slot
- Compatible cylinder types: Profile, Tie rod, Round body, Dovetail groove, SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 29.5 mm
- Switching output: Reed
- Switching frequency: 400 Hz
- Output function: Normally Open (NO)
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP65 and IP67
- Supply voltage: 5 V to 30 V AC/DC
- Voltage drop: ≤ 3.5 V
- Continuous current Ia: ≤ 100 mA
- Switching capacity: ≤ 6 W
- Protection class: III
- Response sensitivity: 3 mT typical
- Overrun distance: 10 mm typical
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin plug, 0.3 m length, suitable for drag chain use
- Material: Housing - Plastic Grilamid LVX-65H SST, Cable - PUR
- Dimensions (H x L x W): 10mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder types including profile, tie rod, round body, dovetail groove, and SMC rails.
- Reed switching output with normally open (NO) function.
- High switching frequency of 400 Hz.
- Electrical wiring: AC/DC 2-wire system.
- Enclosure rating IP65 and IP67 for dust and water resistance.
- Supply voltage range from 5 V to 30 V AC/DC.
- Low voltage drop ≤ 3.5 V and continuous current up to 100 mA.
- Status indicator LED for operational feedback.
- Robust mechanical and electronic design with shock and vibration resistance.
- Cable with M12 3-pin plug connection suitable for drag chain use.
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure safety and proper operation.
Applications
- Industrial automation for position sensing
- Pneumatic cylinder monitoring
- Manufacturing process control
- Robotics and machinery safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Low power consumption contributes to energy efficiency in industrial systems.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

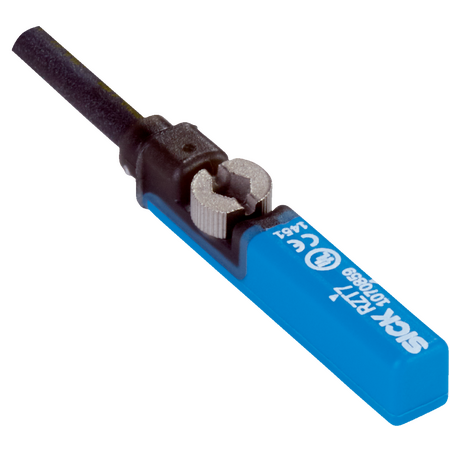

The SICK RZT7-03ZUS-KQ0 Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder monitoring applications.
