Magnetic Door Holder | 12VDC Operation | Up to 25kg Holding Strength | Floor Mounted | by Dicker Data

BRAND: Dicker Data
SKU: R40PCV-12
$169.90
+ −
30 Days Return Delivery Options

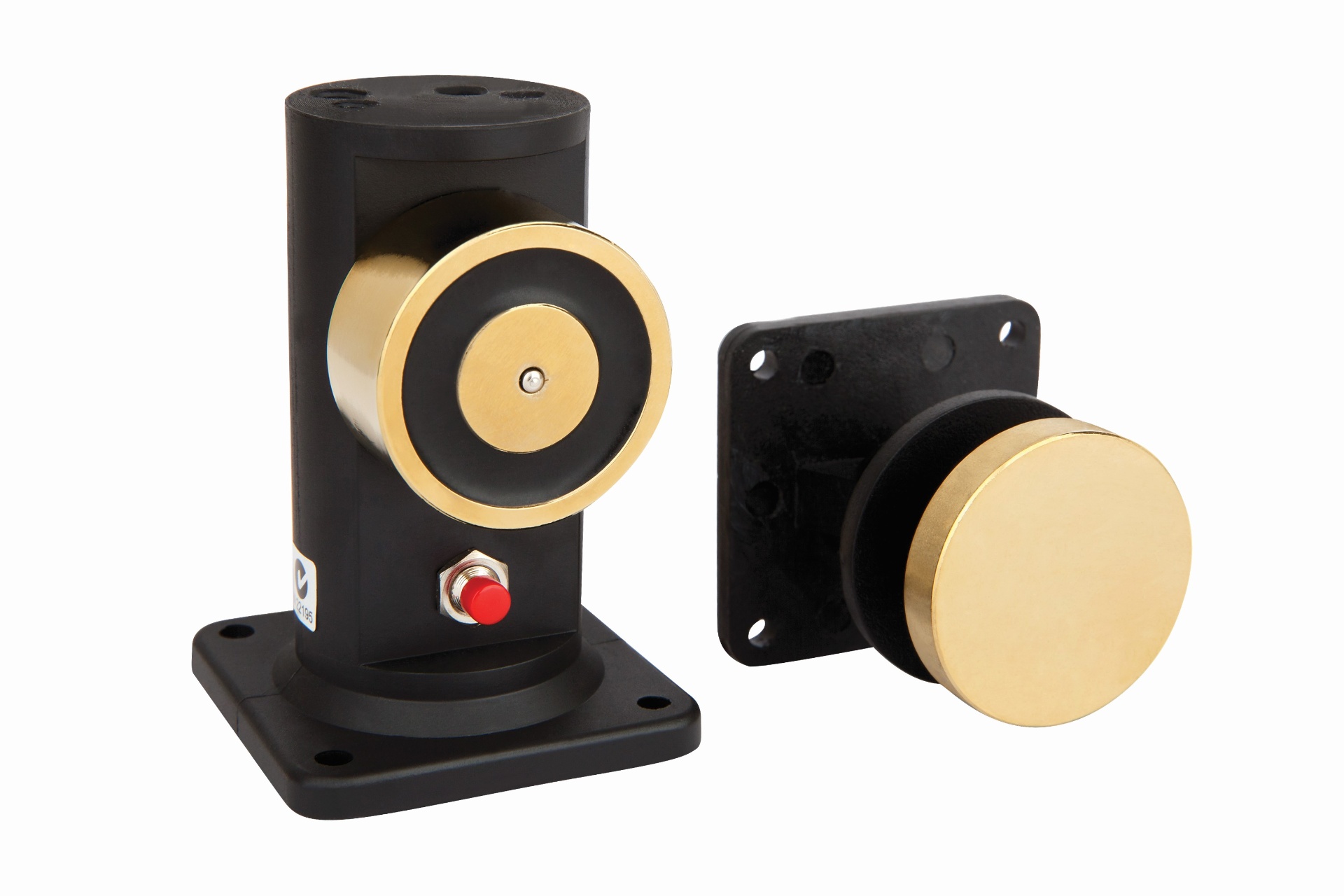

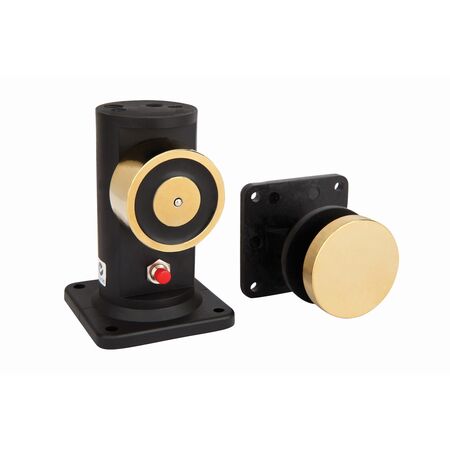

The Magnetic Door Holder operates at 12VDC and provides a robust holding strength of up to 25kg, making it ideal for commercial and institutional applications. Designed for floor mounting, this durable door holder ensures doors remain open safely in hospitals, offices, and public access areas, enhancing convenience and energy efficiency.

Product Name/Title: Magnetic Door Holder | 12VDC Operation | Up to 25kg Holding Strength | Floor Mounted | by Dicker Data

Brand: Dicker Data

SKU: R40PCV-12

Alternatively Known As: Magnetic Door Holder, Floor Mounted Door Magnet, 12V Door Hold Open Magnet

Technical Specifications
  • Voltage/Current: 12VDC = 160mA
  • Holding Strength: Up to 25kg
  • Mounting Type: Floor mounted
  • Operation: Magnetic hold open
  • Dimensions (H x L x W): 50mm x 80mm x 80mm
  • Weight: 1.5 kg
Key Features
  • Magnetic door holder designed for floor mounting
  • Operates at 12VDC with a current of 160mA
  • Holding strength up to 25kg
  • Durable construction suitable for frequent use
Professional Installation Requirements
  • Installation should be performed by a qualified professional to ensure correct mounting and electrical connection in compliance with safety standards.
Applications
  • Commercial buildings for holding doors open
  • Hospitals and healthcare facilities
  • Educational institutions
  • Office buildings
  • Public access areas requiring door hold-open functionality
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Reduces energy loss by holding fire and security doors open only when safe to do so
  • Low power consumption with efficient 12VDC operation
Warranty Information

2 year warranty against manufacturing defects.

Available Now

The LOX R40PCV-12 Magnetic Door Holder is available for immediate purchase, ideal for commercial and institutional door hold-open applications.
