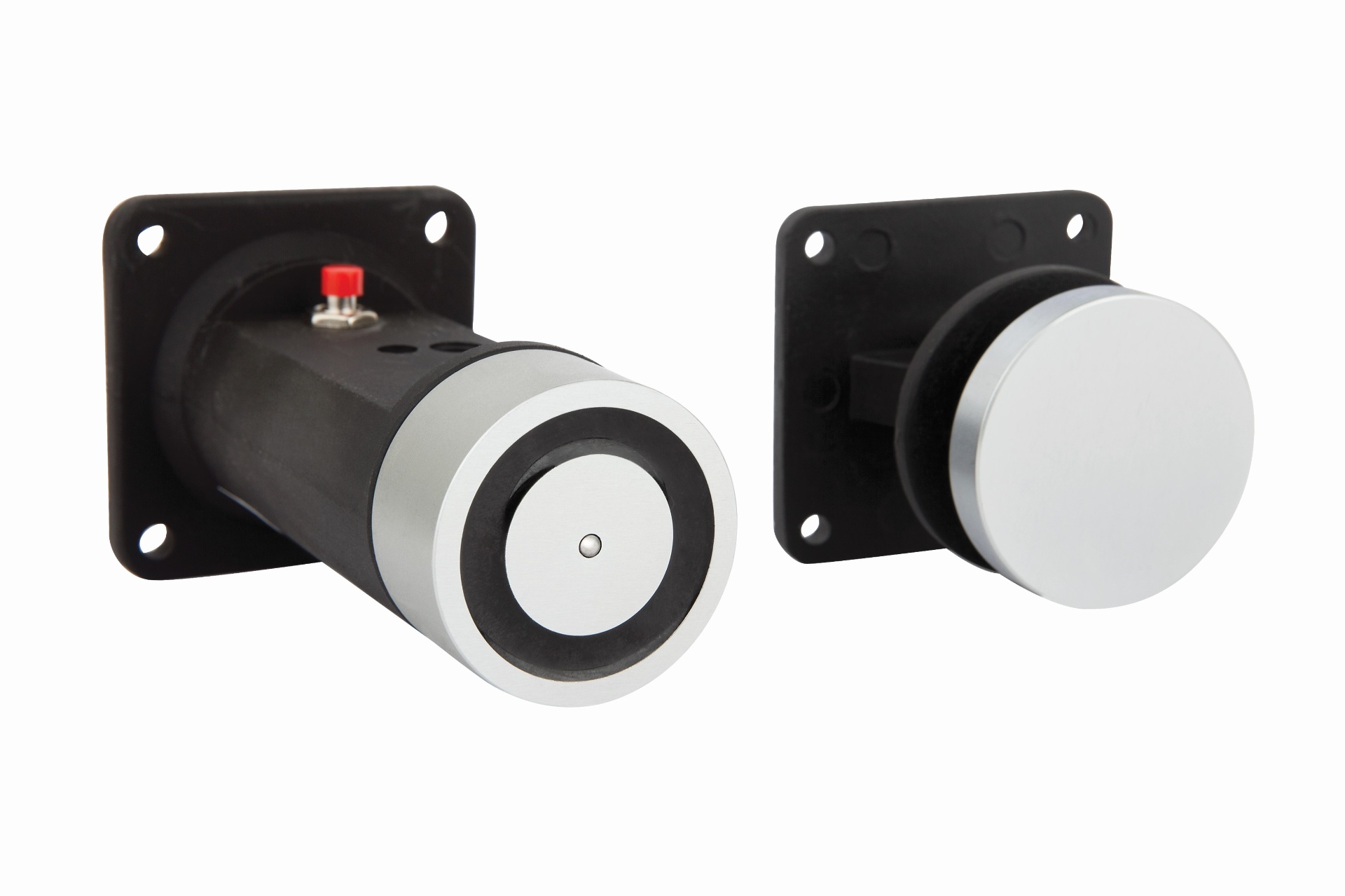

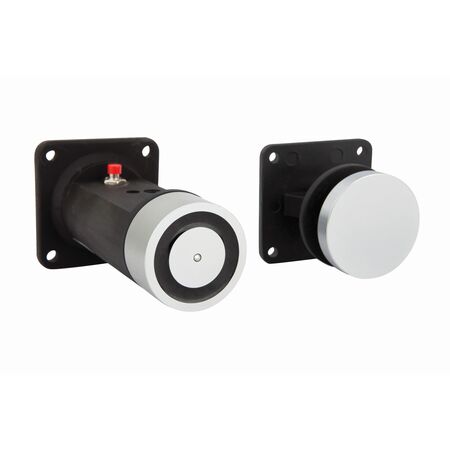

Magnetic Door Holder | 24VDC Operation | Up to 25kg Holding Strength | Wall Mount with Extension | by Dicker Data

BRAND: Dicker Data
SKU: R40PCH-24
$169.90
+ −
30 Days Return Delivery Options
The Magnetic Door Holder operates at 24VDC and offers an impressive holding strength of up to 25kg, making it ideal for commercial and institutional applications. Designed for wall mounting with an extension for flexible installation, this door holder is perfect for hospitals, offices, and public access areas, ensuring doors remain open securely while minimizing energy consumption.

Product Name/Title: Magnetic Door Holder | 24VDC Operation | Up to 25kg Holding Strength | Wall Mount with Extension | by Dicker Data

Brand: Dicker Data

SKU: R40PCH-24

Alternatively Known As: Magnetic Door Holder, Door Hold Open Magnet, Wall Mounted Door Holder, 24V Door Magnet

Technical Specifications
  • Voltage/Current: 24VDC, 80mA
  • Holding Strength: Up to 25kg
  • Length: 108mm
  • Mounting: Wall mount with extension
  • Dimensions (H x L x W): 30mm x 108mm x 30mm
  • Weight: 0.3 kg
Key Features
  • Wall mounted magnetic door holder
  • Operates at 24VDC with 80mA current
  • Holding strength up to 25kg
  • Includes extension for flexible installation
Professional Installation Requirements
  • Professional installation by a qualified electrician or technician is recommended to ensure proper mounting and electrical connection.
Applications
  • Commercial buildings for holding doors open
  • Hospitals and healthcare facilities
  • Educational institutions
  • Office buildings
  • Public access areas requiring door hold-open functionality
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption at 24VDC reduces energy usage
  • Durable design minimizes replacement frequency and waste
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The LOX R40PCH-24 Magnetic Door Holder is available for immediate purchase, ideal for commercial and institutional door hold-open applications.
