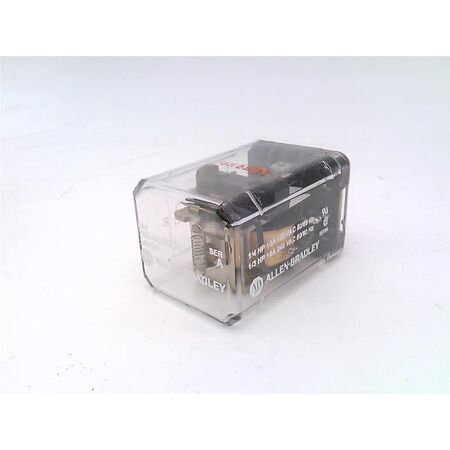

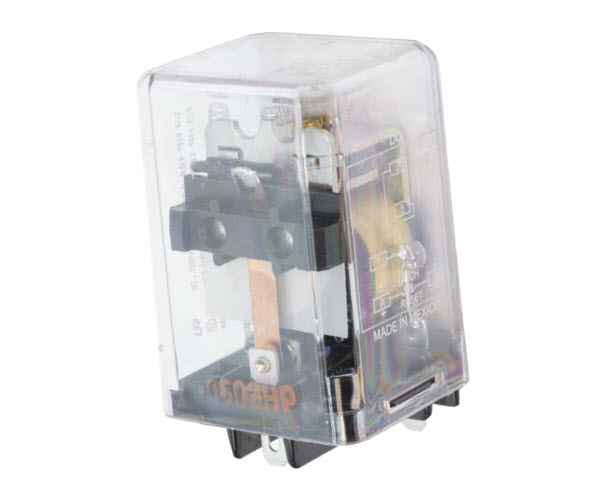

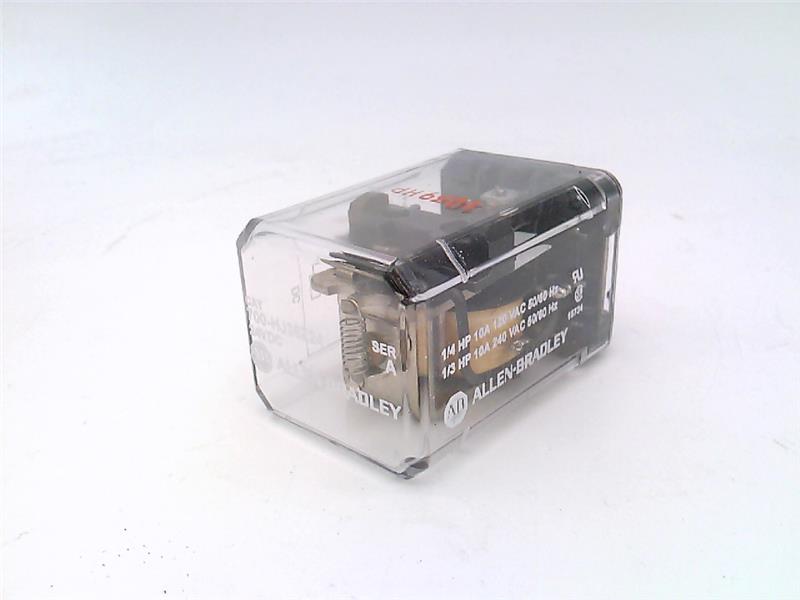

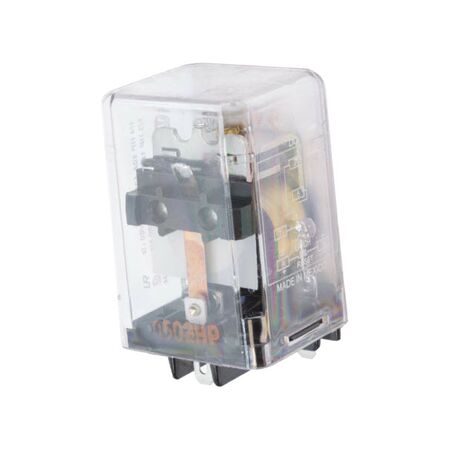

Magnetic Latching Relay 24V DC | 10A Contact Rating | Blade Terminal Design | by Allen-Bradley
The Magnetic Latching Relay 24V DC is designed for efficient control in industrial automation systems, featuring a 10A contact rating and a 1 pole double throw configuration. With blade-style terminals for easy installation, this relay minimizes power consumption by maintaining its state without continuous coil power, making it ideal for electrical switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 10 A
- Frequency: 50/60 Hz
- Coil Voltage: 24 V DC
- Pole Configuration: 1 Pole Double Throw
- Terminal Type: Blade-style terminals
- Dimensions (H x L x W): 50mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Magnetic latching relay design
- Blade-style terminals for easy connection
- 10 A contact rating
- Operates at 50/60 Hz frequency
- 24 V DC coil voltage
- 1 pole double throw configuration
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Magnetic latching design reduces power consumption by maintaining state without continuous coil power.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HJ36Z24 Magnetic Latching Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
