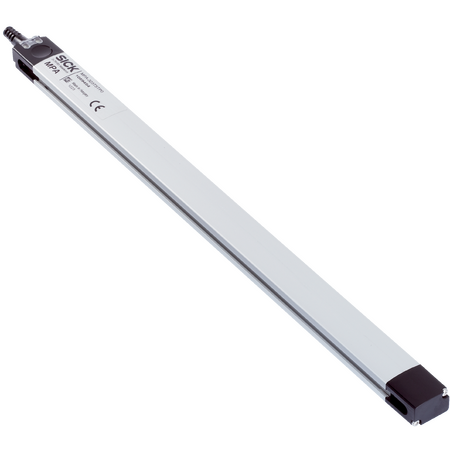

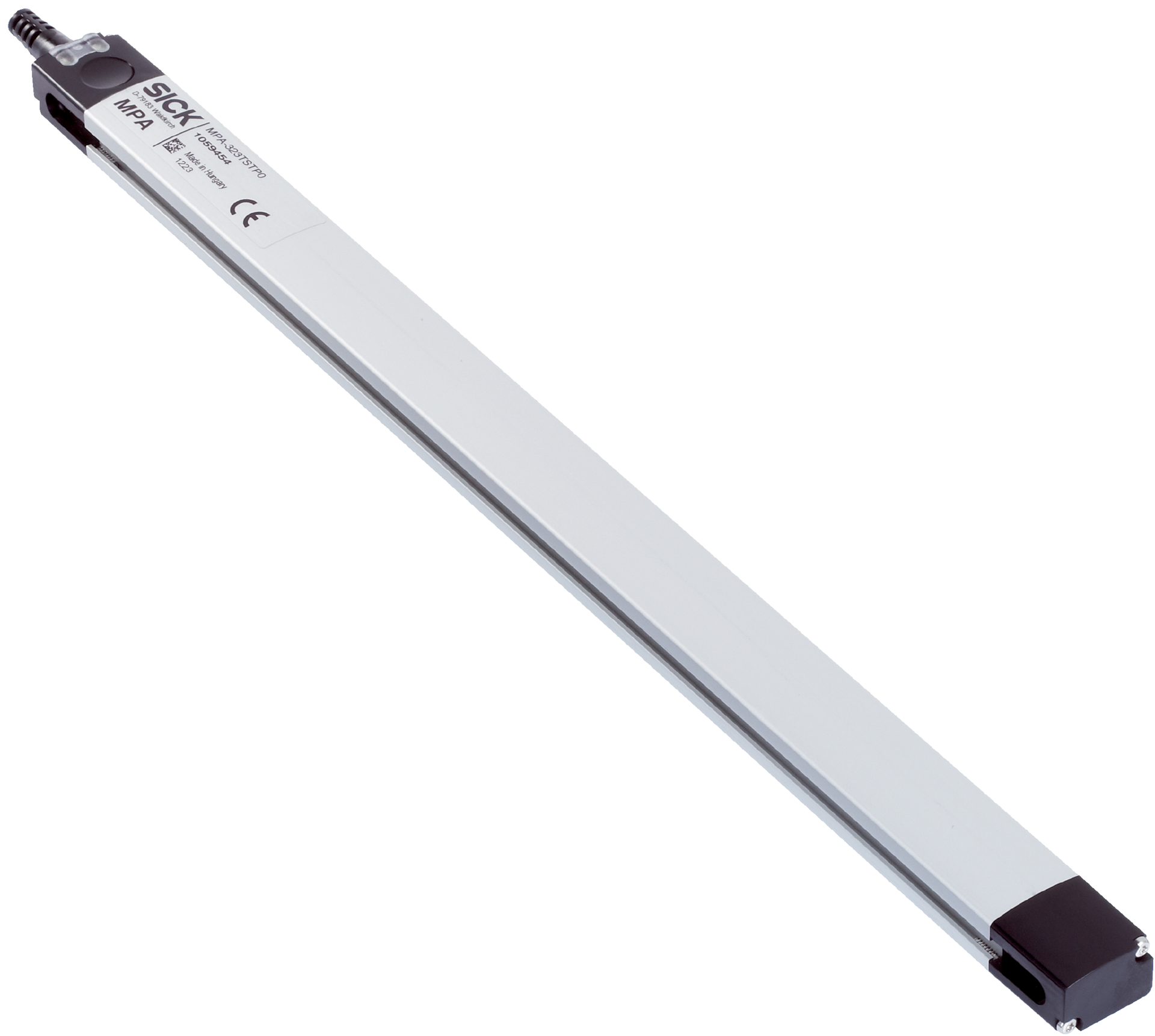

Magnetic Position Sensor | 287 mm Measuring Range | IO-Link & Analog Output | IP65 to IP68 Rated | by SICK
The Magnetic Position Sensor is designed for precise position sensing in industrial automation, featuring a 287 mm measuring range and both IO-Link and analog output functions. With robust IP65 to IP68 protection, it’s perfect for pneumatic systems and offers easy installation with a teach-in control panel for adjustments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Position Sensor, Magnetic Cylinder Position Sensor, IO-Link Position Sensor, Analog Position Sensor
Technical Specifications
- Measuring range: 287 mm
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 35 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Resolution: 0.03% FSR (max. ≥ 0.06 mm)
- Linearity error: 0.5 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1.15 ms
- Protection class: III
- Operating temperature: -20 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Housing material: Metal, Aluminum
- Cable material: PUR
- Communication interface: IO-Link V1.0.1, COM2, cycle time 2.3 ms
- Dimensions (H x L x W): 30mm x 289mm x 30mm
- Weight: 0.5 kg
Key Features
- Universal cylinder type compatibility including round body, tie rod, T-slot, Festo, DSBC, SMC cylinders
- Measuring range of 287 mm
- Analog and IO-Link output functions
- Electrical wiring: DC 4-wire
- Analog output voltage: 0 V to 10 V
- Analog output current: 4 mA to 20 mA
- Enclosure rating IP65, IP67, IP68 for robust protection
- Teach-in control panel for easy adjustment and resetting
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10 Hz to 55 Hz, 1 mm)
- Connection via cable with M8 male connector, 4-pin, 0.3 m length
- Housing made of metal and aluminum with PUR cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link communication setup.
Applications
- Industrial automation for position sensing
- Cylinder position measurement in pneumatic systems
- Integration with IO-Link enabled control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (35 mA without load)
- Durable IP65 to IP68 rated housing reduces environmental waste by extending product life
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPA-287THTP0 Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
