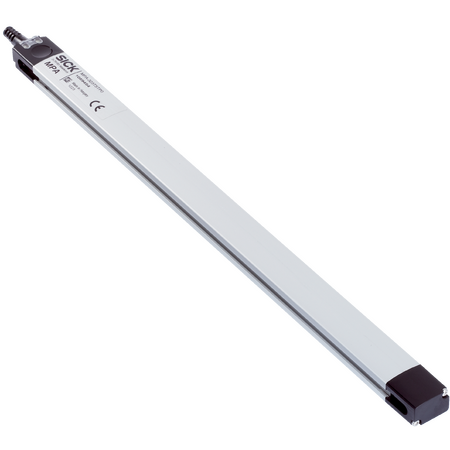

Magnetic Position Sensor | 359 mm Measuring Range | IO-Link & Analog Output | IP65 to IP68 Protection | by SICK
The Magnetic Position Sensor is designed for precise position sensing in industrial automation, featuring a 359 mm measuring range and both IO-Link and analog output functions. With robust IP65 to IP68 protection, it's perfect for harsh environments and ensures reliable performance in pneumatic and hydraulic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Position Sensor, Magnetic Cylinder Position Sensor, IO-Link Position Sensor, Analog Position Sensor
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 35 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Magnetic field sensitivity: 2 mT to 15 mT
- Resolution: 0.03% FSR (max. ≥ 0.06 mm)
- Linearity error: 0.5 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1.15 ms
- Reverse polarity and short-circuit protection included
- Status indicator LED and teach-in functionality
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- EMC compliant according to EN 60947-5-2
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Housing material: Metal, Aluminum
- Cable material: PUR
- Dimensions (H x L x W): 30mm x 361mm x 30mm
- Weight: 1.2 kg
Key Features
- Universal cylinder type compatibility including round body, tie rod, T-slot, Festo, DSBC, SMC, CP96 cylinders
- Measuring range of 359 mm
- Analog and IO-Link output functions
- Electrical wiring: DC 4-wire
- Analog output voltage: 0 V to 10 V
- Analog output current: 4 mA to 20 mA
- Enclosure rating IP65, IP67, IP68 for robust protection
- Teach-in control panel for easy adjustment and resetting
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Communication interface IO-Link V1.0.1 with COM2 and 2.3 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration using the teach-in control panel.
Applications
- Industrial automation for position sensing
- Cylinder position measurement in pneumatic and hydraulic systems
- Integration with IO-Link enabled control systems
- Use in harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (35 mA without load)
- Durable design reduces waste and replacement frequency
- Compliant with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

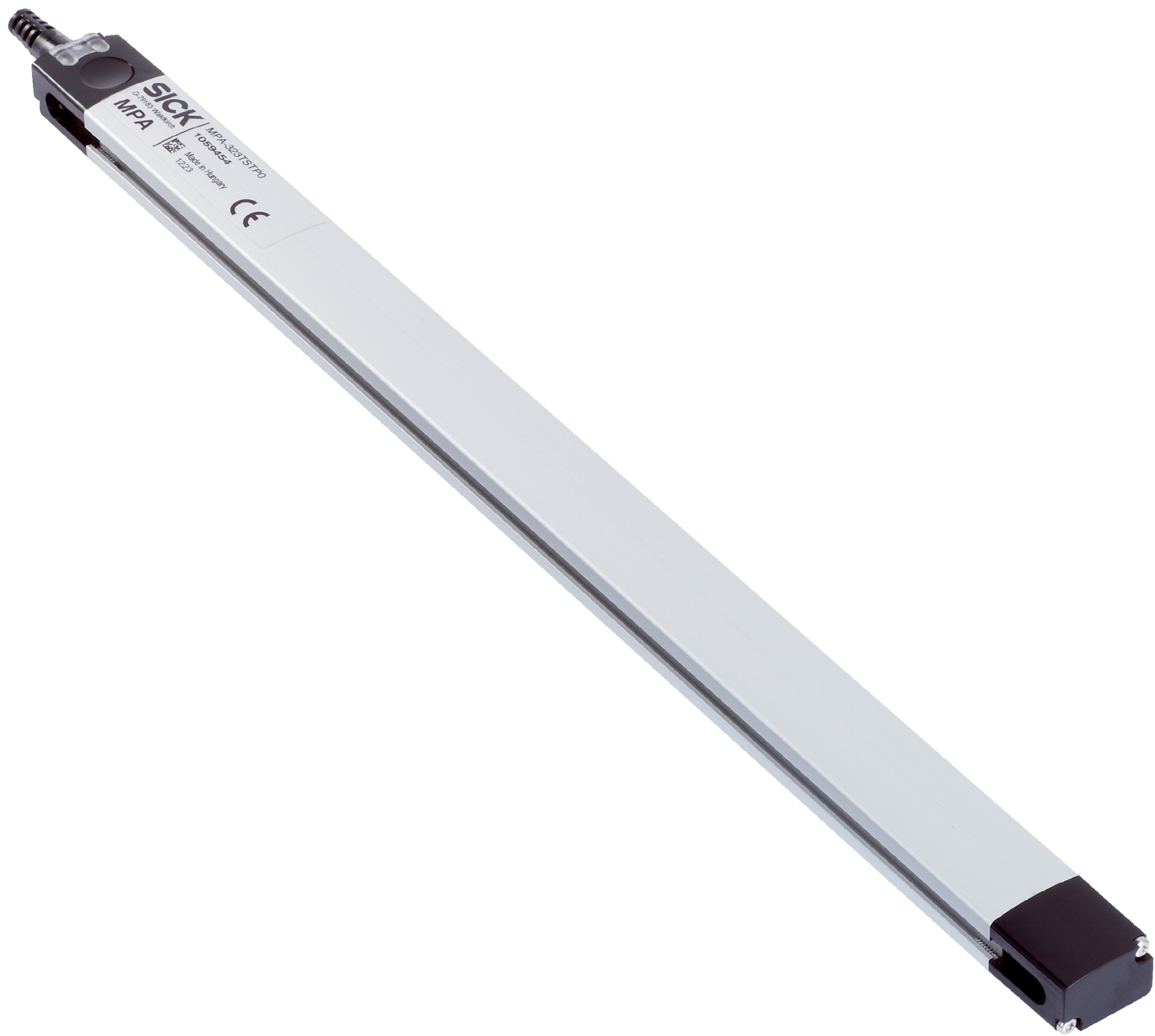

The SICK MPA-359THTP0 Magnetic Position Sensor is available for immediate purchase. Ideal for industrial automation and cylinder position sensing applications.
