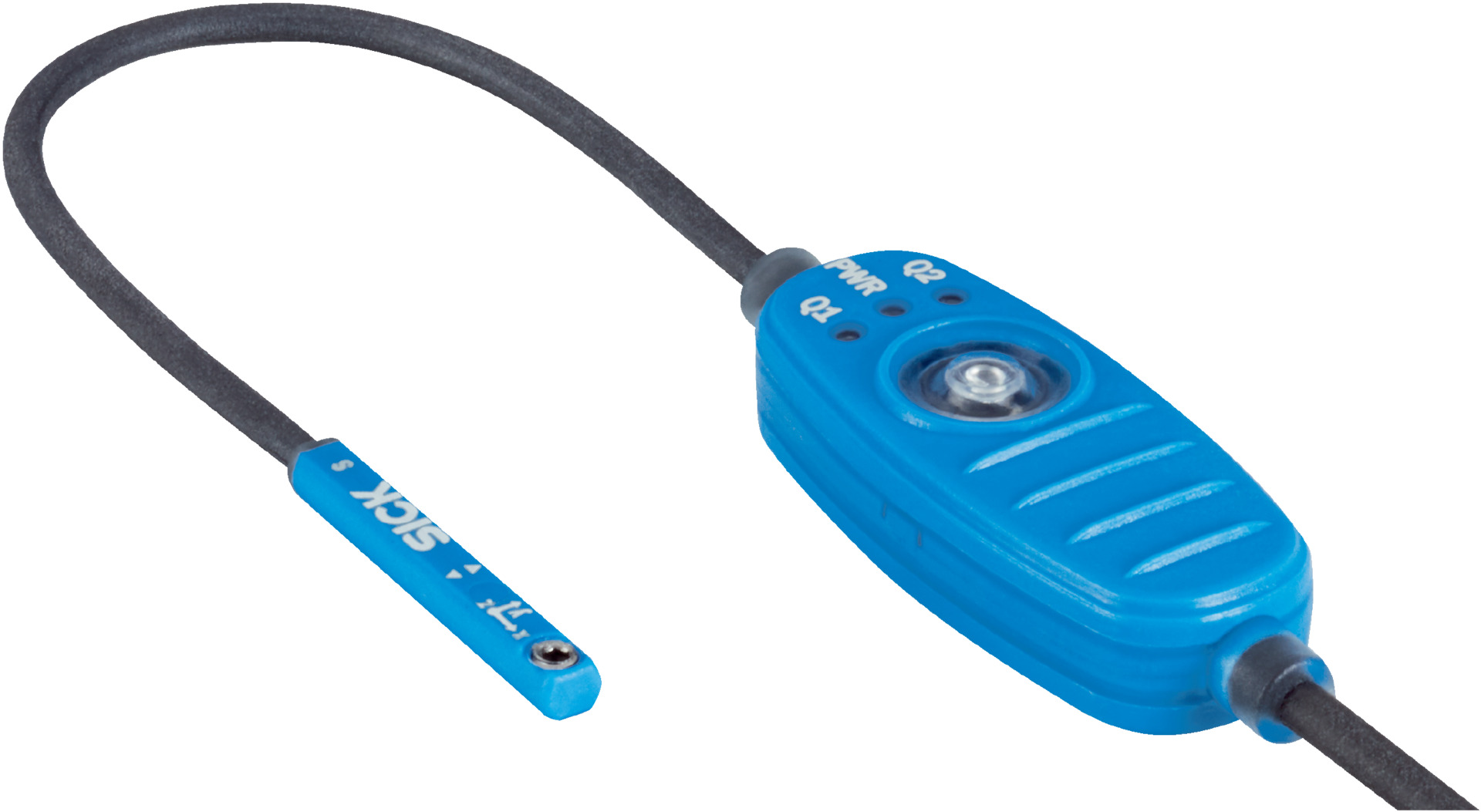

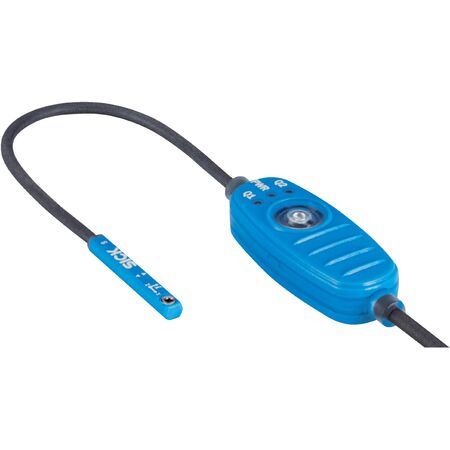

Magnetic Position Sensor | C-slot Compatibility | IP67 Rated | Dynamic Teach-In | by SICK
The Magnetic Position Sensor is designed for precise cylinder position detection in industrial automation. With a C-slot compatibility and an IP67 rated enclosure, it ensures robust performance in various environments. Ideal for both dynamic and static position monitoring, this sensor features a resolution of 0.01 mm and supports IO-Link communication for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3
- Process data length: 32 Bit
- Operating temperature: -20 °C to +70 °C
- Enclosure rating: IP67
- Connection type: 4-wire cable, 1 m length
- Material: Plastic housing (PA), PUR cable, TPU control element
- Dimensions (H x L x W): 10mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba cylinders
- Detection zone up to 50 mm with configurable overrun distance and hysteresis
- 2 x push-pull switching outputs (PNP/NPN) with IO-Link communication
- IP67 rated enclosure for robust protection
- Dynamic teach-in button for 1 to 3 switching points and manual programming
- Actuator diagnosis and status indicator LED for operational feedback
- Reverse polarity and short-circuit protection
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Communication interface IO-Link V1.1 with COM3 and 1 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and configuration of IO-Link communication.
Applications
- Industrial automation for cylinder position detection
- Use with C-slot, T-slot, round body, profile, and tie-rod cylinders
- Suitable for dynamic and static position monitoring in manufacturing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 550 mW reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CSHA5D31DZZ Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
