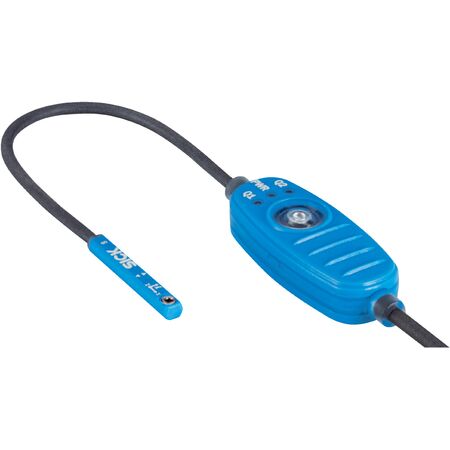

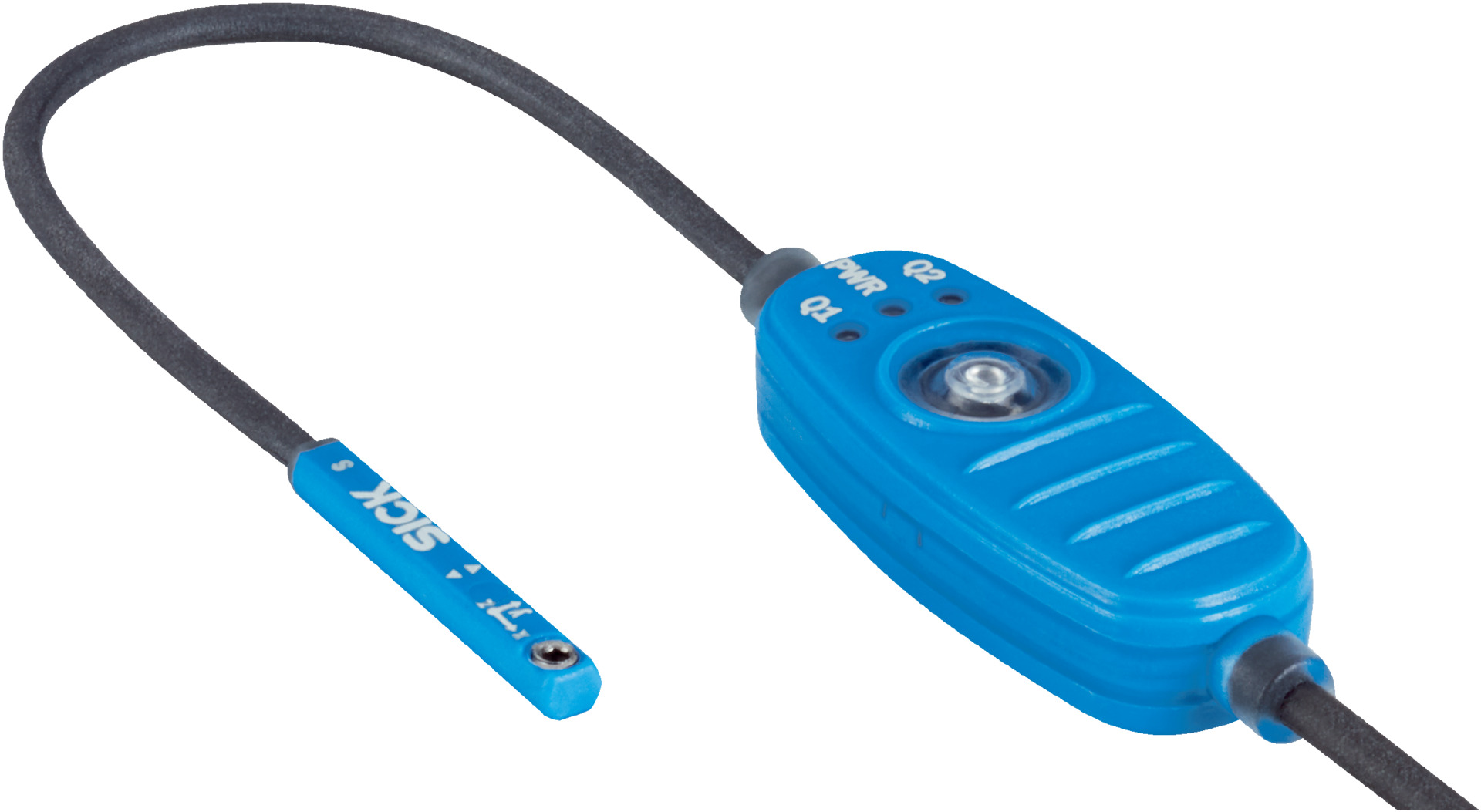

Magnetic Position Sensor | C-slot Cylinder Type | IP67 Rated | IO-Link Communication | by SICK
The Magnetic Position Sensor is designed for precise cylinder position detection in industrial automation. With a C-slot cylinder type compatibility and IP67 rated enclosure, it ensures robust performance in demanding environments. Ideal for pneumatic cylinder position sensing and factory automation, this sensor features dual push-pull switching outputs and advanced diagnostic functions for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Protection class: III
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3, cycle time 1 ms
- Switching output: 2 x push-pull PNP/NPN
- Enclosure rating: IP67
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Cable: PUR, 4-wire, 0.1 m length, axial outlet
- Housing material: Plastic PA, strengthened
- Control element material: Plastic TPU, reinforced
- Diagnostic features: Vibration, orientation, temperature, maximum acceleration, actuator diagnosis
- Dimensions (H x L x W): 25mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba
- Detection zone up to 50 mm
- 2 x push-pull switching outputs (PNP/NPN) with IO-Link communication
- IP67 rated enclosure for robust protection
- Embedded mounting in slot for protection
- Dynamic teach-in button for 1 to 3 switching points programming
- Diagnostic functions including vibration, orientation, temperature, and actuator diagnosis
- Short-circuit and reverse polarity protection
- Status indicator LED
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor mounting to ensure proper configuration and safety compliance.
Applications
- Industrial automation for cylinder position detection
- Pneumatic cylinder position sensing
- Factory automation requiring precise position feedback
- Robotics and actuator monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 550 mW reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Supports predictive maintenance through diagnostic functions, minimizing downtime and resource waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CSH15D31DZZ Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
