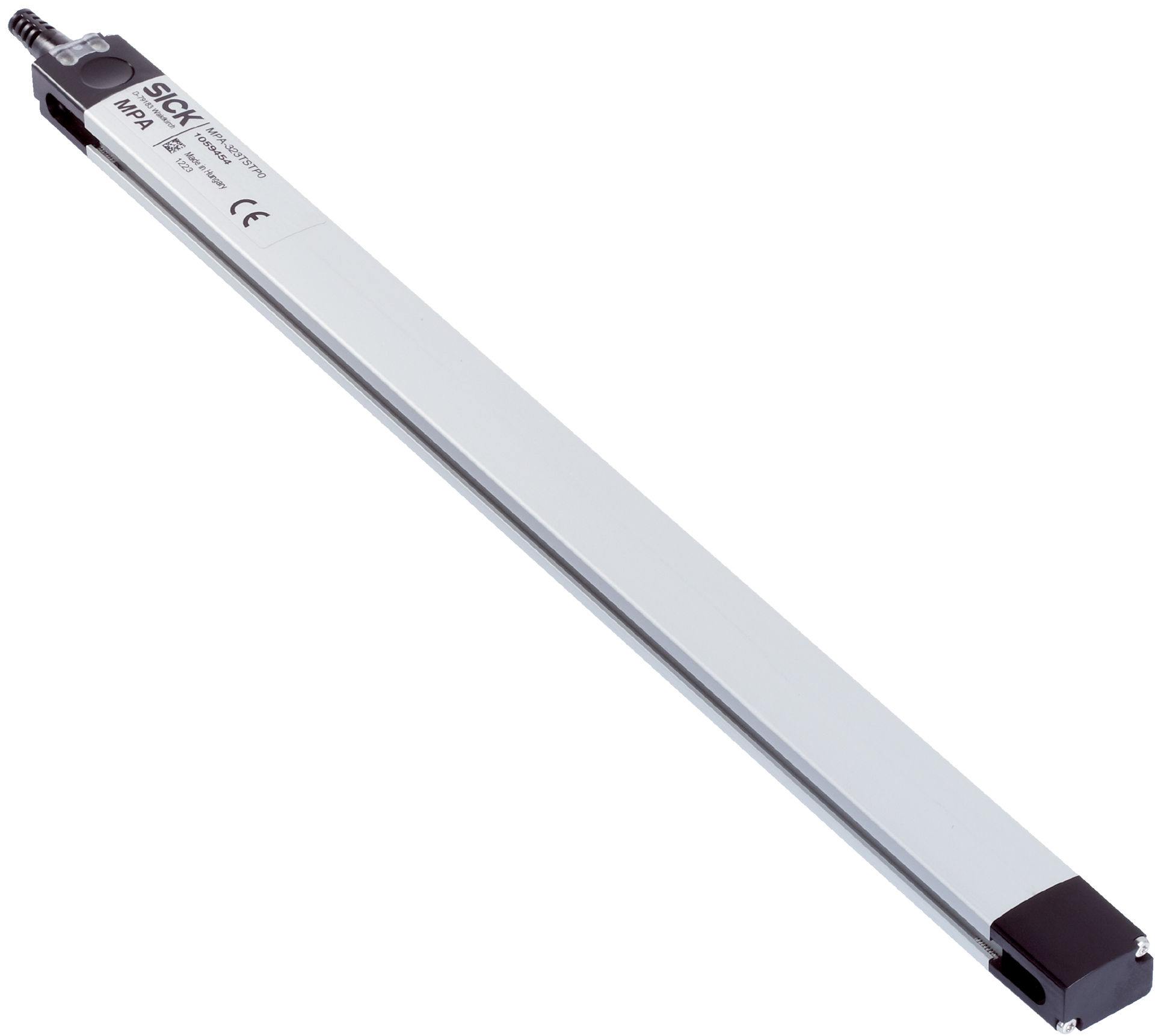

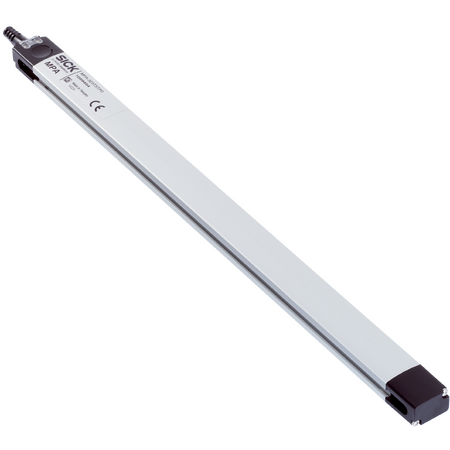

Magnetic Position Sensor | IO-Link & Analog Output | 107 mm Measuring Range | IP65/IP68 Rated | by SICK
The Magnetic Position Sensor is designed for precise position sensing in industrial automation, featuring IO-Link and analog output functions. With a measuring range of 107 mm and robust IP65 to IP68 protection, it's perfect for cylinder position monitoring in harsh environments. Built for reliability, it includes reverse polarity protection and a teach-in control panel for easy calibration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Position Sensor, IO-Link Position Sensor, Analog Position Sensor, Cylinder Position Sensor
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 35 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Magnetic field sensitivity: 2 mT to 15 mT
- Resolution: 0.03% FSR (max. ≥ 0.06 mm)
- Linearity error: 0.5 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1.15 ms
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Connection: Cable with M8 male connector, 4-pin, 0.3 m length
- Cable specifications: PUR, 0.08 mm² conductor cross section, 2.6 mm diameter
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- EMC compliant according to EN 60947-5-2
- Communication interface: IO-Link V1.0.1, COM2, 2.3 ms cycle time
- Dimensions (H x L x W): 30mm x 109mm x 30mm
- Weight: 0.3 kg
Key Features
- Universal cylinder type compatibility including round body, tie rod, T-slot, Festo, DSBC, SMC, CP96 cylinders
- Measuring range of 107 mm
- Analog and IO-Link output functions
- Electrical wiring: DC 4-wire
- Analog output voltage: 0 V to 10 V
- Analog output current: 4 mA to 20 mA
- Enclosure rating IP65, IP67, IP68 for robust protection
- Teach-in control panel for easy adjustment and resetting
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Communication interface IO-Link V1.0.1 with COM2 and 2.3 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration using the teach-in control panel.
Applications
- Industrial automation for position sensing
- Cylinder position monitoring in pneumatic systems
- Integration with IO-Link enabled control systems
- Use in harsh environments requiring IP65 to IP68 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (35 mA without load)
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPA-107THTP0 Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
