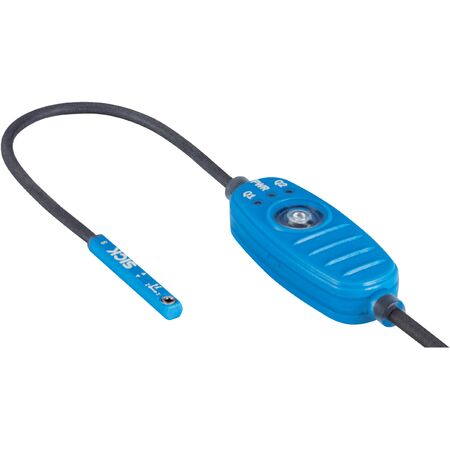

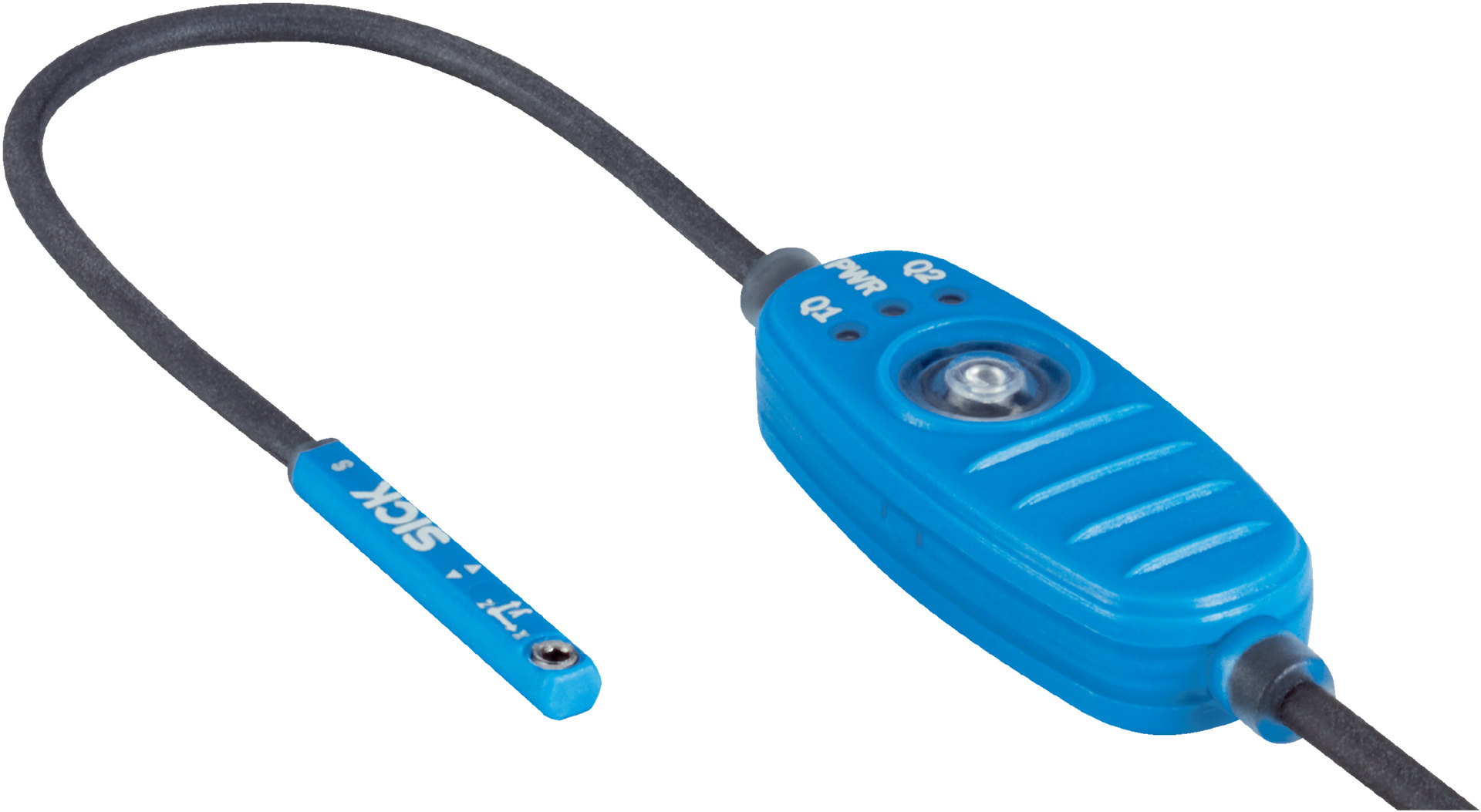

Magnetic Position Sensor | IO-Link Interface | IP67 Rated | 50mm Detection Zone | by SICK
The Magnetic Position Sensor is designed for precise cylinder position sensing in industrial automation. With an IO-Link interface and an IP67 rated enclosure, it ensures robust performance in demanding environments. Ideal for pneumatic and hydraulic cylinder monitoring, this sensor offers dynamic teach-in capabilities and reliable feedback for process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Protection class: III
- Response time: 0.175 s before availability
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3
- Process data length: 32 Bit
- Cable: 4-wire, 0.5 m, PUR jacket
- Housing material: Plastic, PA strengthened
- Control element material: Plastic, TPU reinforced
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba
- Detection zone up to 50 mm
- 2 x push-pull switching outputs (PNP/NPN) with IO-Link interface
- IP67 rated enclosure for robust protection
- Dynamic and manual teach-in for up to 3 switching points
- Configurable overrun distance and hysteresis
- Actuator diagnosis and status indication via LED
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +70°C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration of IO-Link communication.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise position feedback
- Process control systems with IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 550 mW)
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MPS-G50CSH53E31DZZ Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
