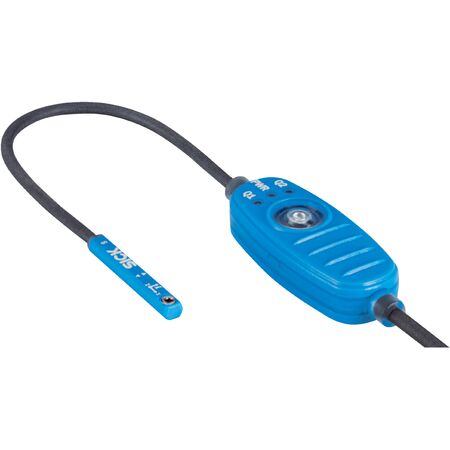

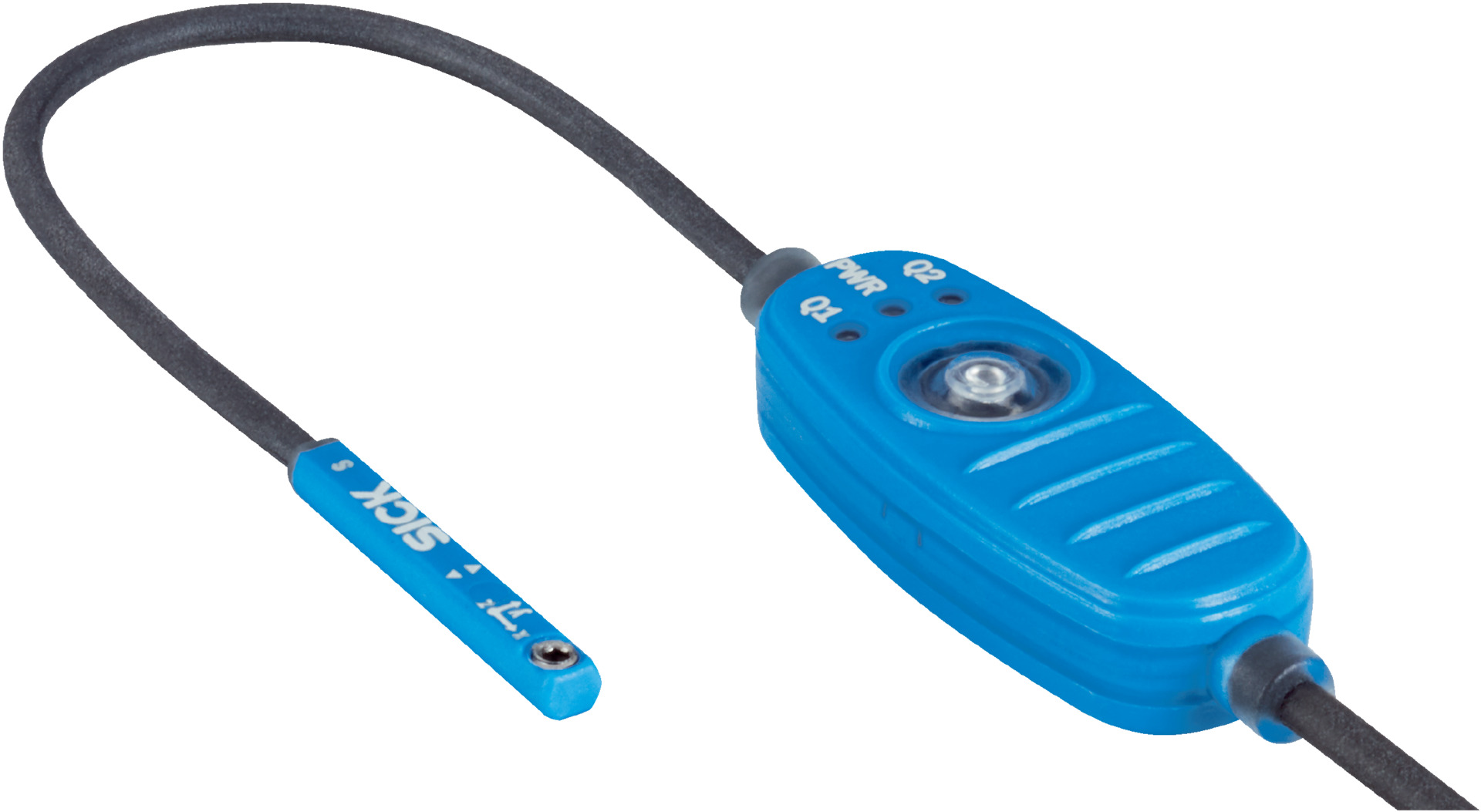

Magnetic Position Sensor | IO-Link Communication | IP67 Rated | 50mm Detection Zone | by SICK
The Magnetic Position Sensor is designed for precise cylinder position detection in industrial automation. With IO-Link communication and an IP67 rated enclosure, it ensures robust performance in various environments. Ideal for use with Festo, Zimmer, and Gimatic cylinders, this sensor features a dynamic teach-in button for easy programming and diagnostic functions for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Protection class: III
- Time delay before availability: 0.175 s
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3, cycle time 1 ms
- Process data length: 32 Bit
- Connection type: 4-wire cable, 0.1 m length, PUR jacket
- Operating temperature range: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type with completely embedded mounting for protection
- Detection zone up to 50 mm with configurable overrun distance and hysteresis
- 2 x push-pull PNP/NPN switching outputs with IO-Link communication
- IP67 rated enclosure for robust protection
- Dynamic teach-in button for 1 to 3 switching points and manual programming
- Diagnostic functions including vibration, orientation, temperature, and actuator diagnosis
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting in cylinder slots.
Applications
- Industrial automation for cylinder position detection
- Use with Festo, Zimmer, Gimatic cylinders
- Suitable for T-slot, round body, profile, and tie-rod cylinders
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 550 mW)
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CFH15D31DZZ Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
