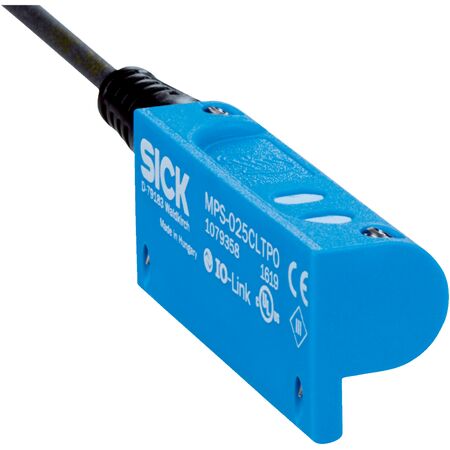

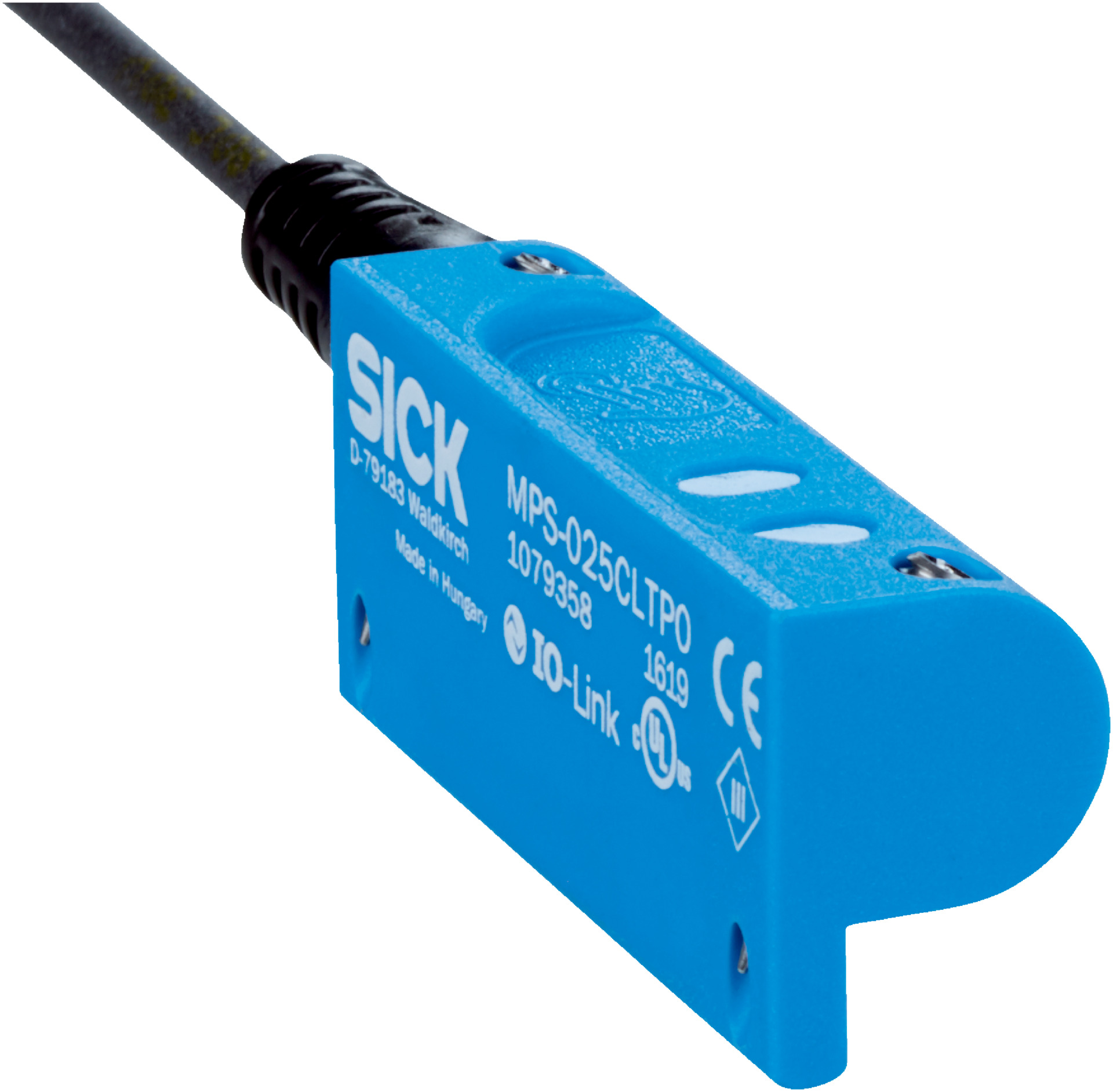

Magnetic Position Sensor MPS-100CLTP0 | IO-Link Communication | IP67 Rated | 100 mm Measuring Range | by SICK
The Magnetic Position Sensor MPS-100CLTP0 is designed for precise position sensing in industrial automation, featuring IO-Link communication and an IP67 rated enclosure for dust and water protection. With a measuring range of 100 mm and a resolution of ≥ 50 µm, it's perfect for cylinder position measurement in pneumatic systems, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.1 mm typical
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Communication interface: IO-Link V1.1, COM3
- Process data length: 16 Bit
- Process data structure includes switching signals and position data
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Cable diameter: 2.6 mm, PUR material
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-7
- Dimensions (H x L x W): 20mm x 115mm x 20mm
- Weight: 0.2 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 100 mm
- Push-pull switching output with PNP/NPN options
- Analog output options: 0 V to 10 V voltage or 4 mA to 20 mA current
- IO-Link V1.1 communication interface with 1 ms cycle time
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for position sensing
- Cylinder position measurement in pneumatic systems
- Integration with SMC rail cylinders and profile cylinders
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
