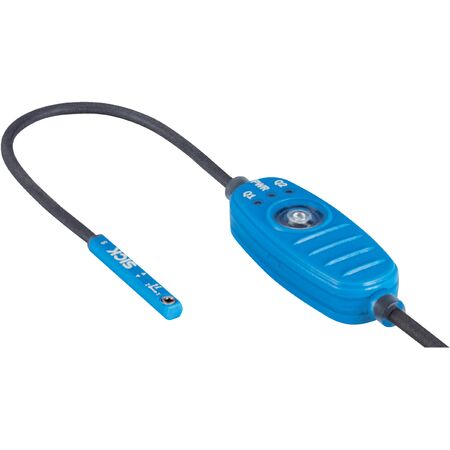

Magnetic Position Sensor MPS-G50CSH13E31DZZ | IO-Link Communication | IP67 Rated | 50mm Detection Zone | by SICK
The Magnetic Position Sensor MPS-G50CSH13E31DZZ is designed for precise cylinder position sensing in industrial automation. With an IO-Link communication interface and an IP67 rated enclosure, it ensures robust performance in demanding environments. Ideal for pneumatic and hydraulic cylinder monitoring, this sensor offers a detection zone of up to 50 mm and features dynamic teach-in for flexible configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3
- Process data length: 32 Bit
- Operating temperature: -20 °C to +70 °C
- Protection class: III
- Enclosure rating: IP67
- Connection: 4-wire cable, 0.1 m length, axial outlet
- Material: Plastic housing (PA strengthened), PUR cable, TPU reinforced control element
- Dimensions (H x L x W): 15mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba
- Detection zone up to 50 mm
- 2 x push-pull switching outputs (PNP/NPN)
- IO-Link communication interface with configuration for up to 8 switching points
- IP67 rated enclosure for robust protection
- Dynamic and manual teach-in for 1 to 3 switching points
- Actuator diagnosis and status indication via LED
- Reverse polarity and short-circuit protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and secure electrical connections.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise position feedback
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables precise control and monitoring to reduce energy waste in automation systems
- Durable IP67 housing reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CSH13E31DZZ Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
