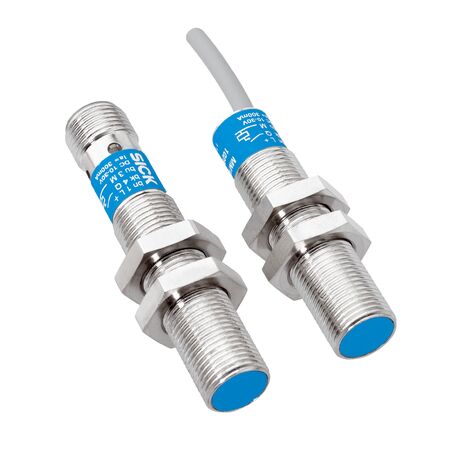

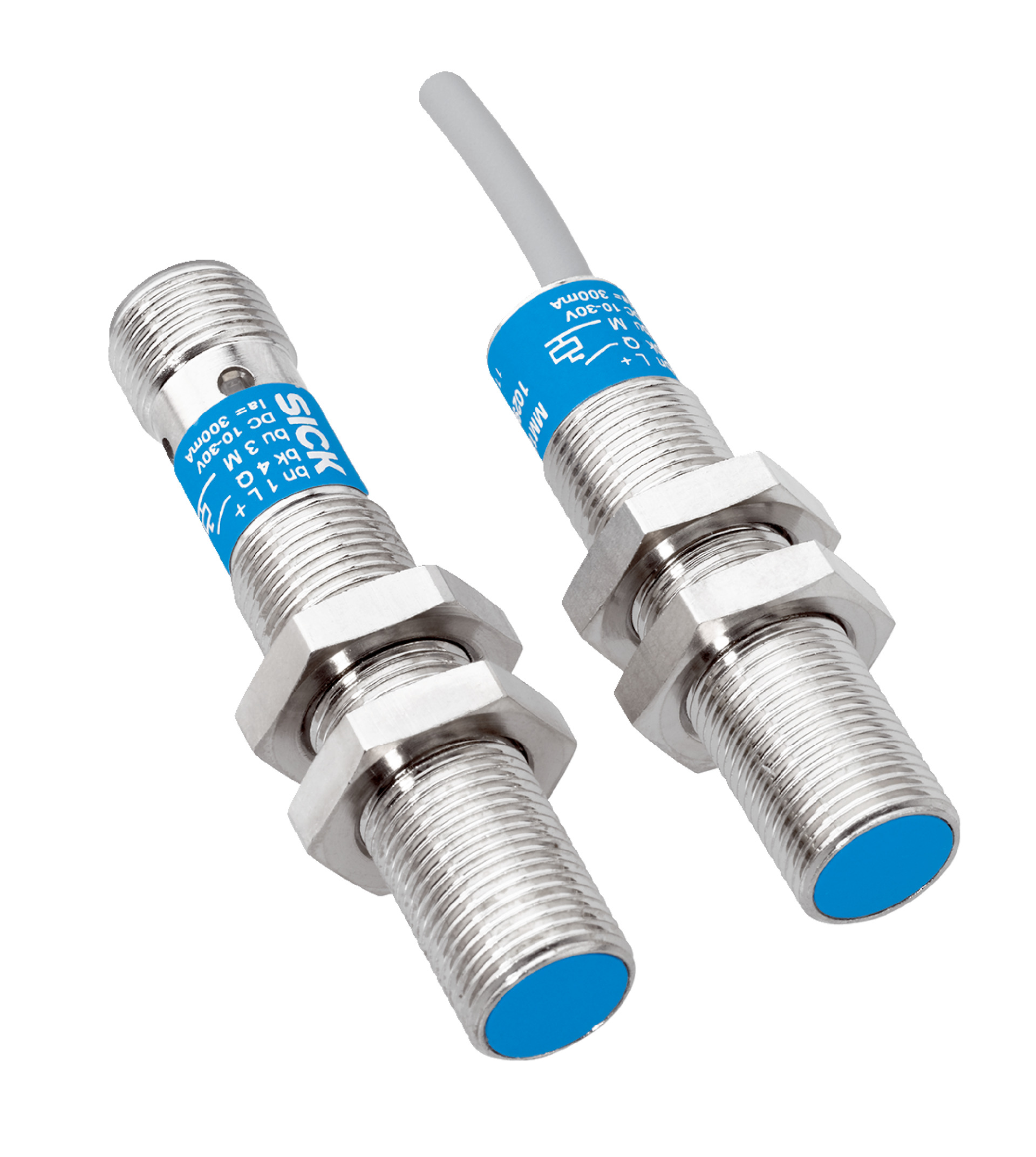

Magnetic Proximity Sensor M12 | 5mm to 90mm Sensing Range | IP67 Rated | 1000Hz Switching Frequency | by SICK
The Magnetic Proximity Sensor M12 is designed for precise position sensing in industrial automation, featuring a sensing range from 5 mm to 90 mm and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety and control systems that require non-contact sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 5 mm to 90 mm
- Safe sensing range Sa: 72.9 mm
- Magnetic sensitivity: 0.6 mT
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 30 ms
- Hysteresis: ≤ 25%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Metal, Nickel-plated brass
- Housing length: 62.5 mm
- Thread length: 40 mm
- Tightening torque, max.: ≤ 7 Nm
- Dimensions (H x L x W): 62.5mm x 62.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Advanced metal housing with nickel-plated brass for durability
- Sensing range from 5 mm to 90 mm with safe sensing range of 72.9 mm
- High switching frequency of 1,000 Hz for fast response
- IP67 rated enclosure for dust and water resistance
- PNP switching output with normally open (NO) function
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and magnetic sensor systems to ensure proper connection and safety compliance.
Applications
- Industrial automation for position sensing
- Magnetic field detection in manufacturing processes
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product lifespan reducing waste
- Energy-efficient operation with low current consumption (10 mA)
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MM12-90APS-ZC0 Magnetic Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
