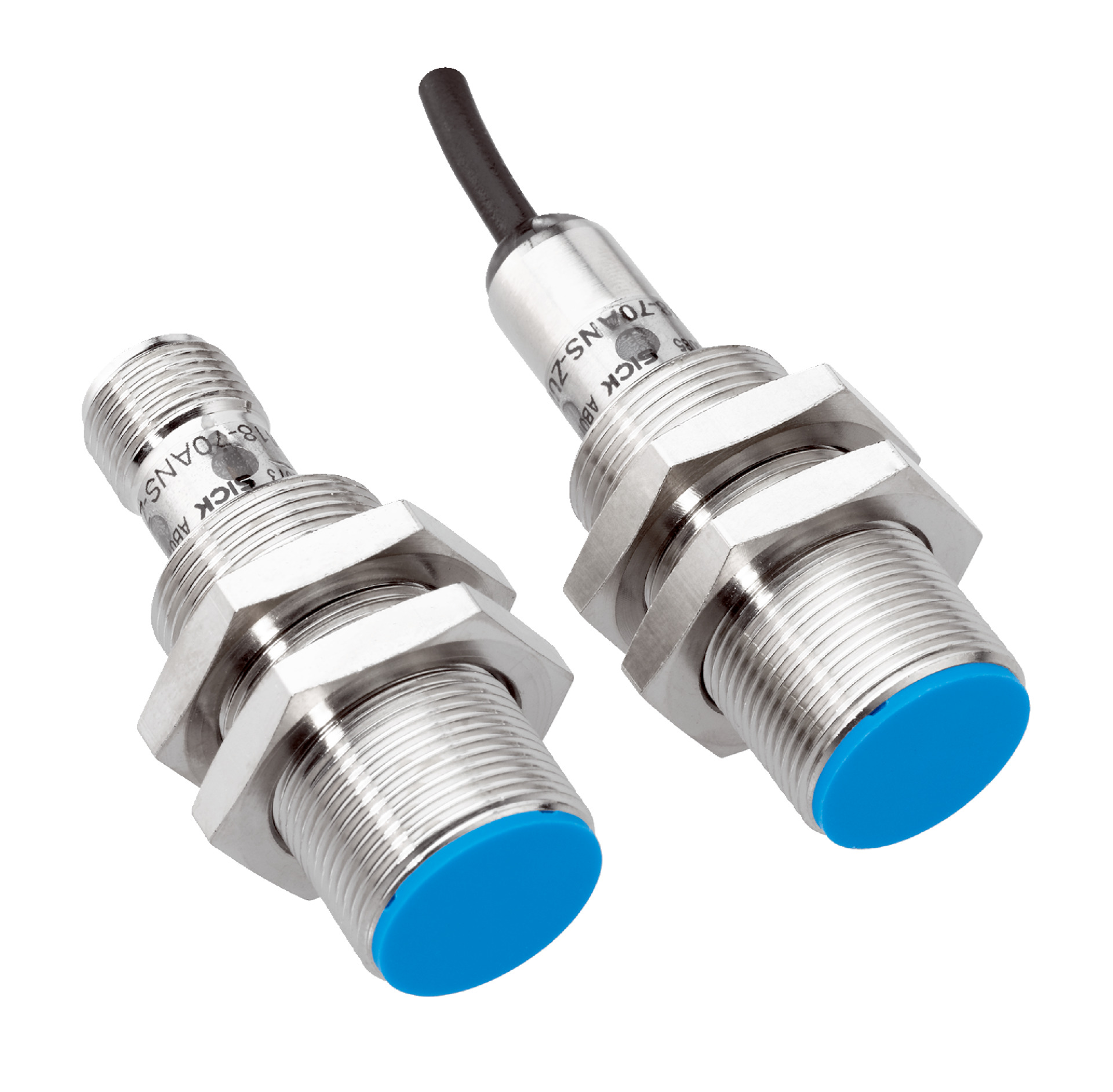

Magnetic Proximity Sensor M18 | 70mm Sensing Range | IP67 Rated | 5000 Hz Switching Frequency | by SICK
The Magnetic Proximity Sensor M18 is designed for precise position sensing with a sensing range of up to 70 mm and a safe sensing range of 56.7 mm. Ideal for industrial automation and safety control systems, this sensor features a high switching frequency of 5,000 Hz and an IP67 rated enclosure for dust and water protection. Built with a durable metal housing, it ensures longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Proximity Sensor M18 | 70mm Sensing Range | IP67 Rated | 5000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040073
Alternatively Known As: Magnetic Proximity Sensor M18, Magnetic Sensor 70mm Range, NPN Magnetic Sensor
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 0 mm to 70 mm
- Safe sensing range Sa: 56.7 mm
- Magnetic sensitivity: 0.7 mT
- Switching frequency: 5,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Housing length: 50 mm
- Thread length: 32 mm
- Tightening torque max: 40 Nm
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range up to 70 mm with safe sensing range of 56.7 mm
- High switching frequency of 5,000 Hz
- NPN normally open (NO) output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Reverse polarity, short-circuit, and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Magnetic field detection in manufacturing processes
- Safety and control systems requiring magnetic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product lifespan reducing waste
- Low power consumption with efficient DC 3-wire operation
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MM18-70ANS-ZCK Magnetic Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
