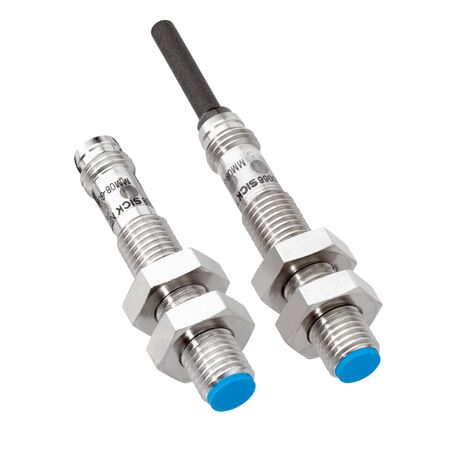

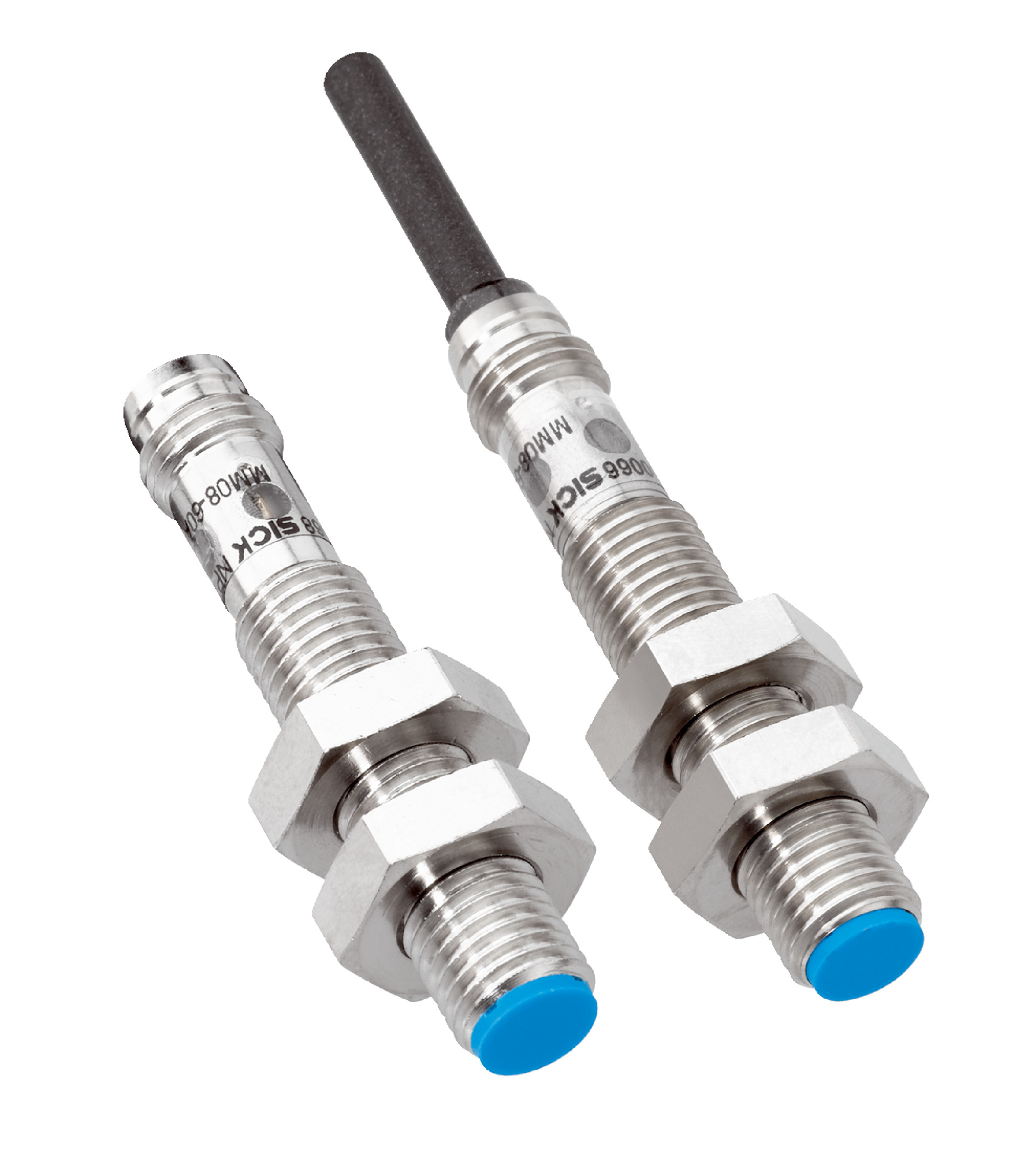

Magnetic Proximity Sensor M8 | Short-Body Metal Housing | 60 mm Sensing Range | IP67 Rated | by SICK
The Magnetic Proximity Sensor M8 is designed for precise position sensing in industrial automation, featuring a robust short-body metal housing and a sensing range of up to 60 mm. With a high switching frequency of 1,000 Hz and IP67 protection, it’s perfect for harsh environments. Ideal for manufacturing processes, this sensor ensures reliable performance with reverse polarity and short-circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Proximity Sensor M8 | Short-Body Metal Housing | 60 mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040067
Alternatively Known As: Magnetic Proximity Sensor M8, M8 Magnetic Sensor, SICK Magnetic Sensor MM08, Proximity Switch M8
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 1,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 46 mm
- Thread length: 29.5 mm
- Tightening torque max: 6 Nm
- Dimensions (H x L x W): 8mm x 46mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body metal housing with nickel-plated brass
- M8 x 1 thread size with 60 mm sensing range
- PNP switching output with NO function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for position sensing
- Magnetic field detection in manufacturing processes
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption with 10 mA current draw
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MM08-60APS-ZTK Magnetic Proximity Sensor is available for immediate purchase, ideal for industrial automation and magnetic sensing applications.
