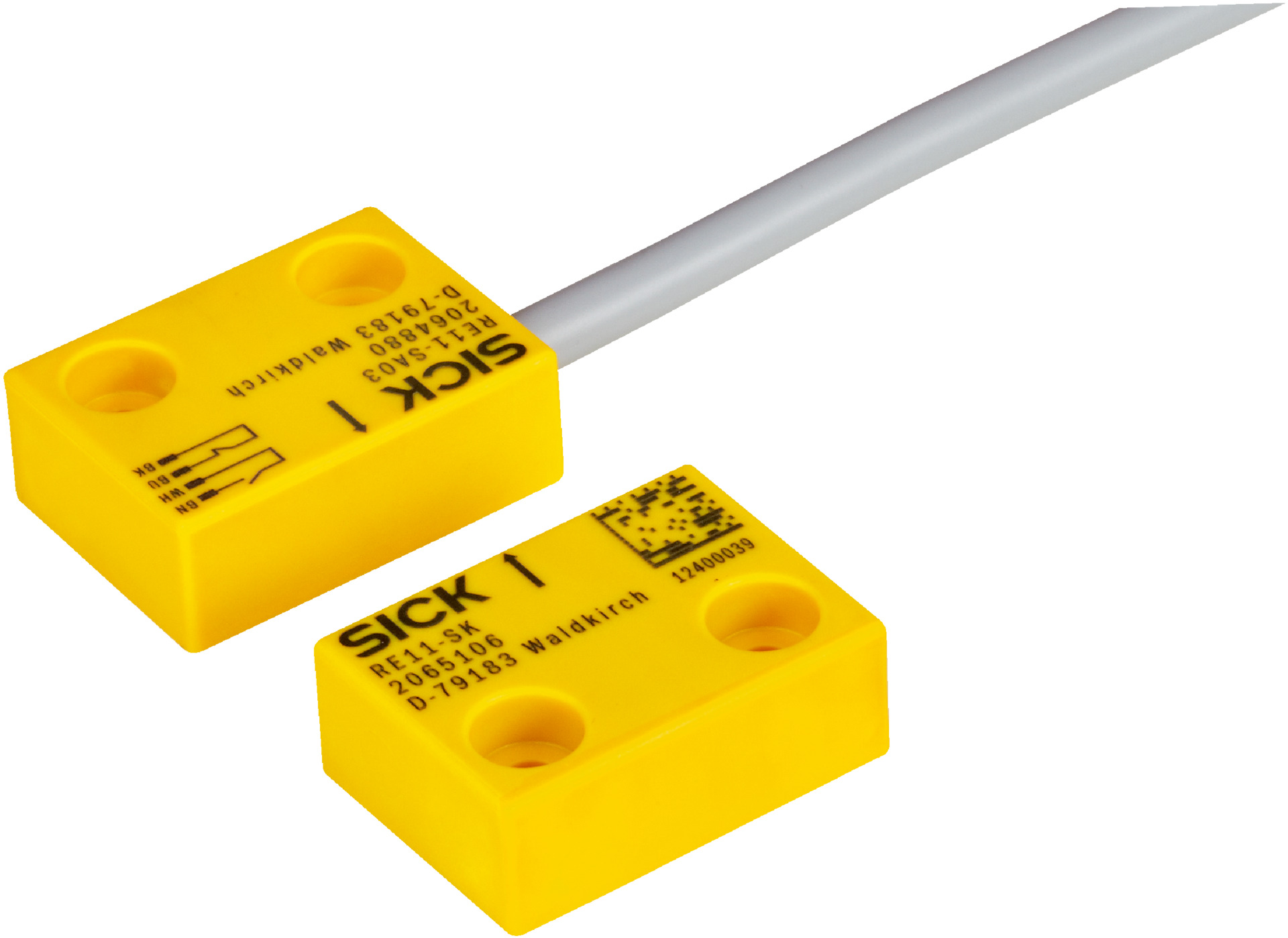

Magnetic Safety Sensor RE11-SA05 | IP67 Rated | VISTAL® Housing | 3mm Switch On Distance | by SICK
The Magnetic Safety Sensor RE11-SA05 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and a reliable magnetic actuation principle. With 1 Normally Open and 1 Normally Closed contact, it ensures safe operation in automation and control systems, operating effectively in temperatures from -30°C to +60°C. Ideal for machine safety monitoring, this sensor offers durability and low power consumption, making it a smart choice for safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Contacts: 1 N/O and 1 N/C
- Signaling contacts: 0
- Assured switch on distance (Sao): 3 mm
- Assured switch off distance (Sar): 12 mm
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable
- Cable length: 5 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 12 x cable diameter
- Bend radius moving cable: > 15 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 400 mA
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +60°C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor with actuator
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance of 3 mm and switch off distance of 12 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance of 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with safety standards.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring
- Automation and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient reed contact switching
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RE11-SA05 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
