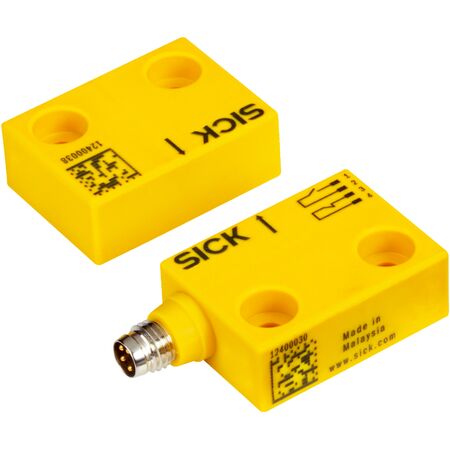

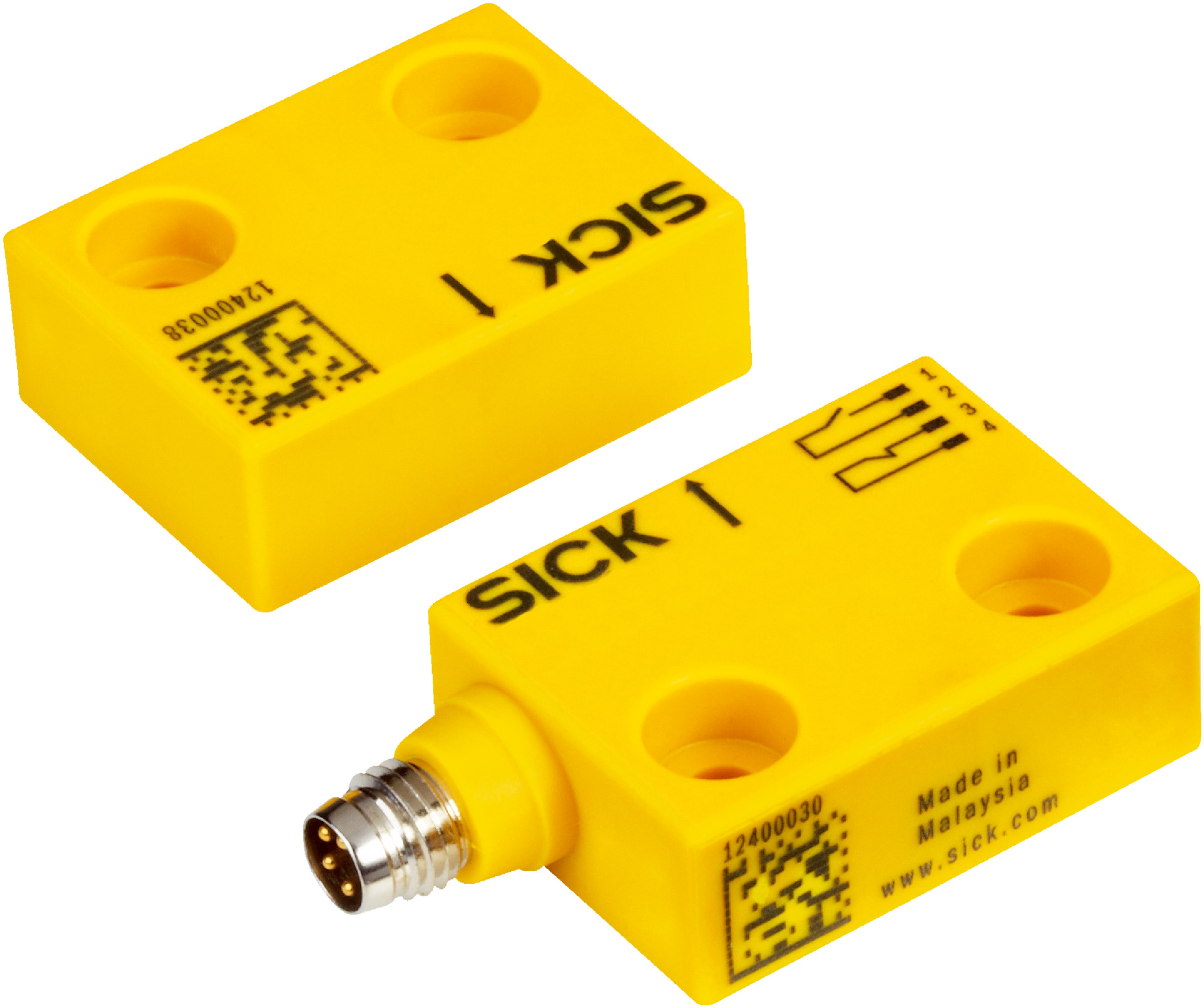

Magnetic Safety Sensor RE11-SAC | IP67 Rated | 1 N/O & 1 N/C Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE11-SAC is designed for reliable position detection in industrial automation. Featuring a robust IP67 rating for dust and water protection, this sensor includes 1 Normally Open and 1 Normally Closed contact, ensuring versatile integration into safety-related control systems. With a durable VISTAL® housing and assured switch distances, it’s perfect for manufacturing processes and machine control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Contacts: 1 N/O and 1 N/C
- Assured switch on distance (Sao): 3 mm
- Assured switch off distance (Sar): 12 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 400 mA
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Housing material: VISTAL®
- Connection type: Plug connector, M8, 4-pin
- Coupling nut material: Nickel-plated brass
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance of 3 mm and switch off distance of 12 mm
- Rectangular design with VISTAL® housing
- IP67 rated for dust and water protection
- Shock resistance up to 30 g and vibration resistance 10 Hz to 55 Hz
- Plug connector M8, 4-pin with nickel-plated brass coupling nut
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and integration into safety-related control systems.
Applications
- Industrial automation for position detection
- Safety-related machine control systems
- Magnetic sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with switching voltage ≤ 30 V DC
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RE11-SAC Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial automation and safety applications.
