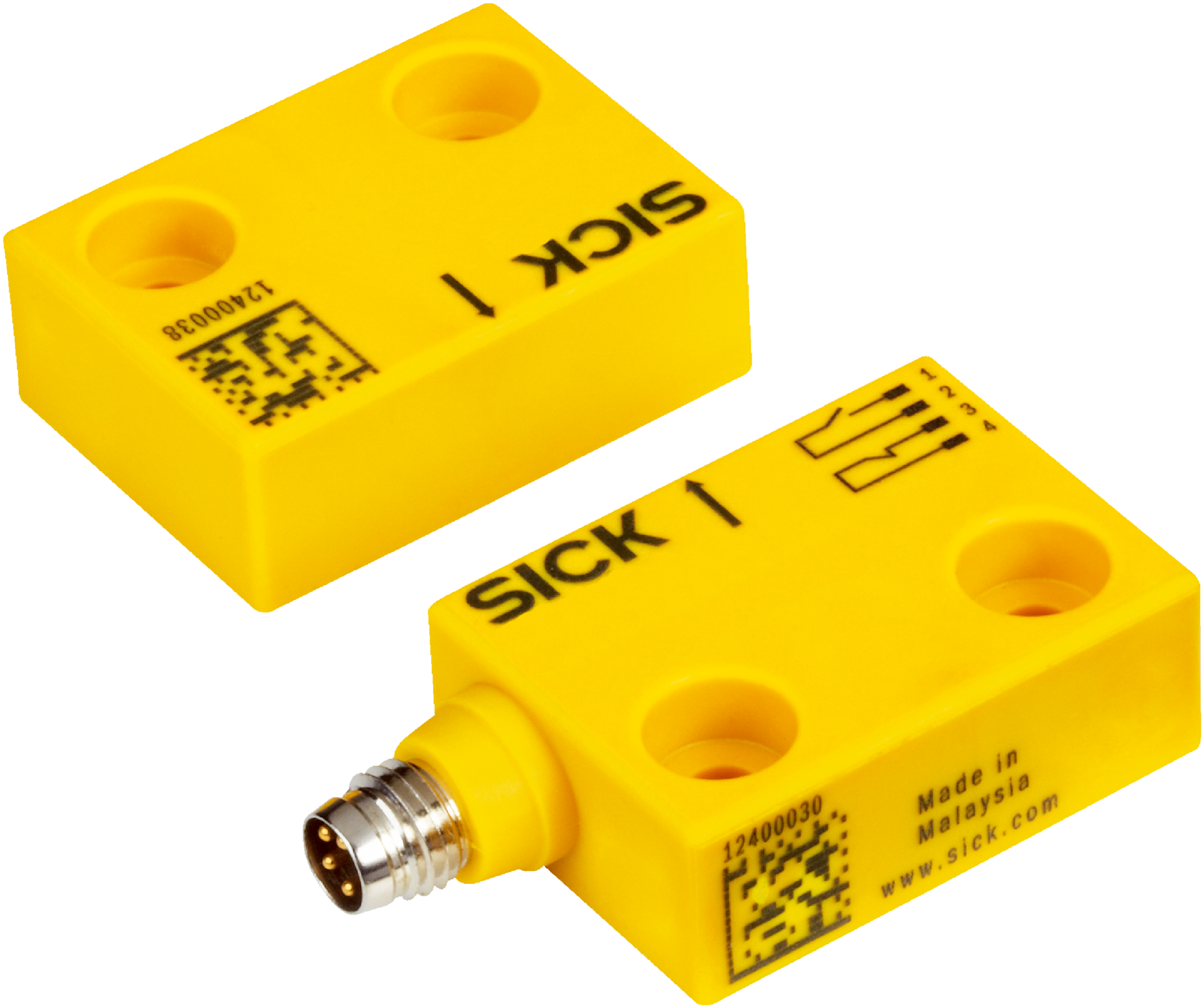

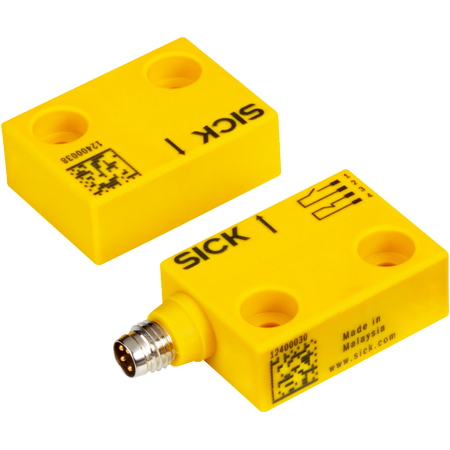

Magnetic Safety Sensor RE11-SAC | IP67 Rated | 1 N/O & 1 N/C Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE11-SAC is designed for industrial safety systems, featuring a robust IP67 rated enclosure and a reliable actuator system. With 1 Normally Open and 1 Normally Closed contact, it ensures safe machine guarding and automation control. Built to withstand harsh environments, it operates effectively in temperatures from -30°C to +60°C, making it ideal for various applications requiring stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor, Magnetic Safety Switch, RE11-SAC Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Contacts: 1 N/O and 1 N/C
- Assured switch on distance (Sao): 3 mm
- Assured switch off distance (Sar): 12 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 400 mA
- Connection type: Plug connector, M8, 4-pin
- Coupling nut material: Nickel-plated brass
- Housing material: VISTAL®
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Safety type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance (Sao) of 3 mm and switch off distance (Sar) of 12 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g for 11 ms and vibration resistance from 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration into safety-related control systems.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation and control systems with safety requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Low power consumption with reed contact output
- Supports safety systems that prevent accidents and reduce environmental hazards
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK RE11-SAC Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
