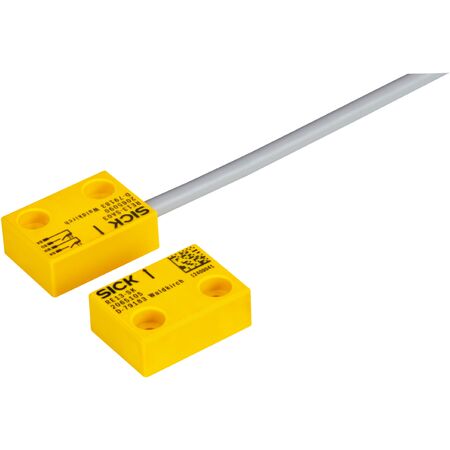

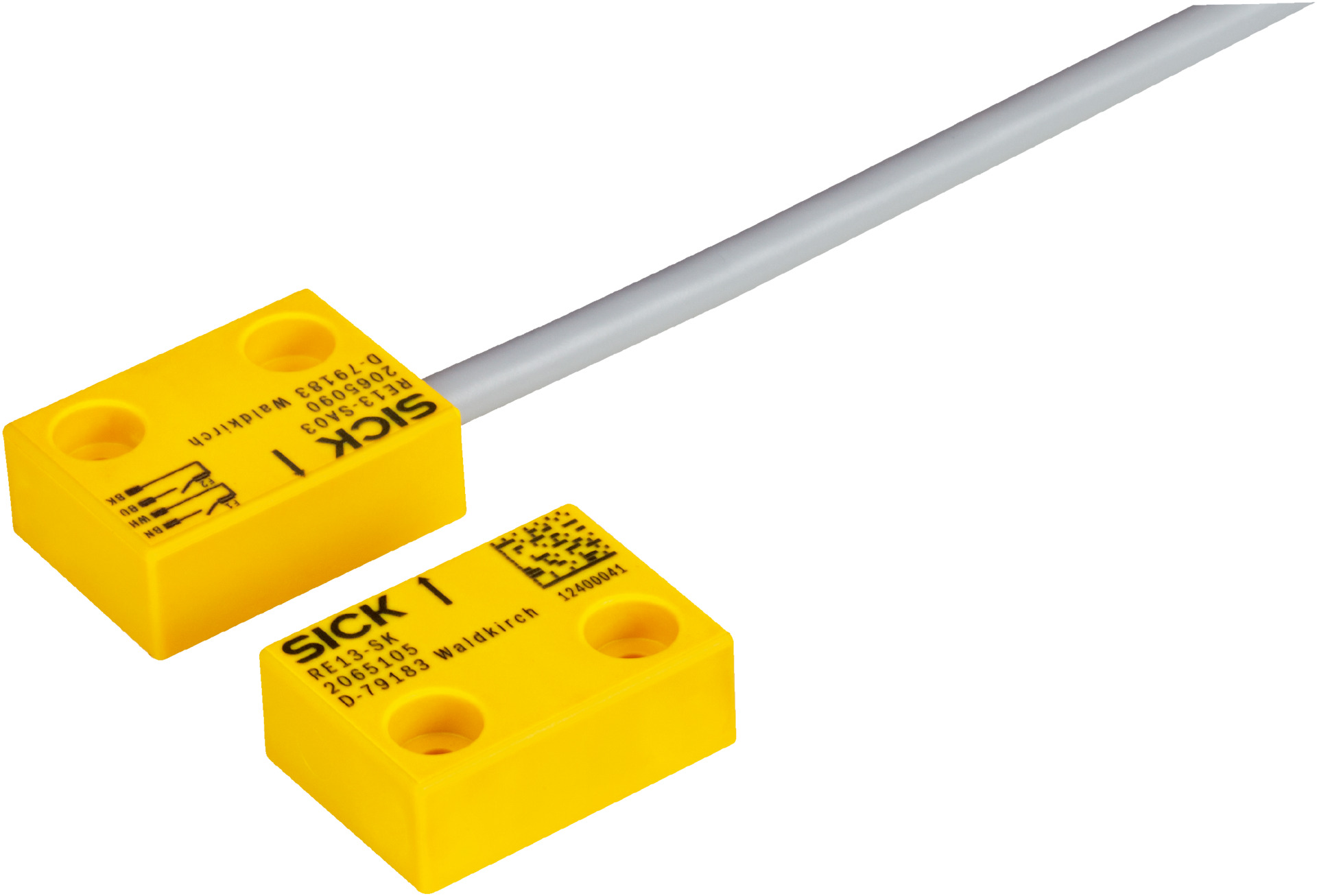

Magnetic Safety Sensor RE13-SA03 | IP67 Rated | 2 N/O Contacts | -30°C to +60°C Operating Temp | by SICK
The Magnetic Safety Sensor RE13-SA03 is designed for industrial safety systems, featuring a robust magnetic sensor principle with 2 normally open contacts. With an IP67 rating for dust and water protection, it operates effectively in temperatures ranging from -30°C to +60°C, making it ideal for machine safety monitoring and automation applications. Its durable design ensures long-lasting performance, reducing the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable, 3 m length, 5.8 mm diameter, PVC material
- Conductor cross section: 0.25 mm²
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.2 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance of 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper sensor function.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring
- Automation and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient reed contact switching
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK RE13-SA03 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
