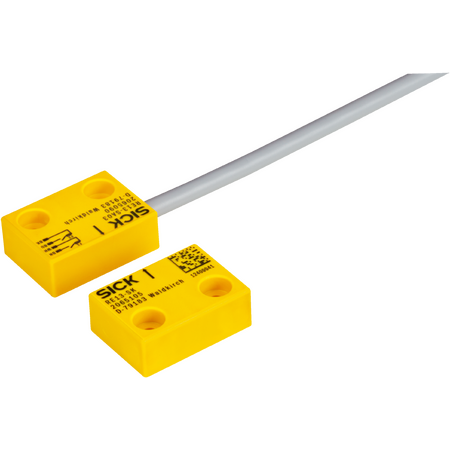

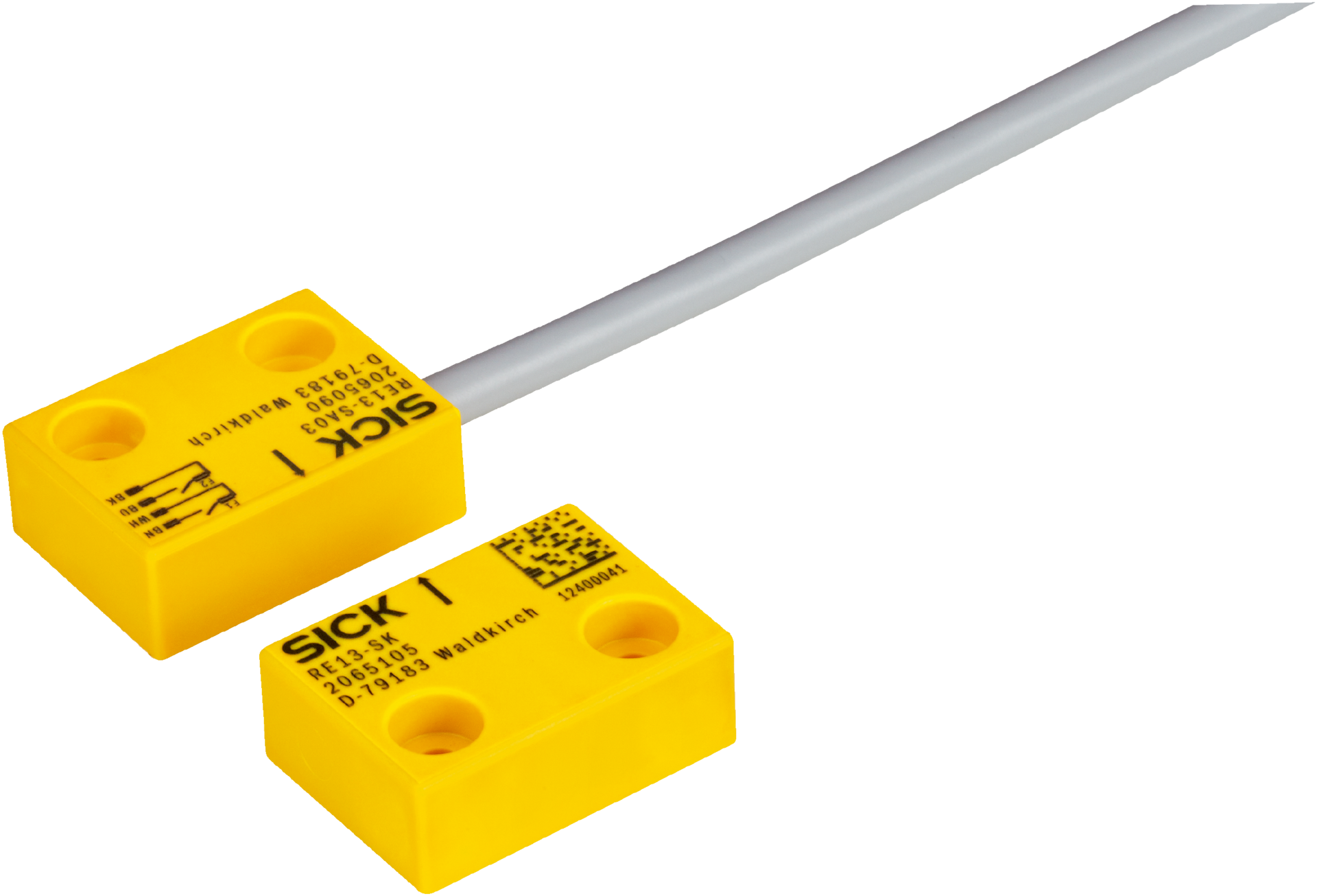

Magnetic Safety Sensor RE13-SA03 | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE13-SA03 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and two normally open contacts. With an assured switch on distance of 7 mm and a switch off distance of 20 mm, this sensor is perfect for machine guarding and automation applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor RE13-SA03, SICK Magnetic Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable, 3 m length, 5.8 mm diameter, PVC insulation
- Housing material: VISTAL®
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.2 kg
Key Features
- Magnetic sensor with actuator system
- Two normally open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 55 Hz
- 3 meter PVC cable with copper conductor
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation systems with safety monitoring needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with reed contact output
- PVC cable with copper conductor designed for long service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RE13-SA03 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
