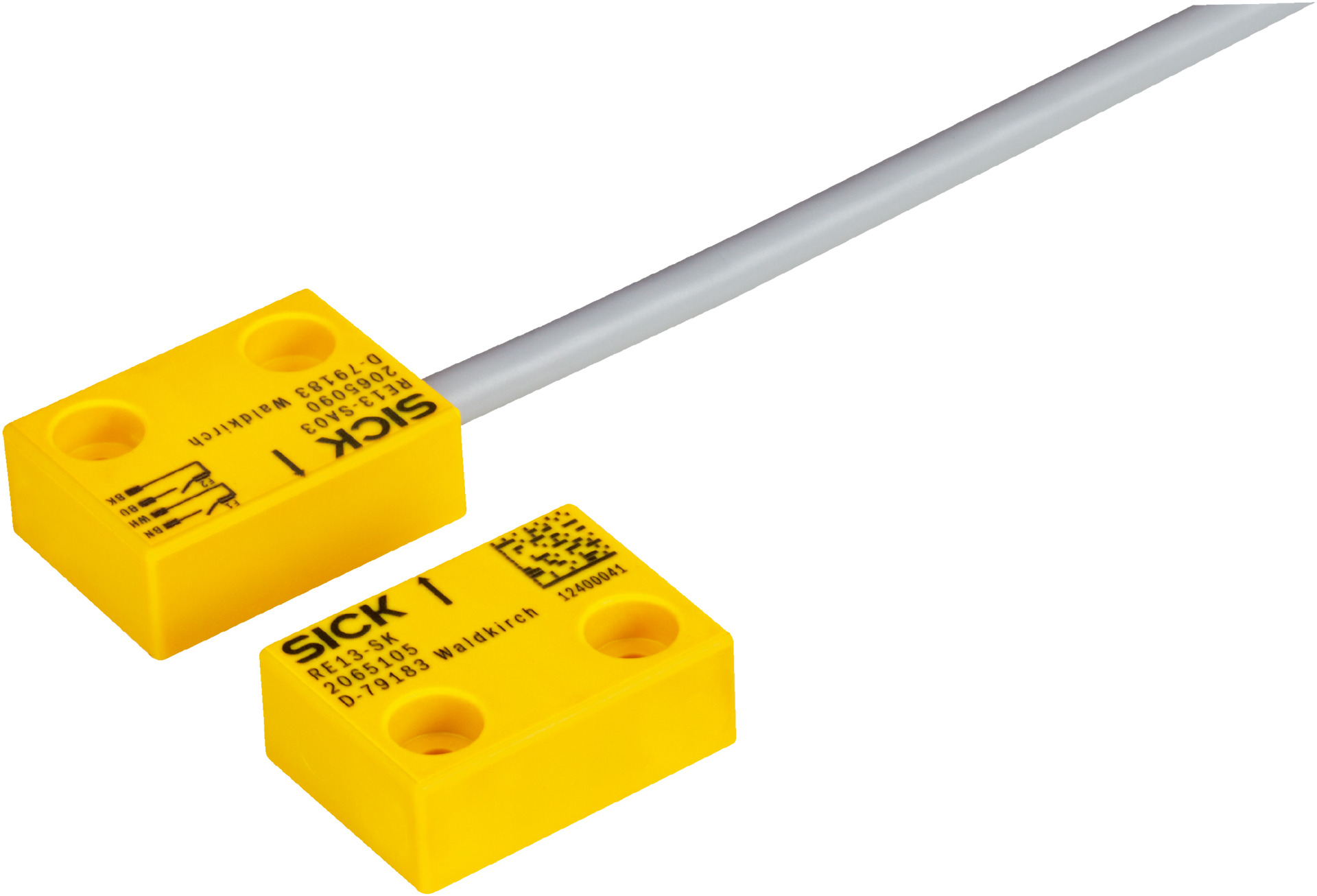

Magnetic Safety Sensor RE13-SA05 | IP67 Rated | 2 N/O Contacts | -30°C to +60°C | by SICK
The Magnetic Safety Sensor RE13-SA05 is designed for industrial automation, featuring a robust IP67 rated enclosure and a magnetic sensor principle with 2 normally open contacts. With an assured switch on distance of 7 mm and a wide operating temperature range from -30°C to +60°C, this sensor is perfect for machine safety systems and applications requiring reliable safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable
- Cable length: 5 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Housing material: VISTAL®
- Safety type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts
- Assured switch on distance Sao: 7 mm
- Assured switch off distance Sar: 20 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g, 11 ms and vibration resistance 10 Hz to 55 Hz
- Cable connection with 5 m length, PVC material, copper conductor
- Reed contact output type with switching voltage ≤ 30 V DC and current ≤ 100 mA
- Certified with EU, UK, China-RoHS, cULus, TÜV, and other approvals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with relevant safety standards.
Applications
- Industrial automation for safety monitoring
- Machine safety systems requiring magnetic sensors
- Applications needing Type 4 safety sensors with low coding level
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient reed contact switching
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RE13-SA05 Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
