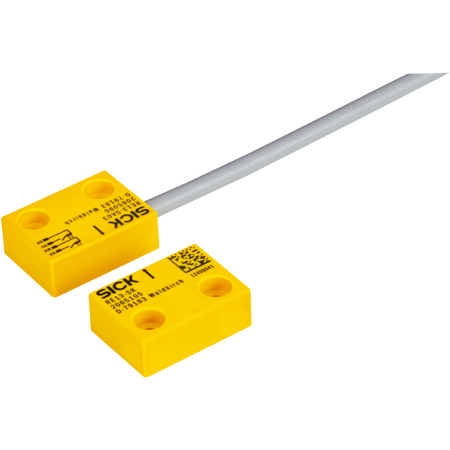

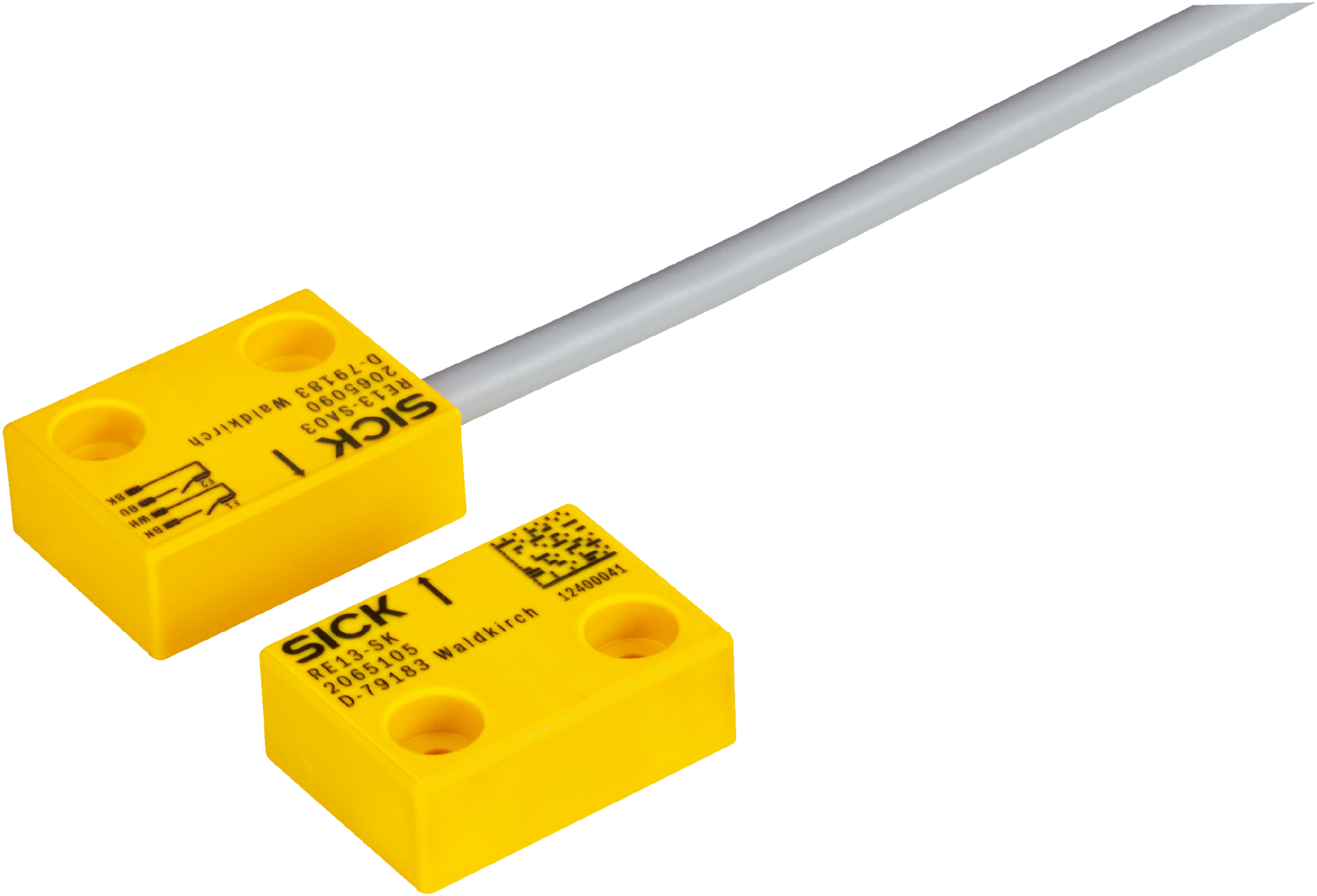

Magnetic Safety Sensor RE13-SA05 | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE13-SA05 is designed for reliable safety monitoring in industrial automation, featuring a robust IP67 rated enclosure and two normally open contacts. With an assured switch on distance of 7 mm and a switch off distance of 20 mm, this sensor is perfect for machine guarding and access control applications, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Switch, Magnetic Safety Sensor RE13-SA05, Safety Sensor with Actuator
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable with 5 m length, 5.8 mm diameter, PVC material
- Housing material: VISTAL®
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor with actuator system
- Two normally open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 55 Hz
- Cable connection with 5 m PVC cable and copper conductor
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and safety standards to ensure compliance and proper function.
Applications
- Safety monitoring in industrial automation
- Machine guarding and access control
- Position detection in safety circuits
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption with reed contact output
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK RE13-SA05 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
