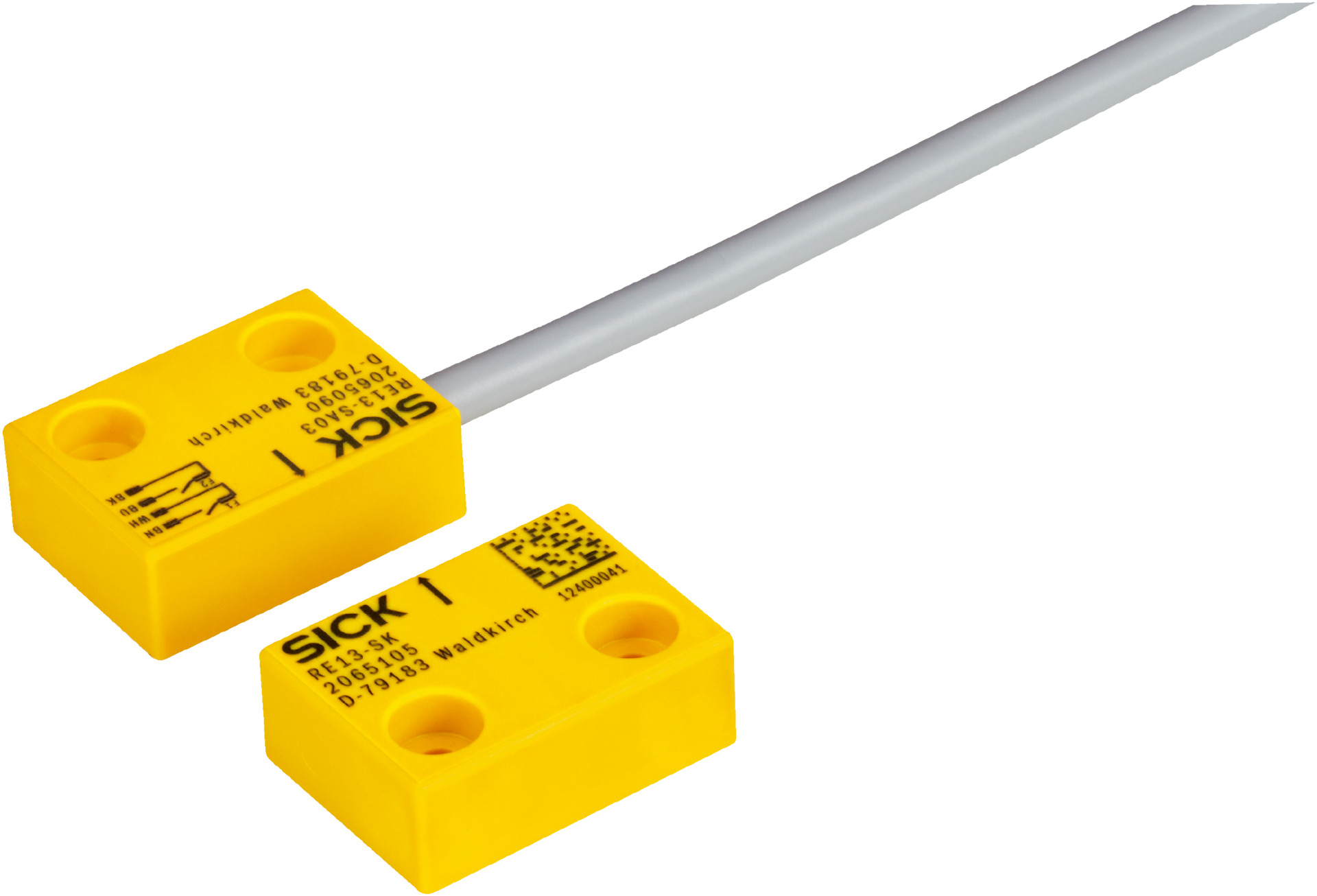

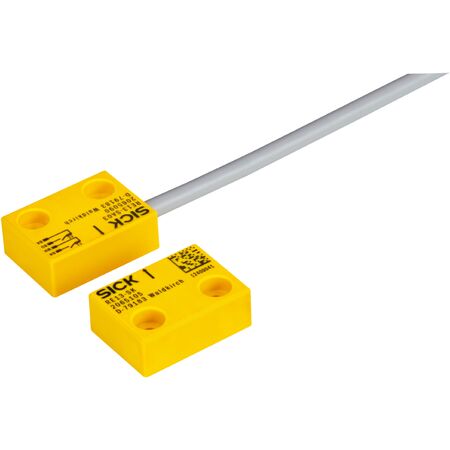

Magnetic Safety Sensor RE13-SA64 | IP67 Rated | 2 N/O Contacts | -30°C to +60°C Operating Temp | by SICK
The Magnetic Safety Sensor RE13-SA64 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and a magnetic sensor principle with 2 normally open contacts. With an assured switch on distance of 7 mm and a switch off distance of 20 mm, this sensor is perfect for machine safety monitoring and automation systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Actuator coding level: Low coding level (EN ISO 14119)
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable with M12 male connector, 4-pin
- Cable length: 0.2 m
- Cable diameter: 5.8 mm
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
- Safe series connection with Flexi Loop including diagnostics
- Type 4 safety rating according to EN ISO 14119
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring and control
- Automation systems with safety interlocks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces environmental damage and extends product life
- Low power consumption with reed contact output
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RE13-SA64 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
