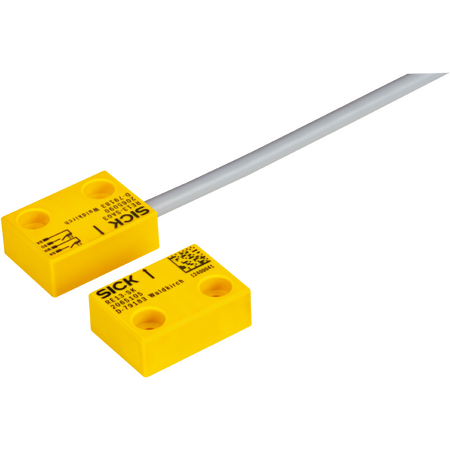

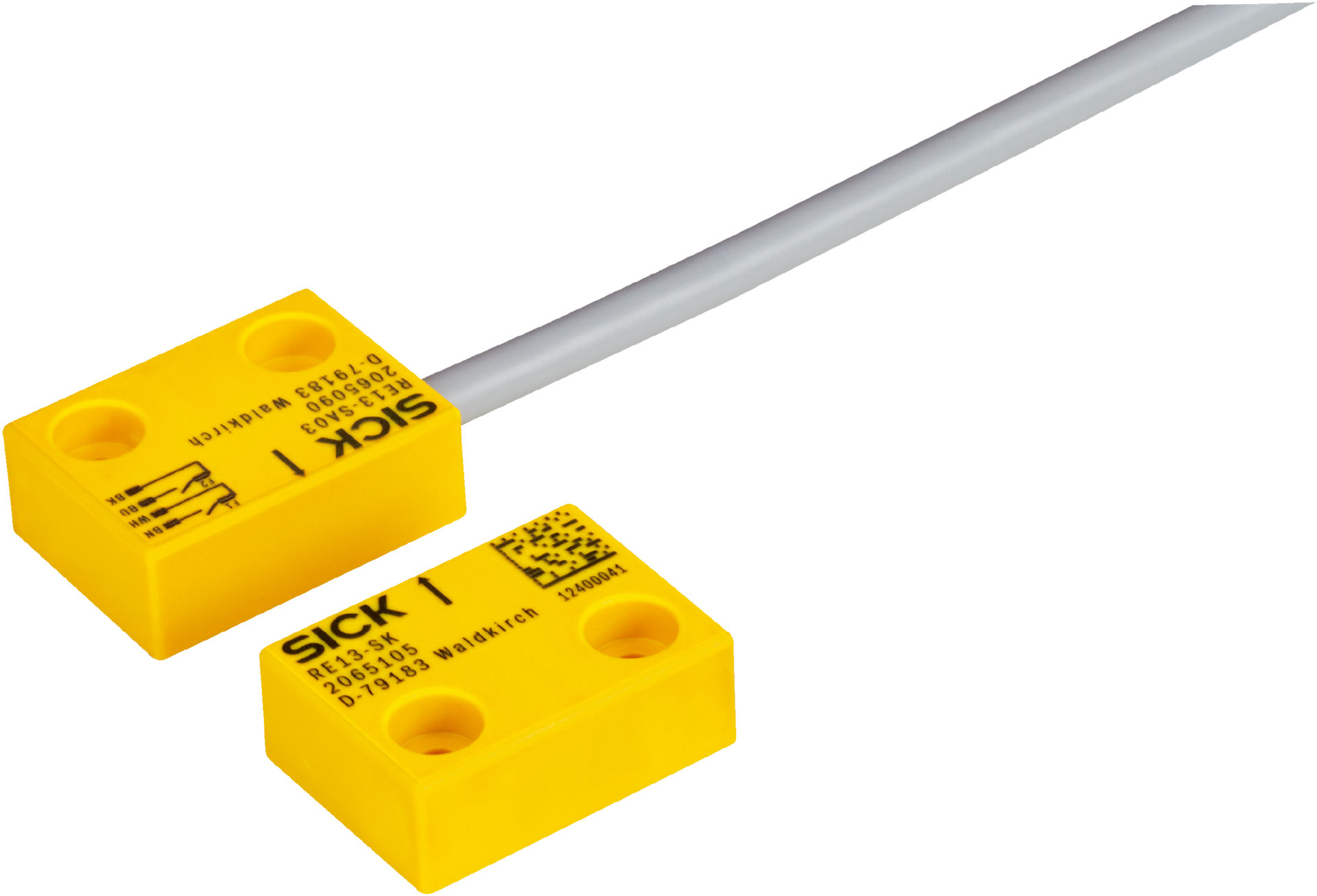

Magnetic Safety Sensor RE13-SA64 | IP67 Rated | Two N/O Contacts | Rectangular Design | by SICK
The Magnetic Safety Sensor RE13-SA64 is designed for industrial safety systems, featuring two normally open contacts and an assured switch on distance of 7 mm. With its robust IP67 rated enclosure and VISTAL® housing, this sensor is perfect for machine guarding and automation applications, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor RE13-SA64, SICK Magnetic Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable with M12 male connector, 4-pin
- Cable length: 0.2 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Design: Rectangular
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: –30 °C to +60 °C
- Storage temperature range: –30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system part
- Two normally open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Safe series connection with Flexi Loop including diagnostics
- Type 4 safety rating according to EN ISO 14119
- Low actuator coding level per EN ISO 14119
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation and control systems with safety requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with reed contact output
- Complies with RoHS environmental standards
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK RE13-SA64 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
