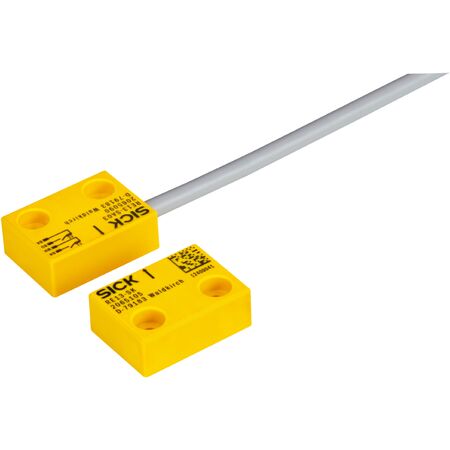

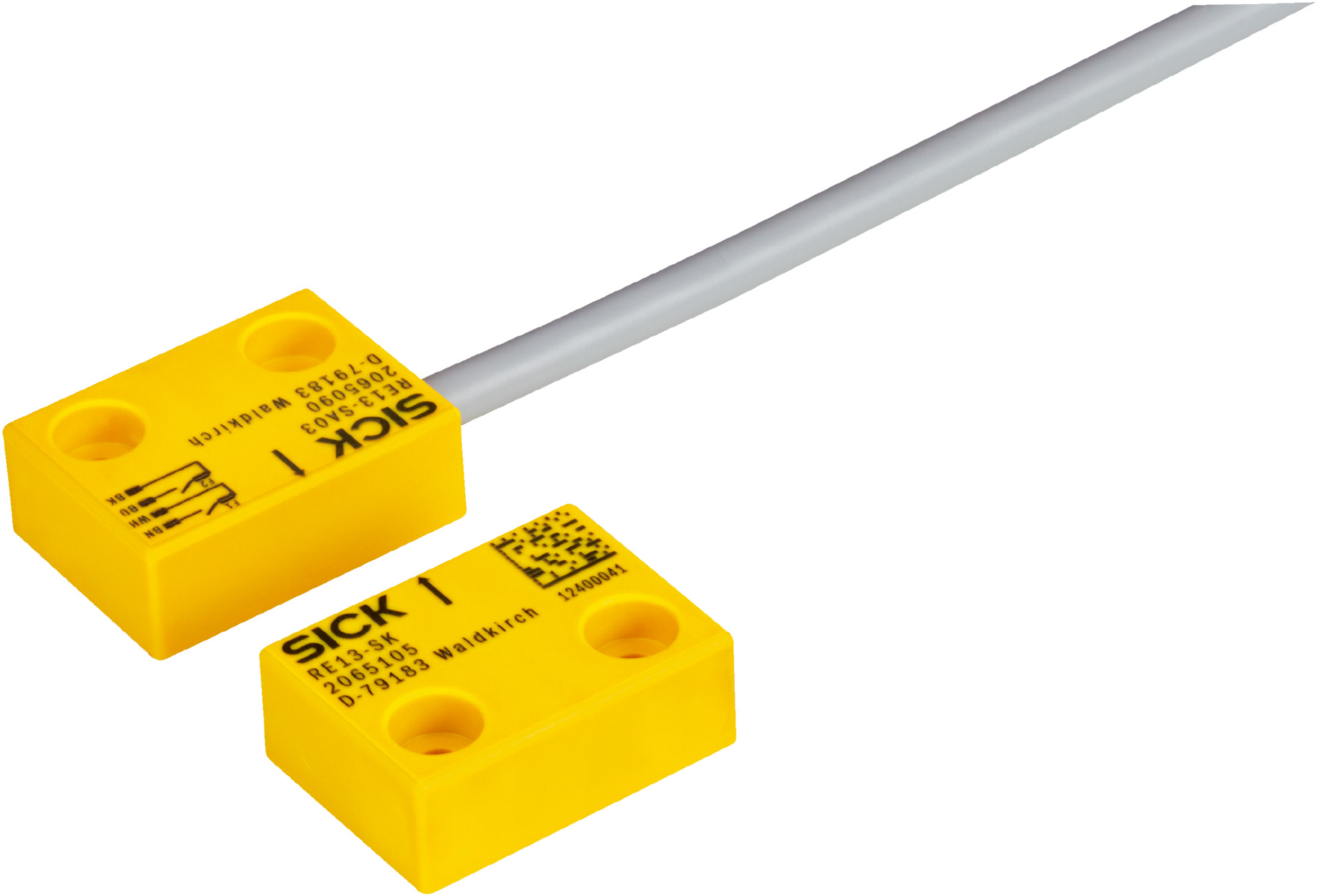

Magnetic Safety Sensor RE13-SA64S06 | IP67 Rated | 2 N/O Contacts | Rectangular Design | by SICK
The Magnetic Safety Sensor RE13-SA64S06 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and two normally open contacts. With an assured switch on distance of 7 mm and a switch off distance of 20 mm, this sensor is perfect for machine safety monitoring and automation systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable with M12 male connector, 4-pin
- Cable length: 0.5 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 12 x cable diameter
- Bend radius moving cable: > 15 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Design: Rectangular
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor with actuator system part
- 2 Normally Open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance of 10 Hz to 55 Hz
- Safe series connection with Flexi Loop including diagnostics
- Type 4 safety rating according to EN ISO 14119
- Low actuator coding level compliant with EN ISO 14119
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor integration and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring and control
- Automation systems with safety-related functions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient reed contact switching
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RE13-SA64S06 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
