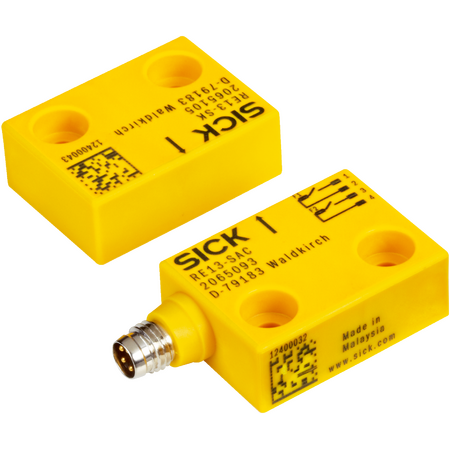

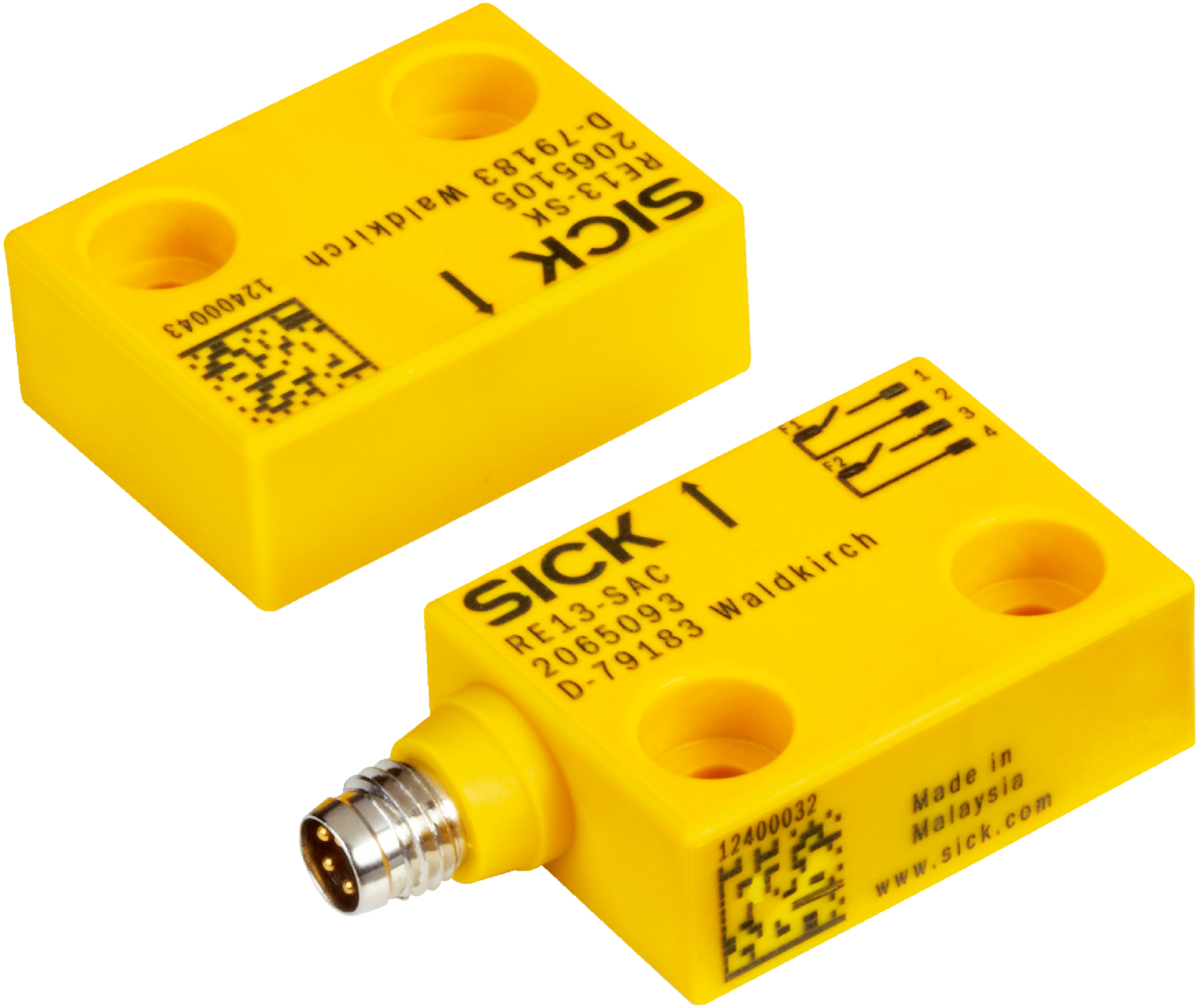

Magnetic Safety Sensor RE13-SAC | 2 Normally Open Contacts | IP67 Rated | Rectangular Design | by SICK
The Magnetic Safety Sensor RE13-SAC features a robust actuator system with 2 normally open contacts, ensuring reliable performance in industrial safety applications. With an IP67 rated enclosure, it provides excellent protection against dust and water, making it ideal for machine guarding and automation systems. Designed for environments ranging from -30°C to +60°C, this sensor is built to withstand harsh conditions while maintaining safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor RE13-SAC, Safety Sensor with Actuator, Magnetic Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (with small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Plug connector, M8, 4-pin
- Coupling nut material: Nickel-plated brass
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Design: Rectangular
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system
- 2 Normally Open (N/O) contacts
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance of 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation systems with safety monitoring needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with reed contact output
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RE13-SAC Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
