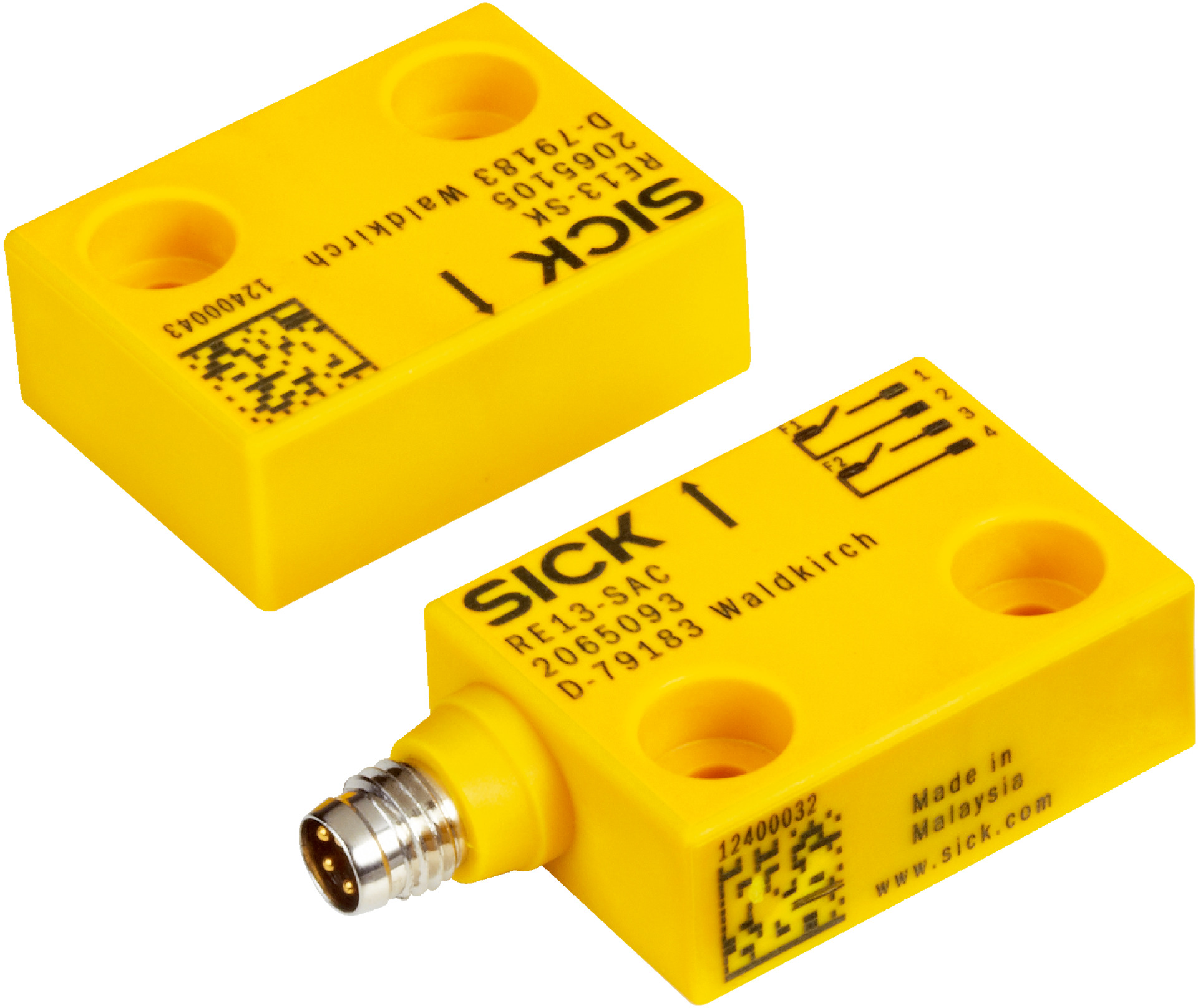

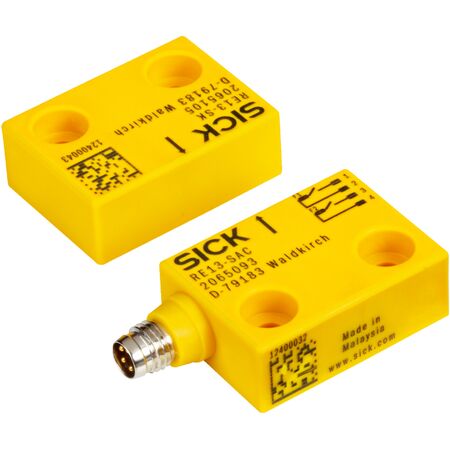

Magnetic Safety Sensor RE13-SAC | 2 N/O Contacts | IP67 Rated | Rectangular Design | by SICK
The Magnetic Safety Sensor RE13-SAC is designed for industrial automation, featuring 2 normally open contacts and an assured switch on distance of 7 mm. With a robust IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety-related machine control systems and position detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 0
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (with small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Plug connector, M8, 4-pin
- Coupling nut material: Nickel-plated brass
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Design: Rectangular
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system part
- 2 Normally Open (N/O) contacts
- Assured switch on distance (Sao) of 7 mm
- Assured switch off distance (Sar) of 20 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
- Plug connector M8, 4-pin with nickel-plated brass coupling nut
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with relevant safety standards.
Applications
- Industrial automation for position detection
- Safety-related machine control systems
- Magnetic sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with reed contact output
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RE13-SAC Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
