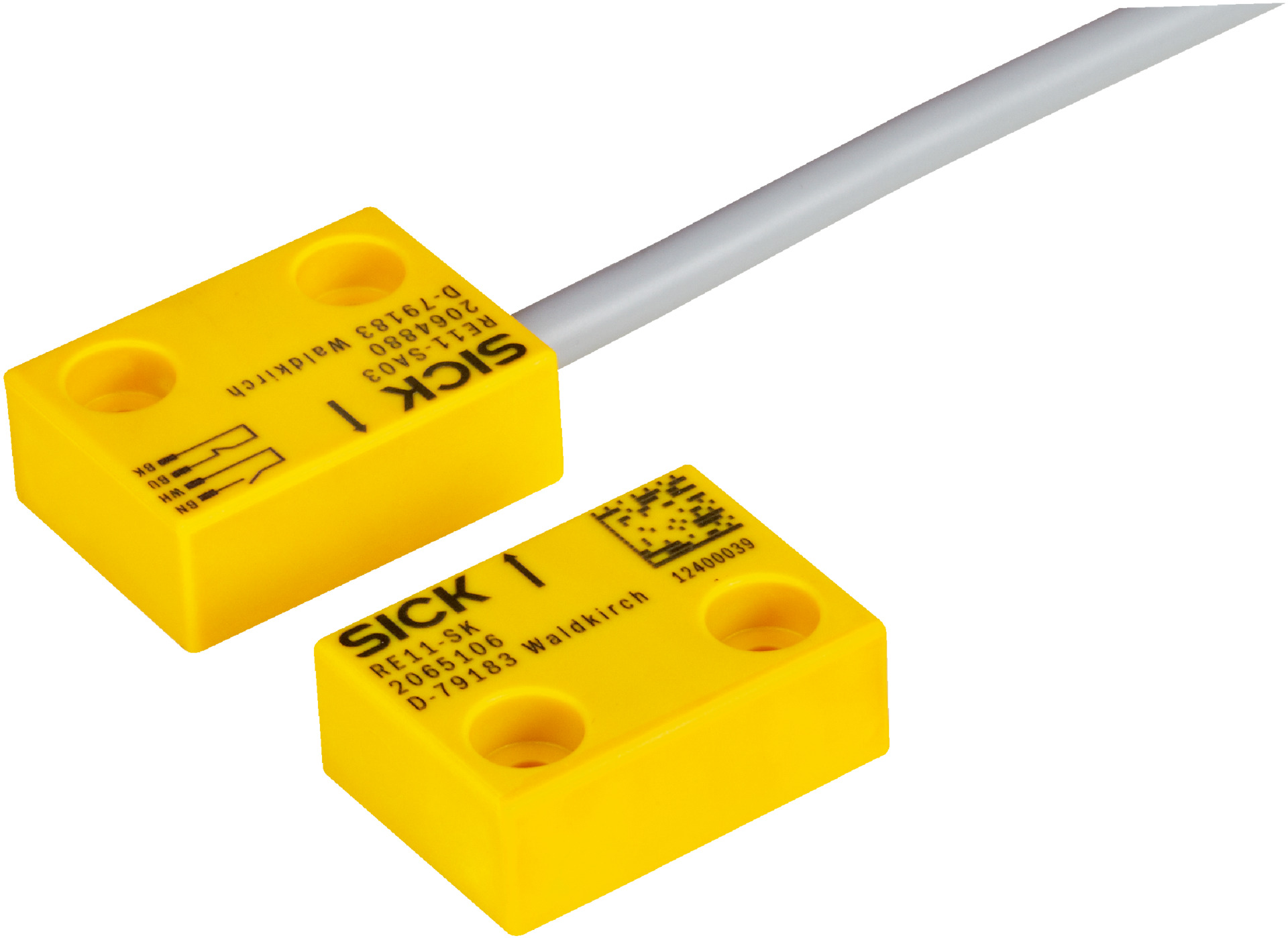

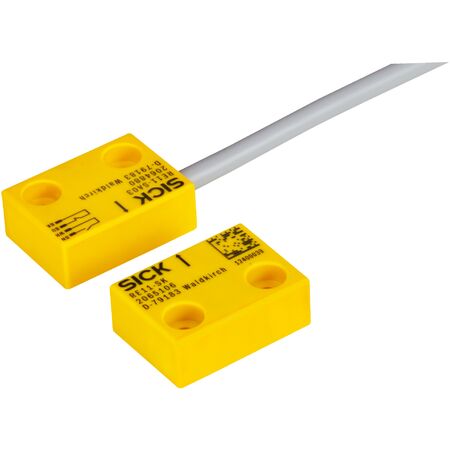

Magnetic Safety Sensor RE15-SA03 | IP67 Rated | 1 N/O & 1 N/C Contacts | by SICK
The Magnetic Safety Sensor RE15-SA03 is designed for industrial automation, featuring a robust magnetic sensor principle with 1 Normally Open and 1 Normally Closed contact. With an IP67 rated enclosure, it ensures reliable operation in harsh environments, making it ideal for safety-related machine monitoring and position detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Contacts: 1 N/O, 1 N/C, 1 signaling contact
- Assured switch on distance (Sao): 7 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable, 3 m length, 5.8 mm diameter, PVC material, copper conductor
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +60°C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.2 kg
Key Features
- Magnetic sensor principle with actuator
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
- Cable connection with 3 m PVC cable and copper conductor
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with relevant safety standards.
Applications
- Industrial automation for position detection
- Safety-related machine monitoring
- Magnetic sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with reed contact technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RE15-SA03 Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
