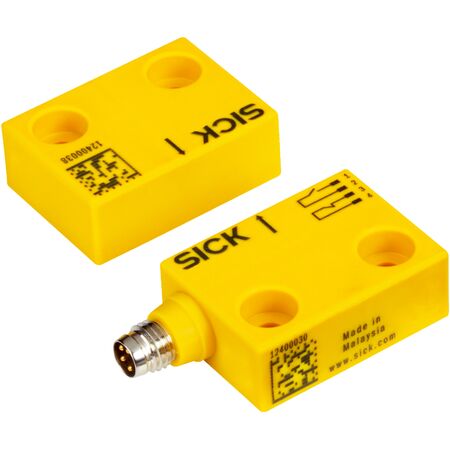

Magnetic Safety Sensor RE15-SAC | IP67 Rated | 7mm On & 20mm Off Distance | by SICK
The Magnetic Safety Sensor RE15-SAC is designed for reliable position detection in industrial automation. With a robust IP67 enclosure, it operates effectively in harsh environments, ensuring safety in machinery monitoring. Featuring a 7mm assured switch on distance and 20mm off distance, this sensor is perfect for applications requiring precise magnetic sensing and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: Sensor with actuator
- Sensor principle: Magnetic
- N/O contacts: 1
- N/C contacts: 1
- Signaling contacts: 0
- Assured switch on distance Sao: 7 mm
- Assured switch off distance Sar: 20 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (with small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in the event of a fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring (with diagnostics)
- Connection type: Plug connector, M8, 4-pin
- Coupling nut material: Nickel-plated brass
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Design: Rectangular
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –30 °C to +60 °C
- Storage temperature: –30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 36mm x 13mm x 26mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system part
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance of 7 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
- Plug connector M8, 4-pin with nickel-plated brass coupling nut
- Reed contact output type with switching voltage ≤ 30 V DC and current ≤ 100 mA
- Type 4 safety rating according to EN ISO 14119 with low actuator coding level
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with occupational health and safety standards.
Applications
- Industrial automation for position detection
- Safety-related monitoring in machinery
- Magnetic sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient reed contact switching
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RE15-SAC Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
