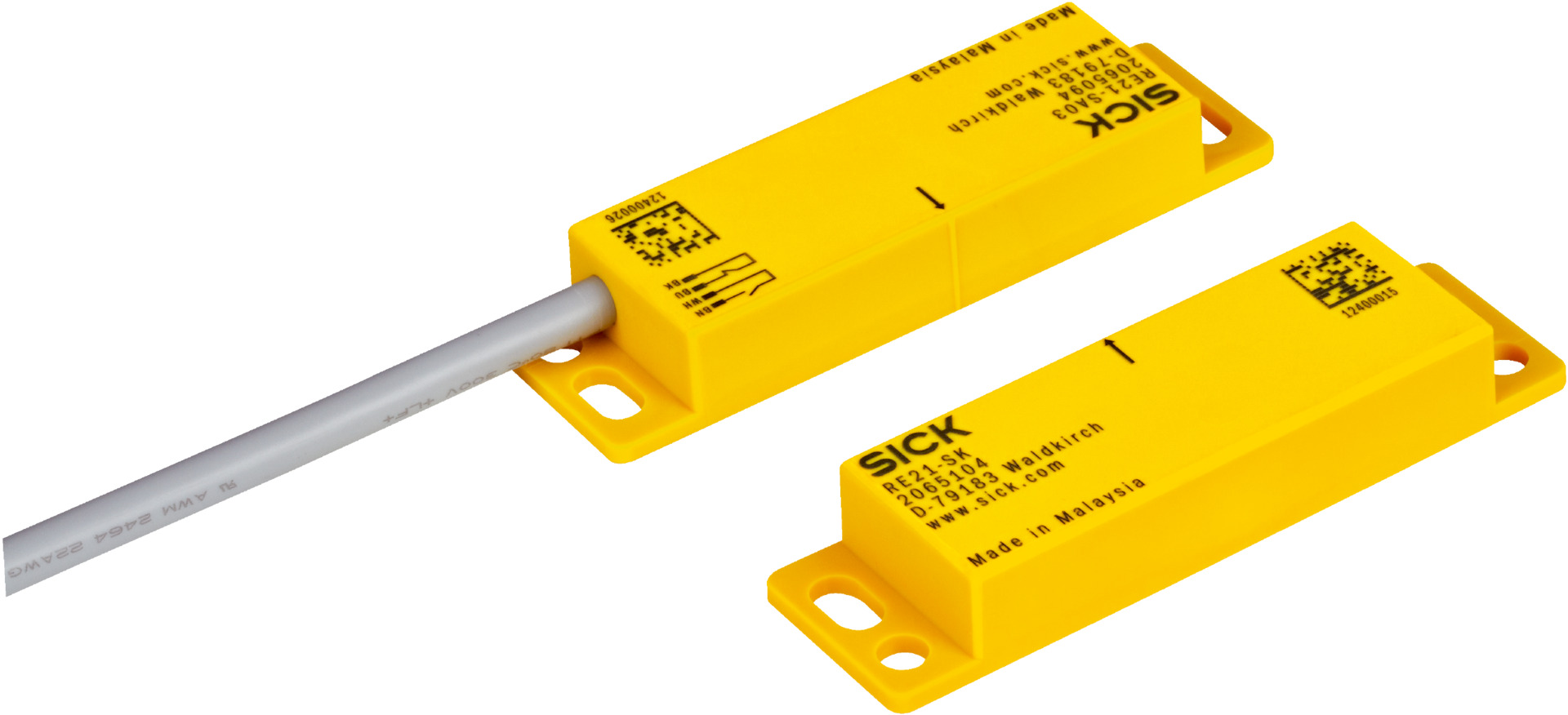

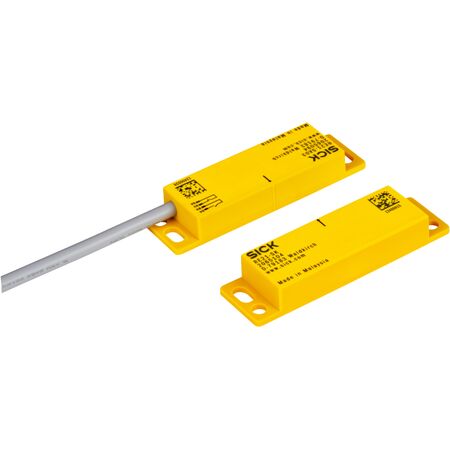

Magnetic Safety Sensor RE21-SA05 | IP67 Rated | 1 N/O & 1 N/C Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE21-SA05 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and a magnetic sensor principle. With 1 Normally Open and 1 Normally Closed contact, it ensures reliable machine safety monitoring and automation control. Built for durability and high resistance to vibration and shock, this sensor is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Contacts: 1 N/O and 1 N/C
- Assured switch on distance (Sao): 6 mm
- Assured switch off distance (Sar): 31 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 400 mA
- Cable length: 5 m, PVC cable with copper conductor
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Housing material: VISTAL®
- Display elements: LEDs
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor principle with actuator
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance of 6 mm and switch off distance of 31 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- LED display elements for status indication
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with occupational health and safety standards.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring
- Automation and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with reed contact technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RE21-SA05 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
