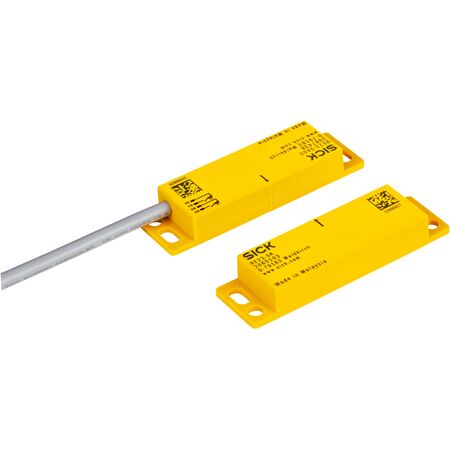

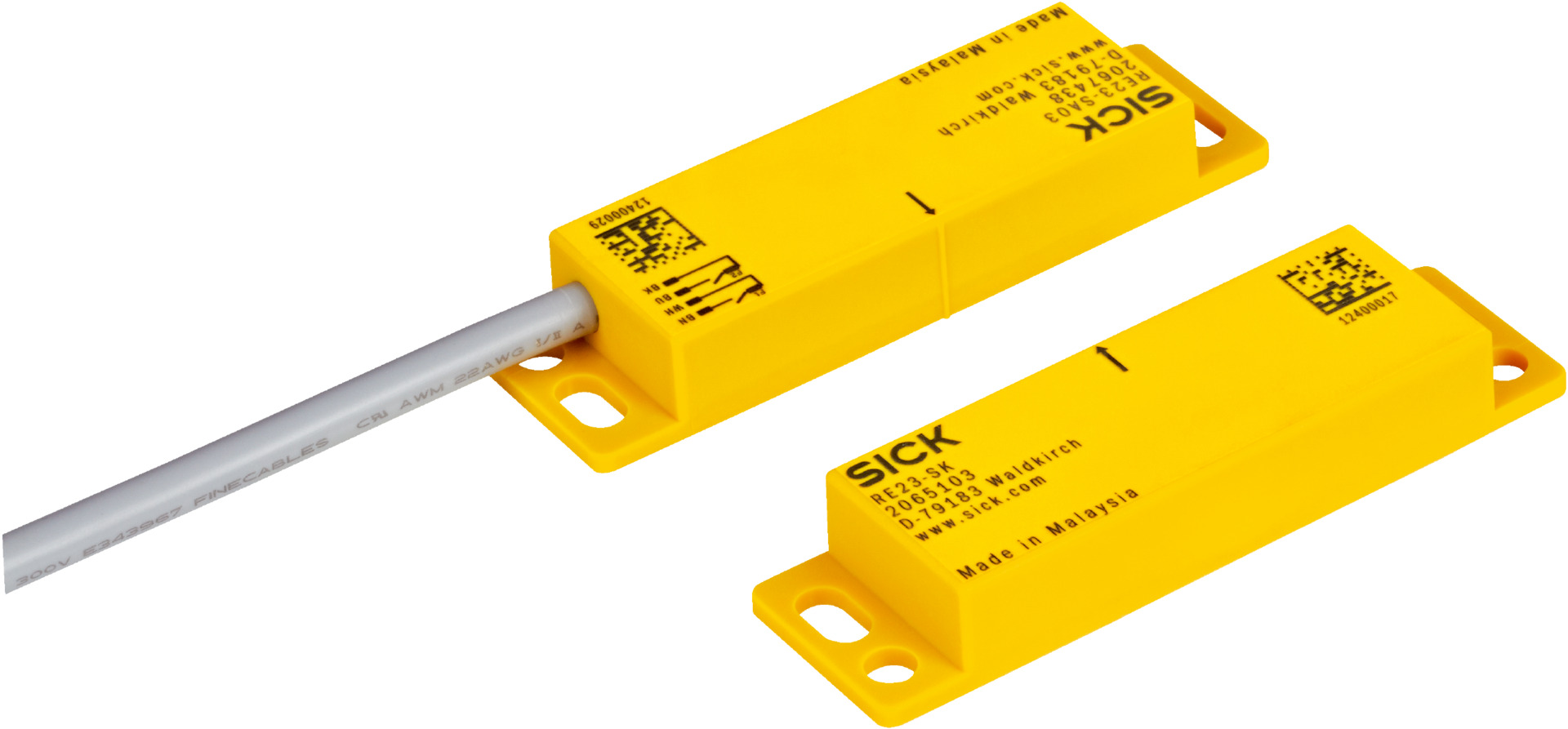

Magnetic Safety Sensor RE23-SA05 | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE23-SA05 is designed for reliable position detection in industrial automation. Featuring a robust IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. With 2 normally open contacts and a switch on distance of 9 mm, this sensor is perfect for safety-related machine control systems, providing high vibration and shock resistance for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 22 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable with 5 m length, 5.8 mm diameter, PVC material
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 12 x cable diameter
- Bend radius moving cable: > 15 x cable diameter
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: -30 °C to +60 °C
- Storage temperature range: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts
- Assured switch on distance of 9 mm and switch off distance of 22 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- LED display elements for status indication
- High vibration and shock resistance
- Cable connection with 5 m PVC cable and copper conductor
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with occupational health and safety standards.
Applications
- Industrial automation for position detection
- Safety-related machine control systems
- Magnetic sensing in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient reed contact switching
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RE23-SA05 Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
