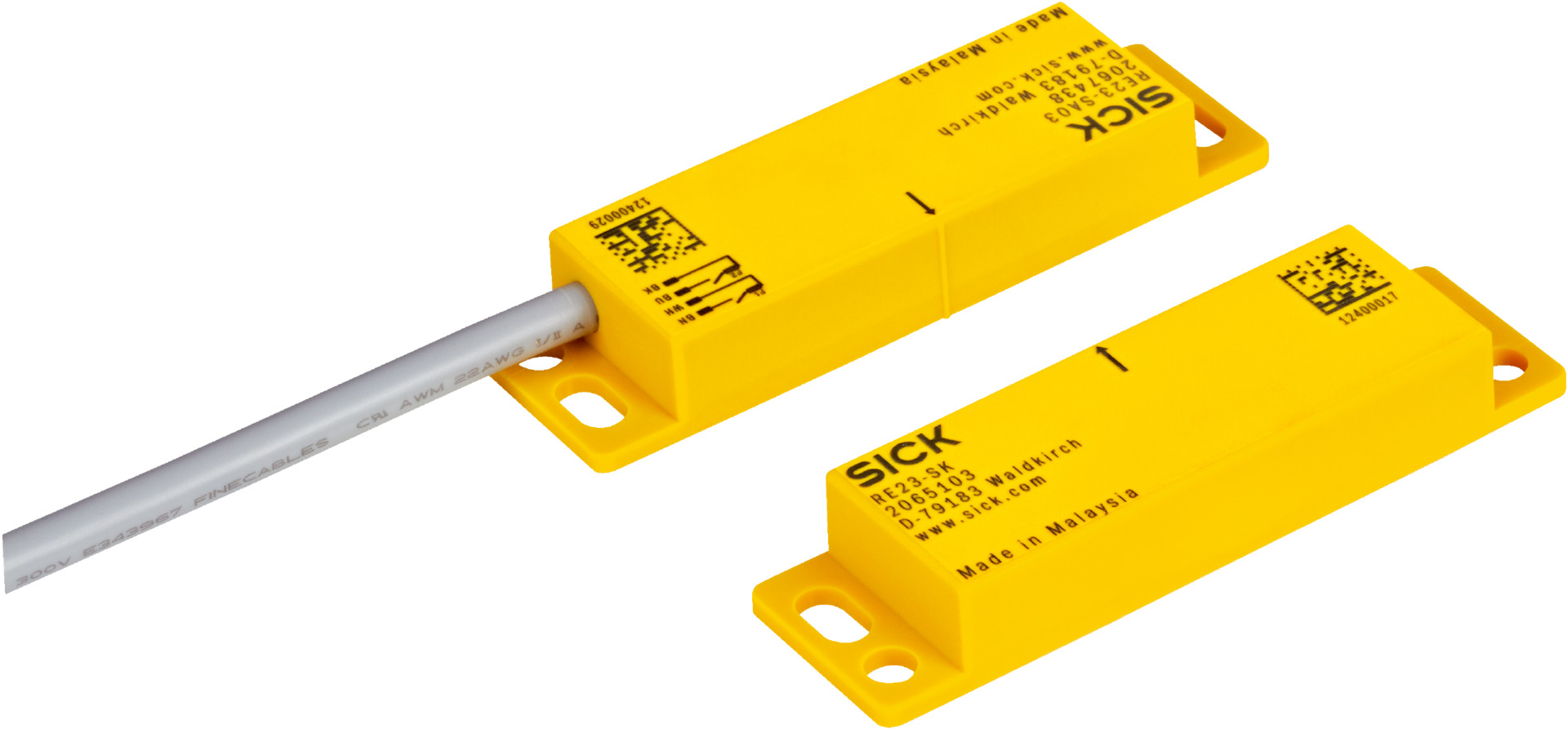

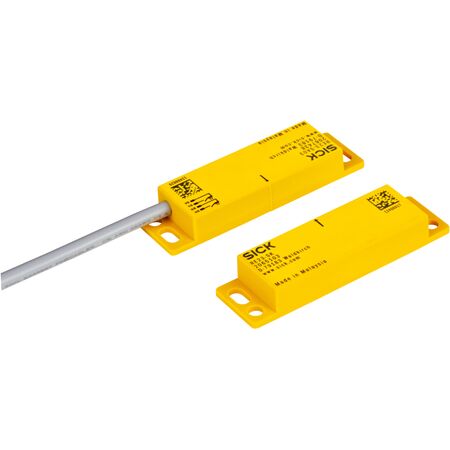

Magnetic Safety Sensor RE23-SA64 | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE23-SA64 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and 2 normally open contacts. With a reliable assured switch on distance of 9 mm and off distance of 22 mm, this sensor is perfect for machine safety monitoring and automation systems, ensuring compliance with Type 4 safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 22 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable with M12 male connector, 4-pin
- Cable length: 0.2 m
- Cable diameter: 5.8 mm
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Nickel-plated brass
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: –30 °C to +60 °C
- Storage temperature range: –30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Safety type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator
- 2 Normally Open (N/O) contacts
- Assured switch on distance of 9 mm and switch off distance of 22 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- LED display elements for status indication
- Safe series connection with Flexi Loop and diagnostics
- Type 4 safety according to EN ISO 14119
- Low actuator coding level
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring and control
- Automation systems with safety-related functions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces environmental damage and extends product life
- Low power consumption with reed contact output
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RE23-SA64 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
