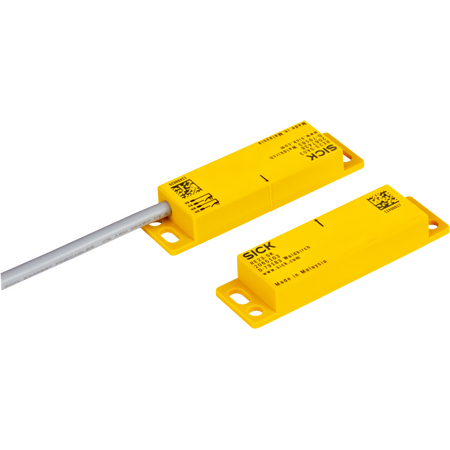

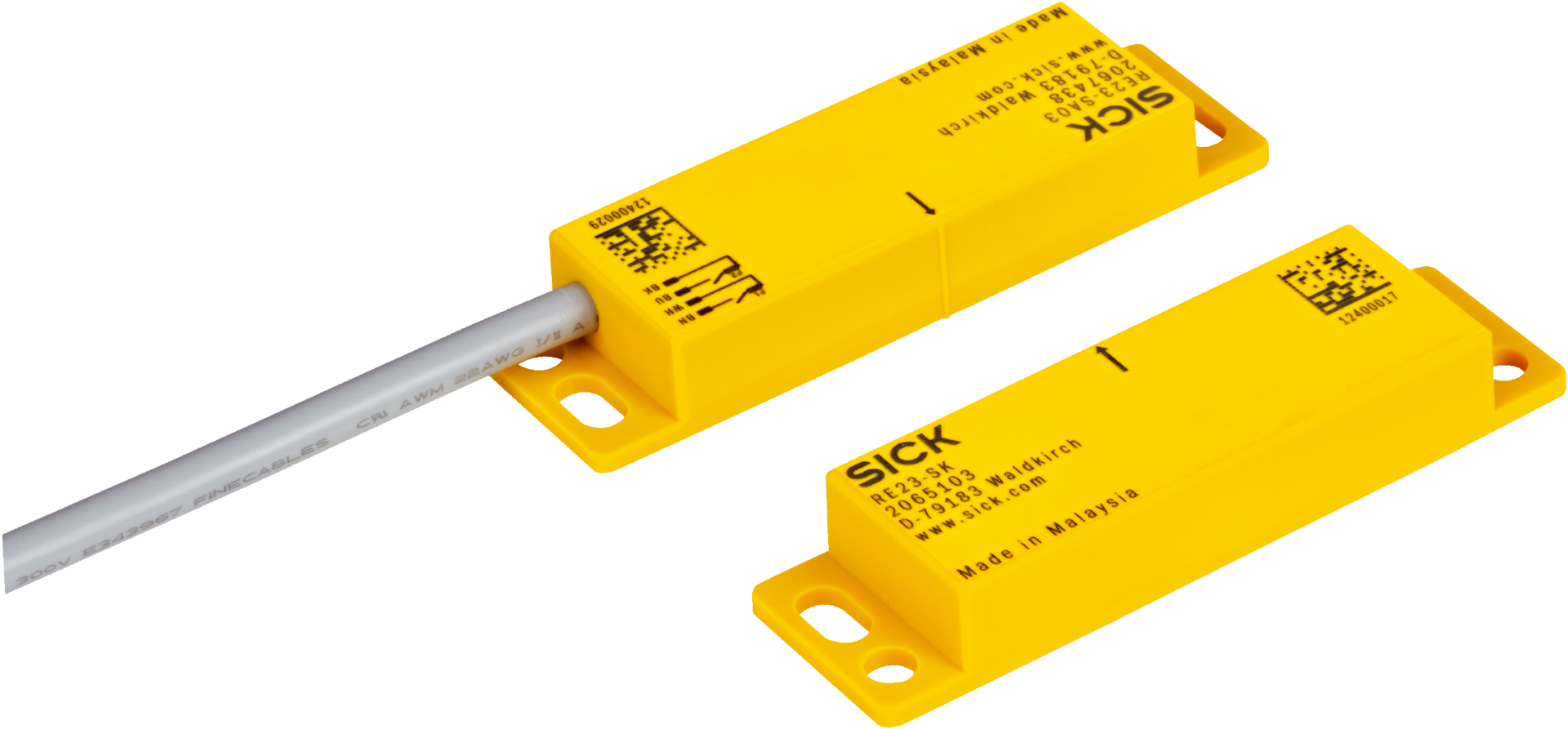

Magnetic Safety Sensor RE23-SA64 | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE23-SA64 is designed for industrial safety systems, featuring a robust IP67 rated enclosure and two normally open contacts for reliable operation. With a switch on distance of 9 mm and a switch off distance of 22 mm, this sensor is perfect for machine guarding and automation applications, ensuring safety and compliance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor, Magnetic Safety Switch, RE23-SA64 Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 22 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable with M12 male connector, 4-pin
- Cable length: 0.2 m
- Cable diameter: 5.8 mm
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: –30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system
- Two normally open (N/O) contacts
- Assured switch on distance of 9 mm and switch off distance of 22 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- LED display elements for status indication
- Safe series connection with Flexi Loop including diagnostics
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and relevant safety standards to ensure proper integration and compliance.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation and control systems with safety requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste through long service life
- Energy-efficient reed contact switching minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RE23-SA64 Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring reliable magnetic safety sensing.
