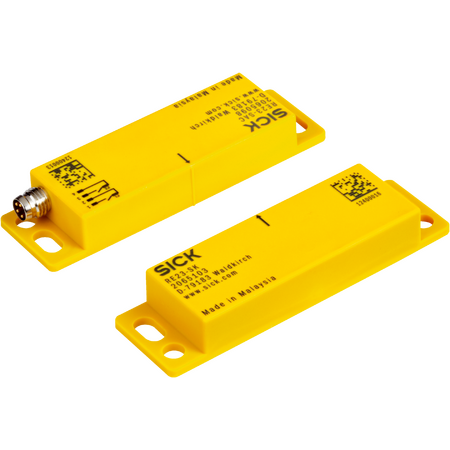

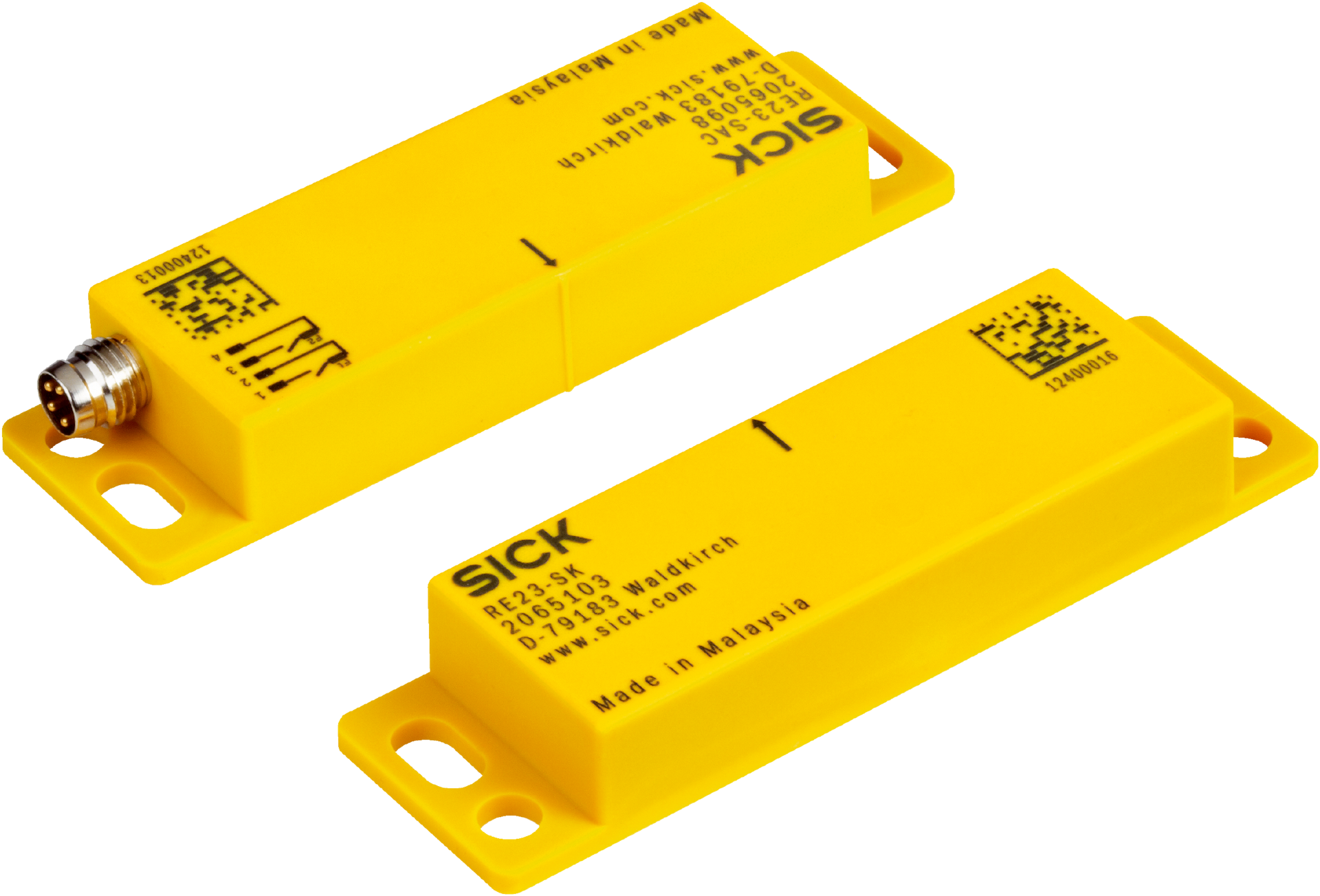

Magnetic Safety Sensor RE23-SAC | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE23-SAC is designed for industrial safety systems, featuring a robust IP67 rated enclosure and 2 normally open contacts. With a reliable assured switch on distance of 9 mm and a switch off distance of 22 mm, this sensor is perfect for machine guarding and automation applications, ensuring safety and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor, Magnetic Safety Switch, RE23-SAC Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 22 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Plug connector, M8, 4-pin
- Coupling nut material: Nickel-plated brass
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: –30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Safety type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system
- 2 Normally Open (N/O) contacts
- Assured switch on distance (Sao) of 9 mm
- Assured switch off distance (Sar) of 22 mm
- Rectangular design with VISTAL® housing
- IP67 rated enclosure for dust and water protection
- LED display elements for status indication
- Safe series connection with Flexi Loop and diagnostics
- Reed contact output type with switching voltage ≤ 30 V DC and current ≤ 100 mA
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor integration and electrical safety standards.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation and control systems with safety requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient reed contact switching
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK RE23-SAC Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
