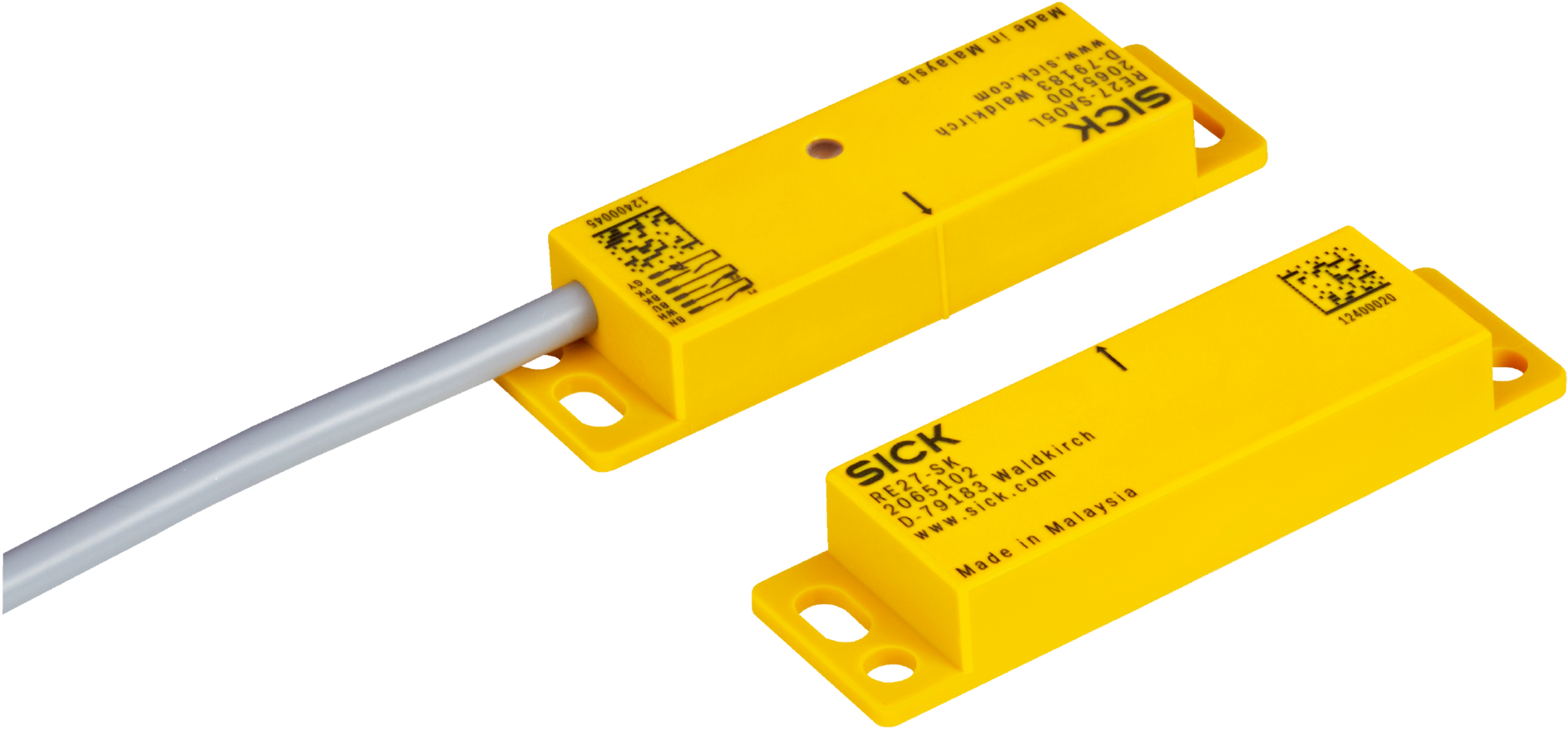

Magnetic Safety Sensor RE27-SA05L | IP67 Rated | 2 N/O Contacts & LED Display | by SICK
The Magnetic Safety Sensor RE27-SA05L is designed for industrial safety systems, featuring a robust IP67 enclosure and a reliable actuator system. With two normally open contacts and an assured switch on distance of 9 mm, it ensures optimal performance in machine guarding and automation applications. Built for durability and compliance with safety standards, this sensor is perfect for environments requiring stringent safety measures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor RE27-SA05L, SICK Magnetic Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 1
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 20 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (with small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable
- Cable length: 5 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Display elements: LEDs
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Design: Rectangular
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor with actuator system
- Two normally open (N/O) contacts and one signaling contact
- Assured switch on distance of 9 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- LED status display for operational feedback
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with safety standards.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation systems with safety monitoring needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient reed contact output minimizes power consumption
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK RE27-SA05L Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
