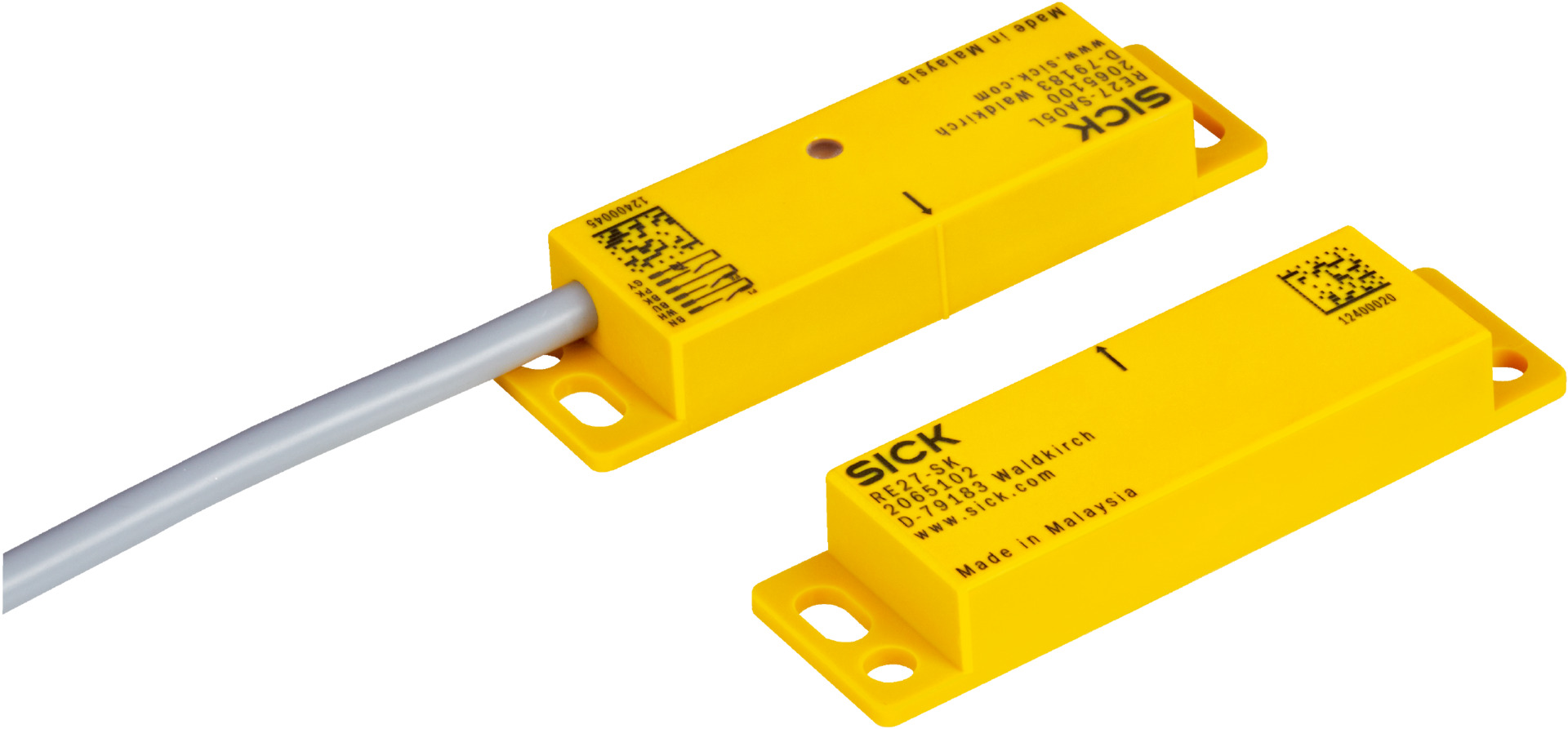

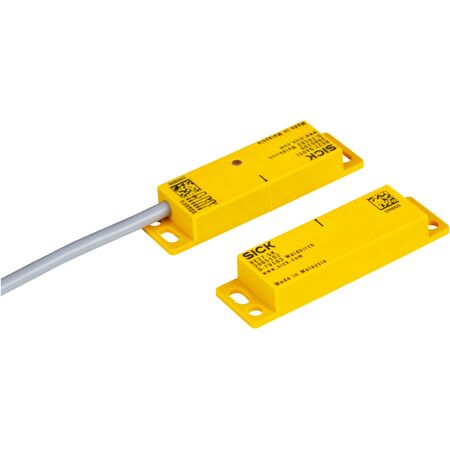

Magnetic Safety Sensor RE27-SA05L | IP67 Rated | 2 N/O Contacts & LED Display | by SICK
The Magnetic Safety Sensor RE27-SA05L features a robust design with 2 normally open contacts and an assured switch on distance of 9 mm, making it ideal for industrial safety systems and machine monitoring. With an IP67 rating for dust and water protection, this sensor operates effectively in harsh environments, ensuring reliable performance in automation and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 1
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable
- Cable length: 5 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Display elements: LEDs
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +60°C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.3 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts and 1 signaling contact
- Assured switch on distance of 9 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- LED status display for operational feedback
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- High vibration and shock resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration with safety-related logic units.
Applications
- Industrial safety systems requiring magnetic sensors
- Machine safety monitoring
- Automation and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient reed contact switching
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK RE27-SA05L Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
