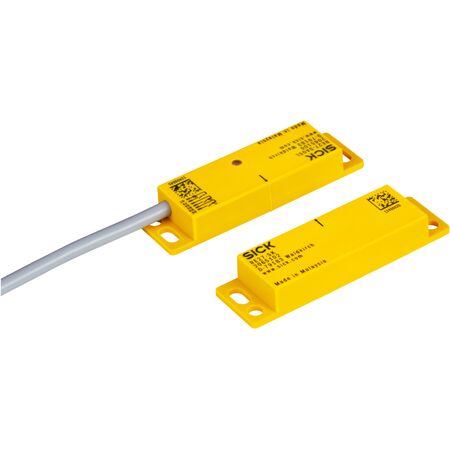

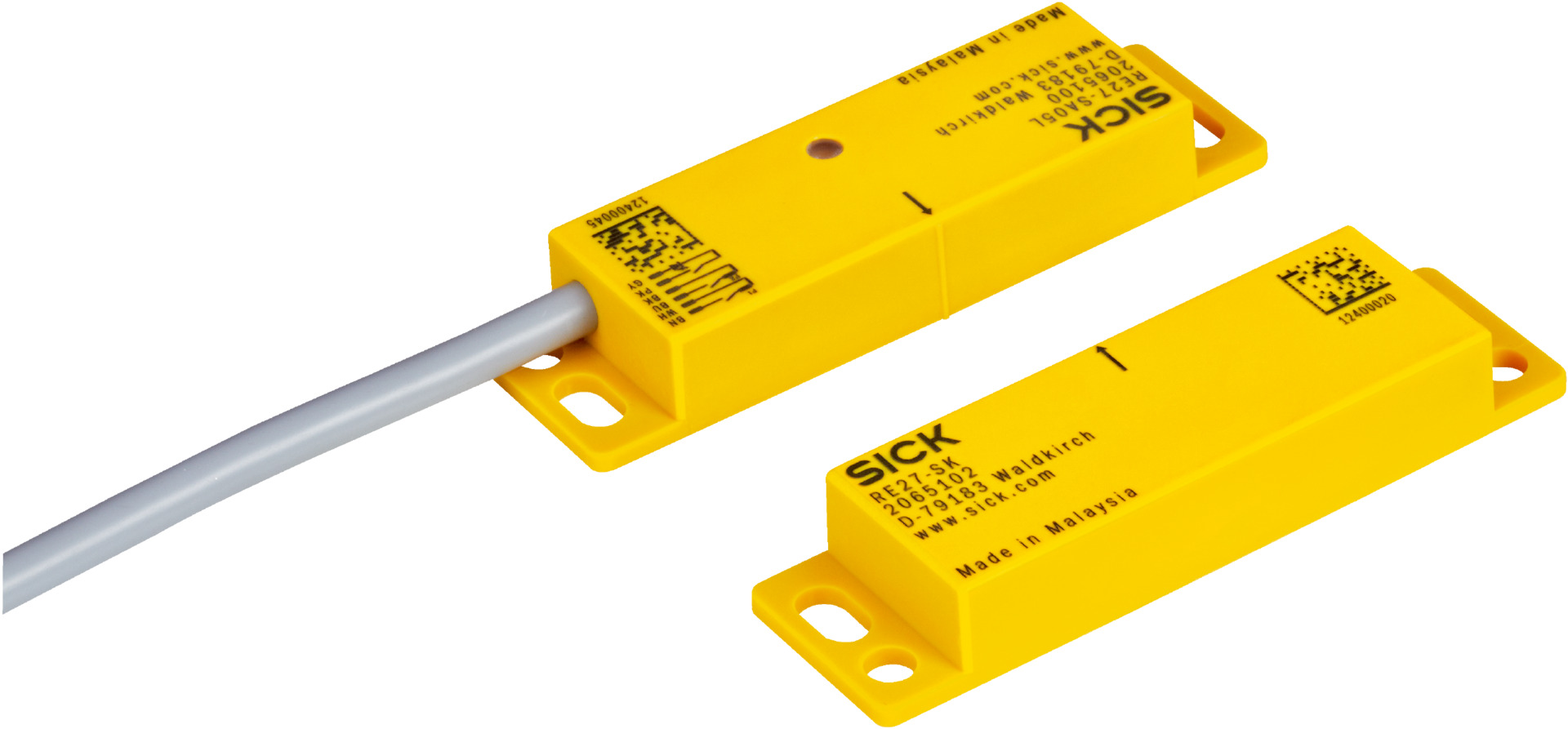

Magnetic Safety Sensor RE27-SA10L | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE27-SA10L is designed for reliable position detection in industrial automation. Featuring a robust IP67 rated enclosure, it operates effectively in harsh environments with a temperature range of -30°C to +60°C. With 2 normally open contacts and a signaling contact, this sensor ensures safety in machine control systems, making it ideal for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 1
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable, 10 m length, 5.8 mm diameter, PVC material, copper conductor
- Output type: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.5 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts and 1 signaling contact
- Assured switch on distance of 9 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- LED status display for operational feedback
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +60°C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial automation for position detection
- Safety-related machine control systems
- Magnetic sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with reed contact output
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK RE27-SA10L Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
