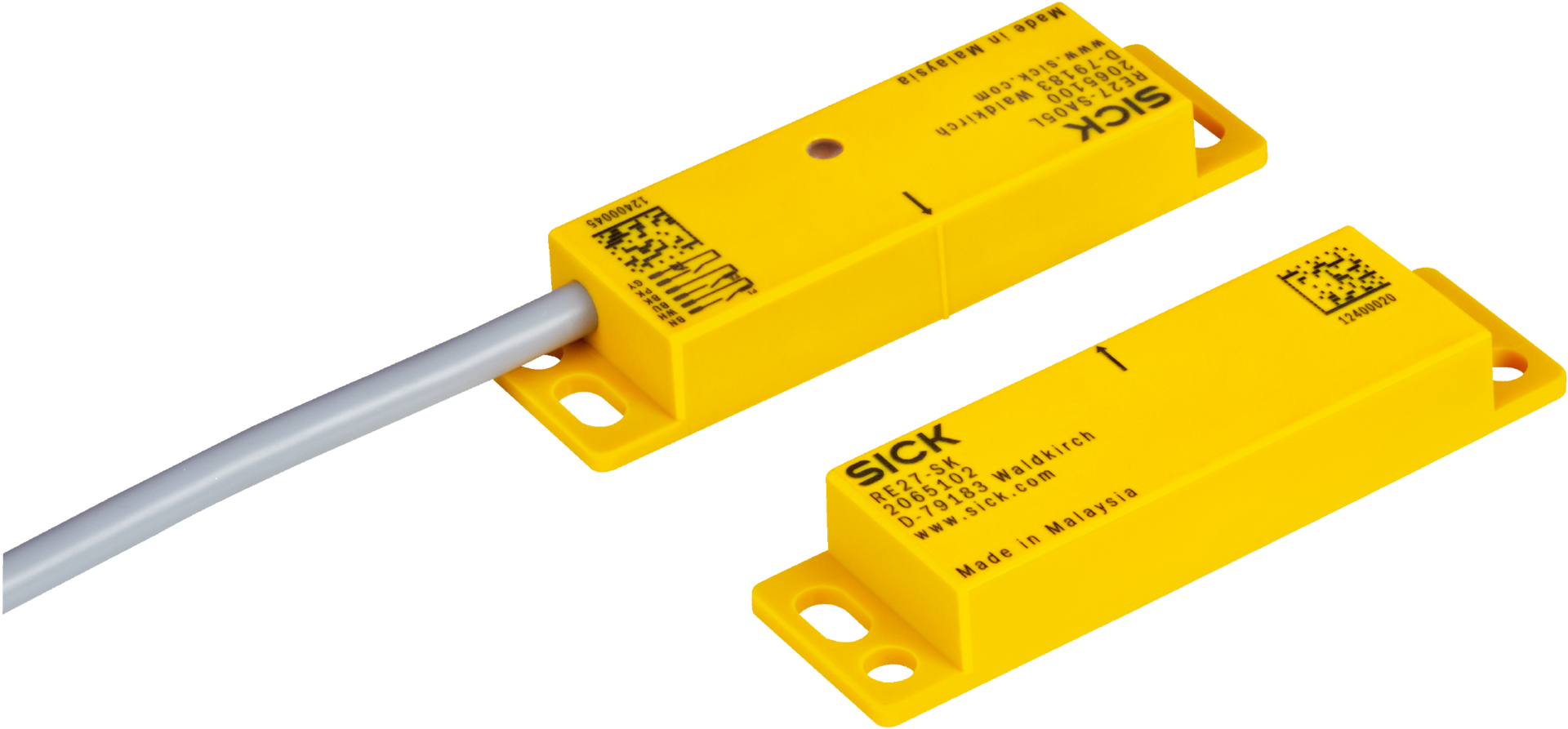

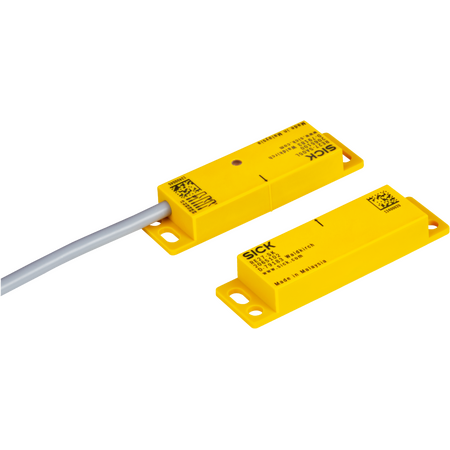

Magnetic Safety Sensor RE27-SA20L | IP67 Rated | 2 N/O Contacts & LED Status Display | by SICK

BRAND: SICK
SKU: 1059512
$287.10 List price: $360.90
+ −
30 Days Return Electricians Unlock Trade Access
The Magnetic Safety Sensor RE27-SA20L is designed for industrial safety systems, featuring a robust IP67 rated enclosure and a reliable actuator system. With 2 normally open contacts and an assured switch on distance of 9 mm, it’s perfect for machine guarding and automation applications, ensuring safety and compliance in demanding environments.

Alternatively Known As: Magnetic Safety Sensor RE27-SA20L, SICK Magnetic Sensor, Safety Interlock Sensor

Technical Specifications
  • Sensor principle: Magnetic
  • Number of N/O contacts: 2
  • Number of N/C contacts: 0
  • Signaling contacts: 1
  • Assured switch on distance (Sao): 9 mm
  • Assured switch off distance (Sar): 20 mm
  • Actuation directions: 5
  • B10d parameter: 2 x 10^7 switching cycles (with small load)
  • Type: Type 4 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
  • Connection type: Cable
  • Cable length: 20 m
  • Cable diameter: 5.8 mm
  • Conductor cross section: 0.25 mm²
  • Cable material: PVC
  • Conductor material: Copper
  • Display elements: LEDs with status display
  • Type of output: Reed contacts
  • Switching voltage: ≤ 30 V DC
  • Switching current: ≤ 100 mA (≤ 10 mA for certain conditions)
  • Housing material: VISTAL®
  • Enclosure rating: IP67 (IEC 60529)
  • Operating temperature: -30°C to +60°C
  • Storage temperature: -30°C to +60°C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
  • Shock resistance: 30 g, 11 ms (EN 60947-5-3)
  • Dimensions (H x L x W): 88mm x 13mm x 25mm
  • Weight: 1 kg
Key Features
  • Magnetic sensor with actuator system
  • 2 Normally Open (N/O) contacts and 1 signaling contact
  • Assured switch on distance (Sao) of 9 mm and switch off distance (Sar) of 20 mm
  • Rectangular design with VISTAL® housing material
  • LED status display for operational feedback
  • IP67 rated enclosure for protection against dust and water
  • Operating temperature range from -30°C to +60°C
  • High vibration and shock resistance compliant with EN 60947-5-3
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
  • Industrial safety systems requiring magnetic safety sensors
  • Machine guarding and safety interlock applications
  • Automation and control systems with safety requirements
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient reed contact output reduces power consumption
Warranty Information

Warranty details available upon request from manufacturer or supplier.

Available Now

The SICK RE27-SA20L Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
