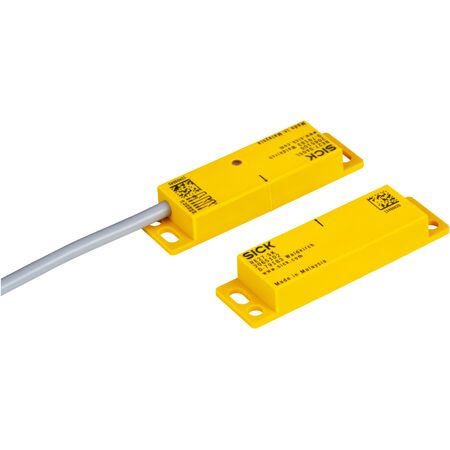

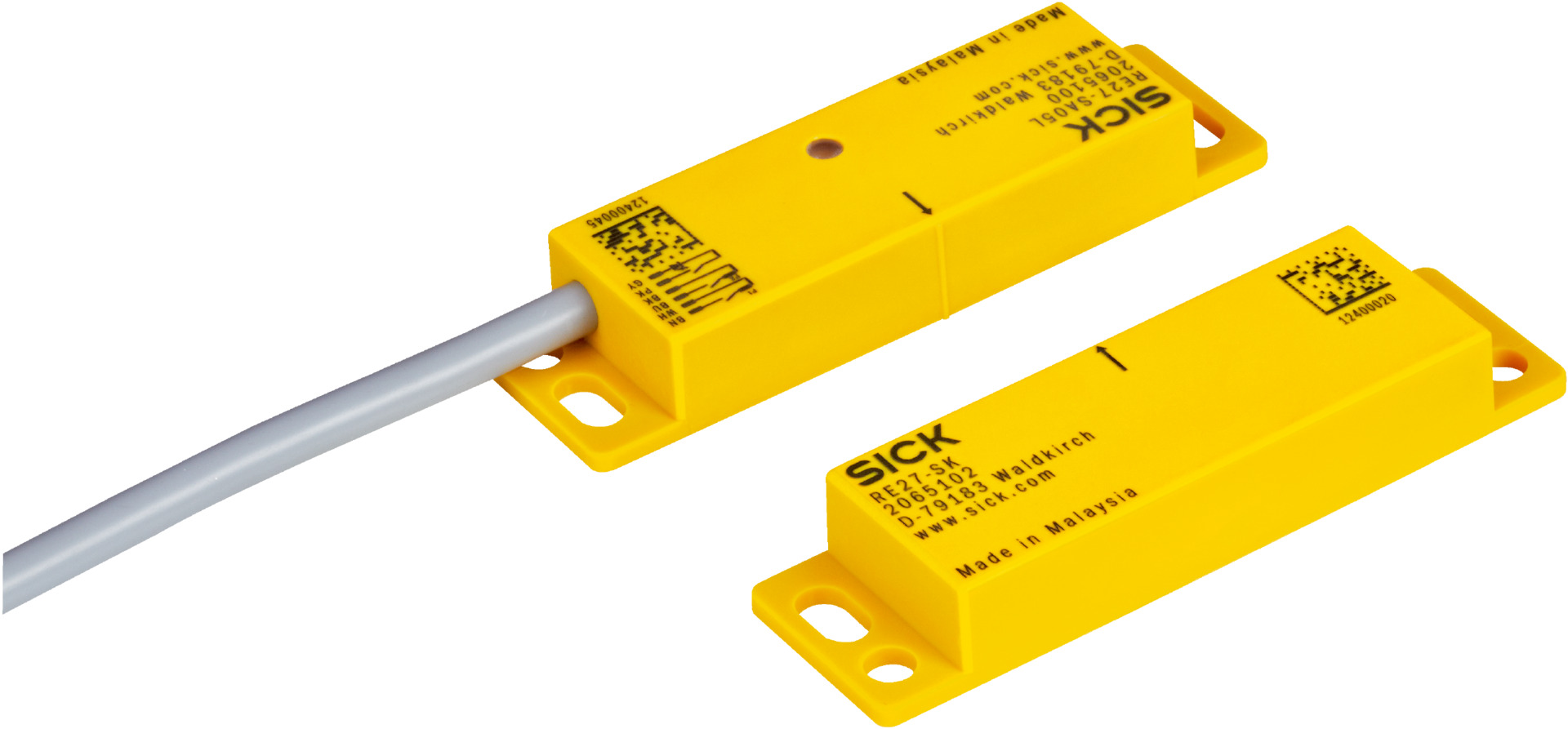

Magnetic Safety Sensor RE27-SA68L | IP67 Rated | 2 N/O Contacts | VISTAL® Housing | by SICK
The Magnetic Safety Sensor RE27-SA68L features a robust magnetic sensor principle with 2 normally open contacts and a signaling contact, making it ideal for industrial automation safety systems. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in machine guarding and safety interlocks, providing peace of mind in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 1
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA
- Connection type: Cable with M12, 8-pin plug
- Cable length: 0.2 m
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Housing material: VISTAL®
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature range: -30 °C to +60 °C
- Storage temperature range: -30 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor principle with actuator
- 2 Normally Open (N/O) contacts and 1 signaling contact
- Assured switch on distance of 9 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- LED status display for operational feedback
- IP67 rated enclosure for dust and water protection
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
- Cable with M12, 8-pin plug connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine guarding and safety interlocks
- Factory automation requiring magnetic sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces environmental damage and extends product life
- Low power consumption with efficient reed contact switching
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RE27-SA68L Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
