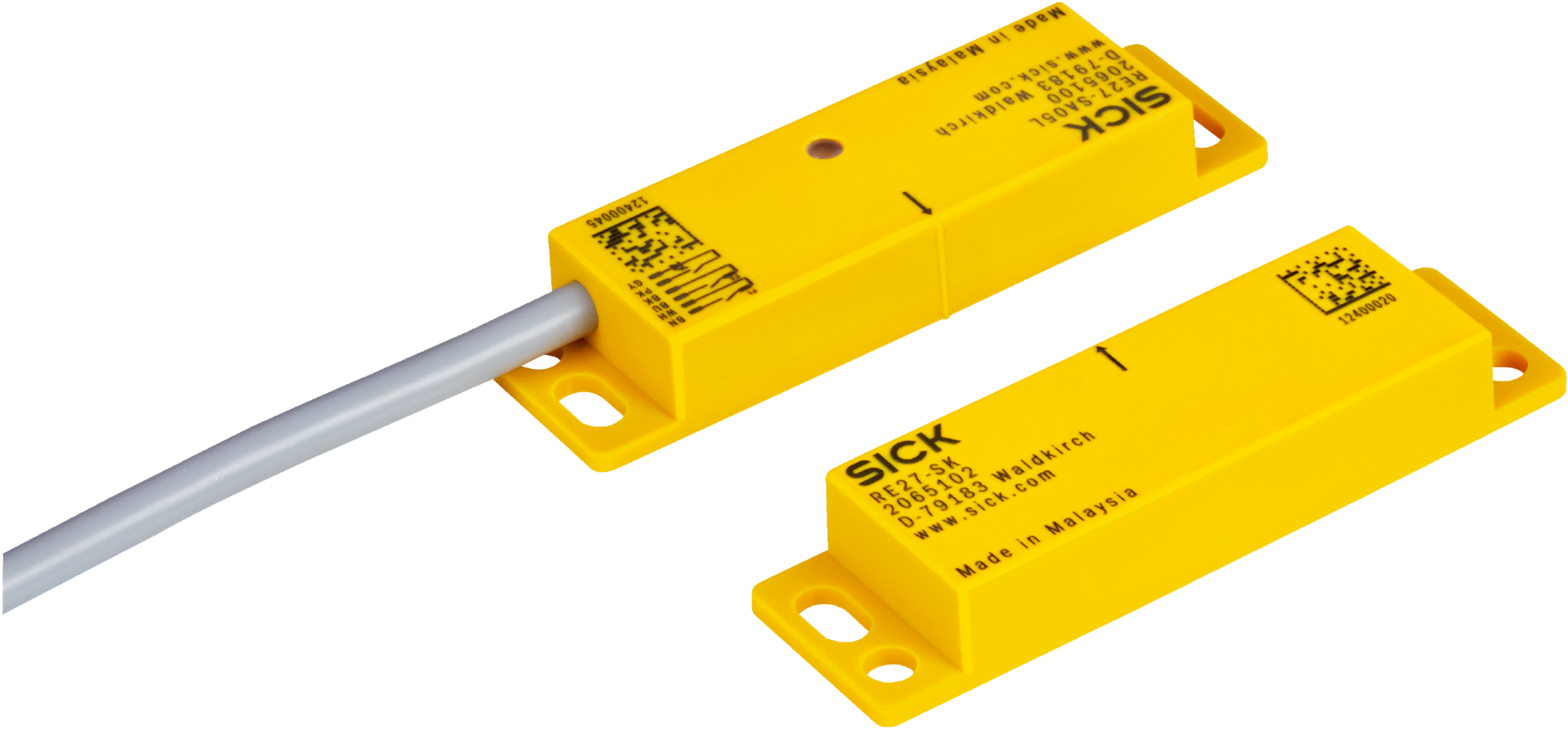

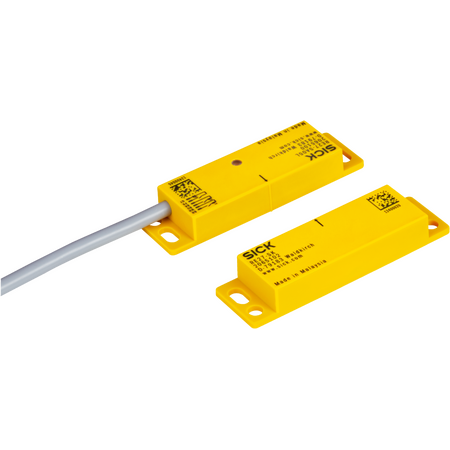

Magnetic Safety Sensor RE27-SA68L | IP67 Rated | VISTAL® Housing | 2 N/O Contacts | by SICK
The Magnetic Safety Sensor RE27-SA68L is designed for industrial safety systems, featuring a robust IP67 rated enclosure and a reliable actuator system. With two normally open contacts and an assured switch on distance of 9 mm, it’s perfect for machine guarding and automation applications, ensuring safety and compliance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor RE27-SA68L, SICK Magnetic Sensor, Safety Interlock Sensor
Technical Specifications
- Sensor principle: Magnetic
- Number of N/O contacts: 2
- Number of N/C contacts: 0
- Signaling contacts: 1
- Assured switch on distance (Sao): 9 mm
- Assured switch off distance (Sar): 20 mm
- Actuation directions: 5
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 100 mA (≤ 10 mA for certain conditions)
- Connection type: Cable with M12, 8-pin plug
- Cable length: 0.2 m
- Cable diameter: 5.8 mm
- Cable material: PVC
- Housing material: VISTAL®
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 88mm x 13mm x 25mm
- Weight: 0.1 kg
Key Features
- Magnetic sensor with actuator system
- Two normally open (N/O) contacts and one signaling contact
- Assured switch on distance of 9 mm and switch off distance of 20 mm
- Rectangular design with VISTAL® housing material
- LED status display for operational feedback
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
- Cable with M12, 8-pin plug connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring magnetic safety sensors
- Machine guarding and safety interlock applications
- Automation systems with safety monitoring needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with reed contact output
- Complies with RoHS environmental standards
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK RE27-SA68L Magnetic Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
